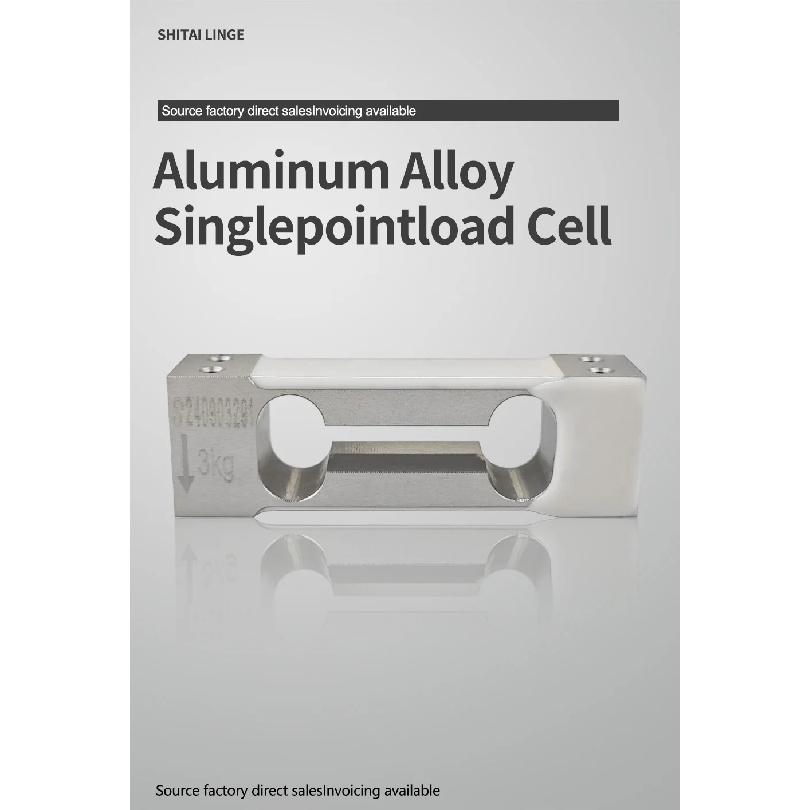

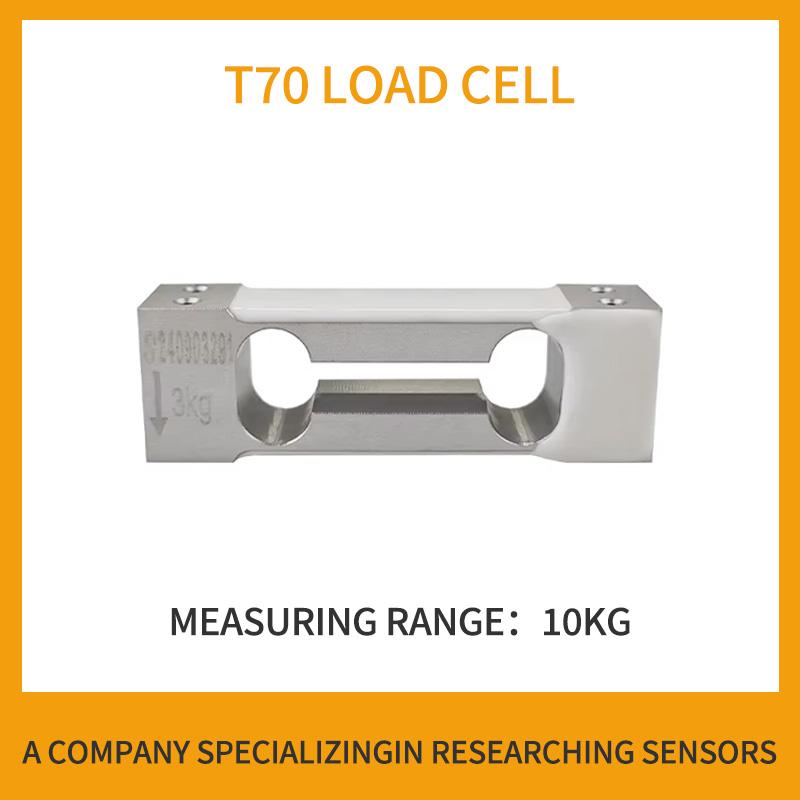

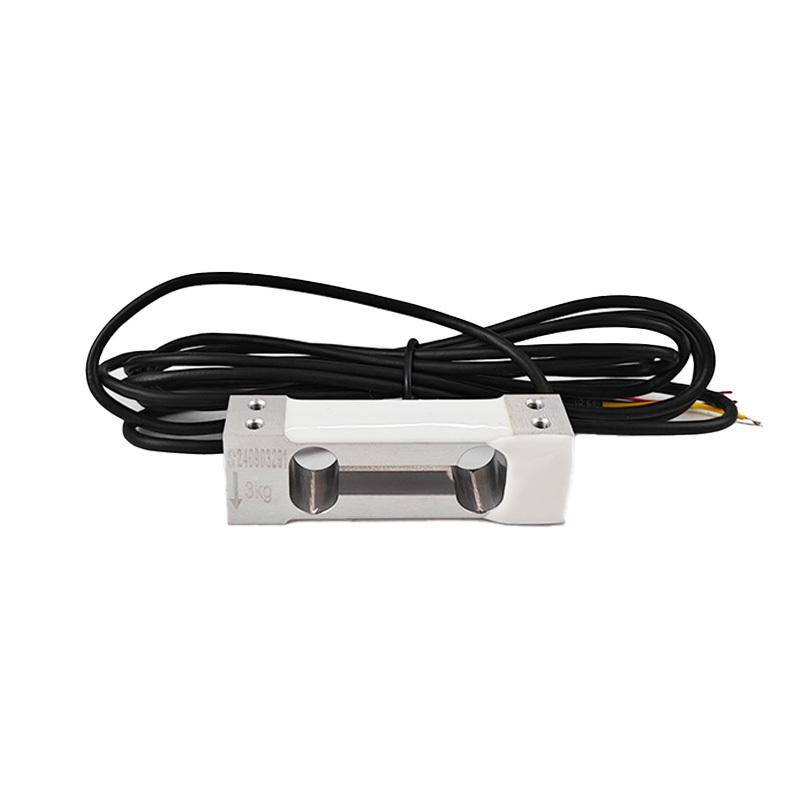

T70 Single Point Load Cell Cantilever Weighing Sensor Pressure Strain Shear Beam Cell for Kitchen Weighing Electronic Scales

High-concerned chemical：None isCustomized：Yes Theory：Resistance Sensor Material：Alloy Steel Type：Load Cell/Force Sensor Output：Analog Sensor Brand Name：LEITAI Origin：Mainland China Use：Pressure Sensor Certification：CE,RoHS Sensitivity：2.0±2.0mV/V Hysteresis：≤0.03%F.S Non-linearity：≤0.03%F.S Relative creep over 30 min：≤0.02%F.S Temp. influence on sensitivity：≤0.02%F.S/10℃ Temp. effect on zero：≤0.03%F.S/10℃ Zero output：≤1.0%FS Input resistance：405± 10Ω Output resistance：350± 3Ω Insulation resistance：≥5000 MΩ Operating temperature range：-20~+60℃ Safe Load Limited：120%F.S Reference excitation voltage：9-12V

High-concerned chemical: None isCustomized: Yes Theory: Resistance Sensor Material: Alloy Steel Type: Load Cell/Force Sensor Output: Analog Sensor Brand Name: LEITAI Origin: Mainland China Use: Pressure Sensor Certification: CE,RoHS Sensitivity: 2.0±2.0mV/V Hysteresis: ≤0.03%F.S Non-linearity: ≤0.03%F.S Relative creep over 30 min: ≤0.02%F.S Temp. influence on sensitivity: ≤0.02%F.S/10℃ Temp. effect on zero: ≤0.03%F.S/10℃ Zero output: ≤1.0%FS Input resistance: 405± 10Ω Output resistance: 350± 3Ω Insulation resistance: ≥5000 MΩ Operating temperature range: -20~+60℃ Safe Load Limited: 120%F.S Reference excitation voltage: 9-12V
