Label:Yes
Size:72*28*28mm(2.83*1.10*1.10in)
Outer diameter of water inlet and outlet: 3.95mm(0.16in),
Brand new with high quality
Material:metal
waterproof version of the pump: you can directly throw the pump into the water to work.
Material:Plastic&Metal
Pump length: 73mm (including 7.8mm(0.31in) inlet and outlet lengths)
Pump size: including pump head outlet length 72mm(2.83in), motor outer diameter 24.4mm(0.96in), pump head outer diameter 28mm(1.10in)
Colour:White
Quantity:1pc
Style:

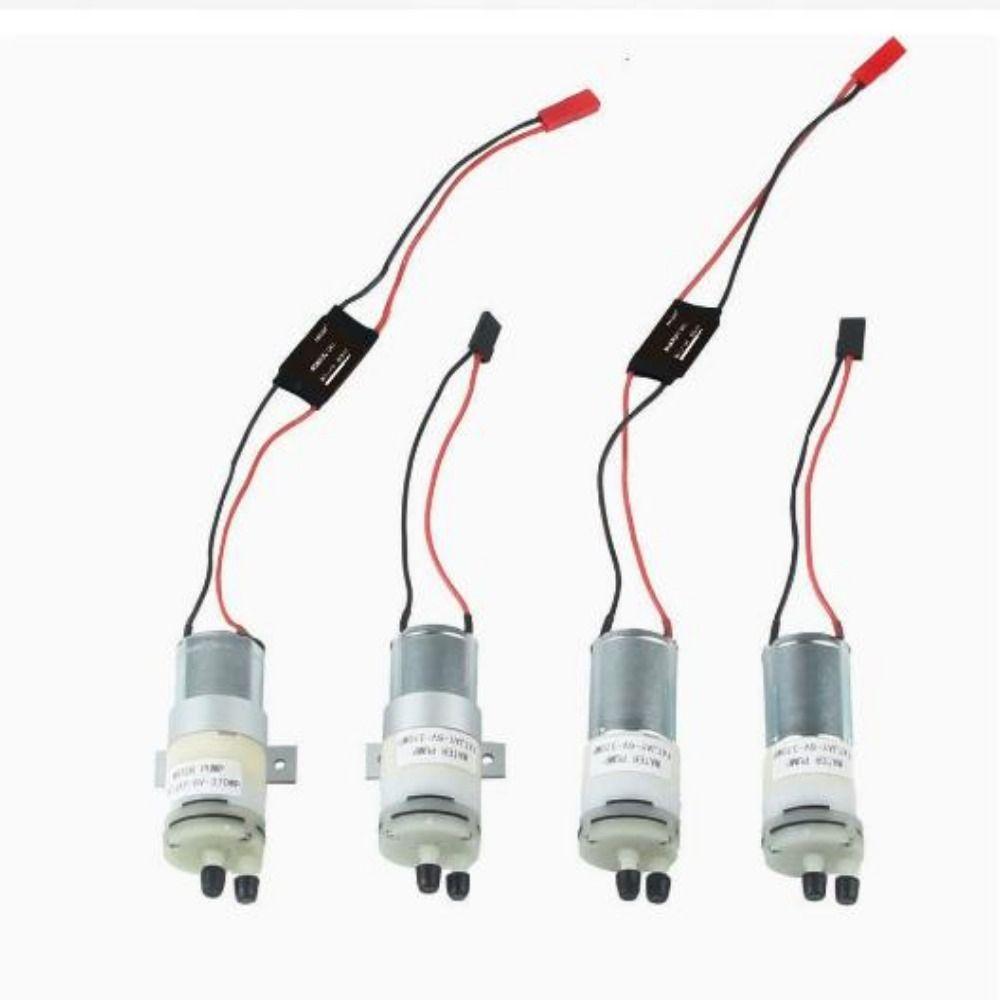

JR plug waterproof version water pump
JST waterproof version water pump+pressure reducing module
JST switch
JR switch
1 meter 3 * 5 silicone tubing
JR plug waterproof version water pump (with mounting seat)
JST waterproof version water pump+pressure reducing module (with mounting seat)
370 water pump product introduction:
1. Scope of use:
Silent 370 water pump, suitable for installation on remote-controlled ships with water-cooled motors that require water cooling and do not have suction rudders. The 370 motor has a pumping voltage of 3-6V and can be directly plugged into the receiver for power supply. Through the voltage reduction module, 2-6S (7-28V) batteries can be directly plugged into the 5V water supply pump for voltage reduction. Suitable for remote-controlled aircraft carriers, warships, battleships, and other remote-controlled ships that require water-cooling for electric motors and electrically regulated water supply. For other purposes, please consult customer service.
2.Pump size specifications:
1. Pump size: including pump head outlet length of 72mm, motor outer diameter of 24.4mm, pump head outer diameter of 28mm
2. Pump length: 73mm (including 7.8mm inlet and outlet length)
3. Outer diameter of inlet and outlet: 3.95mm,
4. Waterproof version water pump: You can directly throw the water pump into the water to work.
3.Joint description:
1. JR plug: also known as DuPont plug, this connector is suitable for direct insertion into receivers;
2. JST plug: generally used to match the battery JST plug, the water pump plug is a JST male head;
3. Voltage reduction module: As the operating voltage of the water pump is 3-6V, if your power supply method is not receiver power and the battery used is greater than 2S, that is, 2S, 3S, 4S, 5S, 6S batteries with a voltage between 7-28V, you need to use this voltage reduction module to reduce the voltage to 5V for use with the water pump.
4. Switch: Adding a switch between the water pump and the power supply. When the water pump needs to work, turn on the switch. When the water pump needs to be turned off, turn off the switch.
4.Pump operation test:
After actual testing, the water pump worked continuously for 15 hours without interruption under 5V voltage conditions. When it was put into normal operation, the temperature would be hot, but it was within the normal range and would not affect its use.
5.Shipping standard:
1. The 370 water pump does not include water-cooled silicone tubing. Please take a photo according to the usage requirements. The unit price is 5 yuan/meter.
6.Other instructions:
Pump head outlet outer diameter: 3.95mm, the center hole is the outlet hole out, and the eccentric hole is the inlet hole in. It happens to use our 3 * 5mm silicone tube.
Operating voltage: rated 6V, using 3-6V
Voltage: 3 V Extraction flow rate: 1.1L/minute Extraction flow rate: 300 milliliters/minute
Voltage: 6 V Extraction flow rate: 1.8L/minute Extraction flow rate: 600 milliliters/minute
Individual weight: 60 grams
Package Include:
1pc Remote Control Vehicle Vessel Model Practical Metal Water Cooling RC Boat 370 Water Pump
Notice:
1.1cm(0.43in)=10mm=0.39inch.
2.Please allow 1-2mm(0.04-0.08in) error due to manual measurement and make sure you do not mind before ordering.
3.Please understand that colors may exist chromatic aberration as the different placement of pictures.
