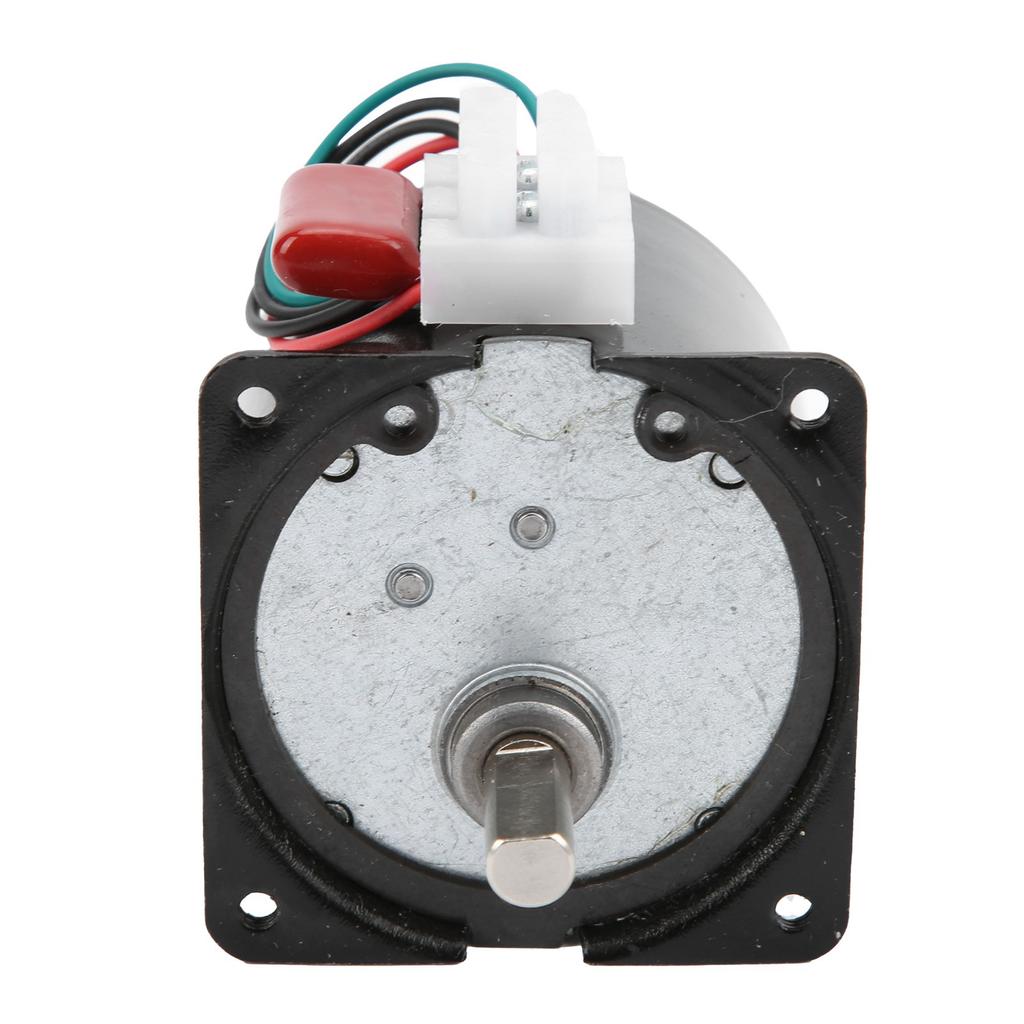

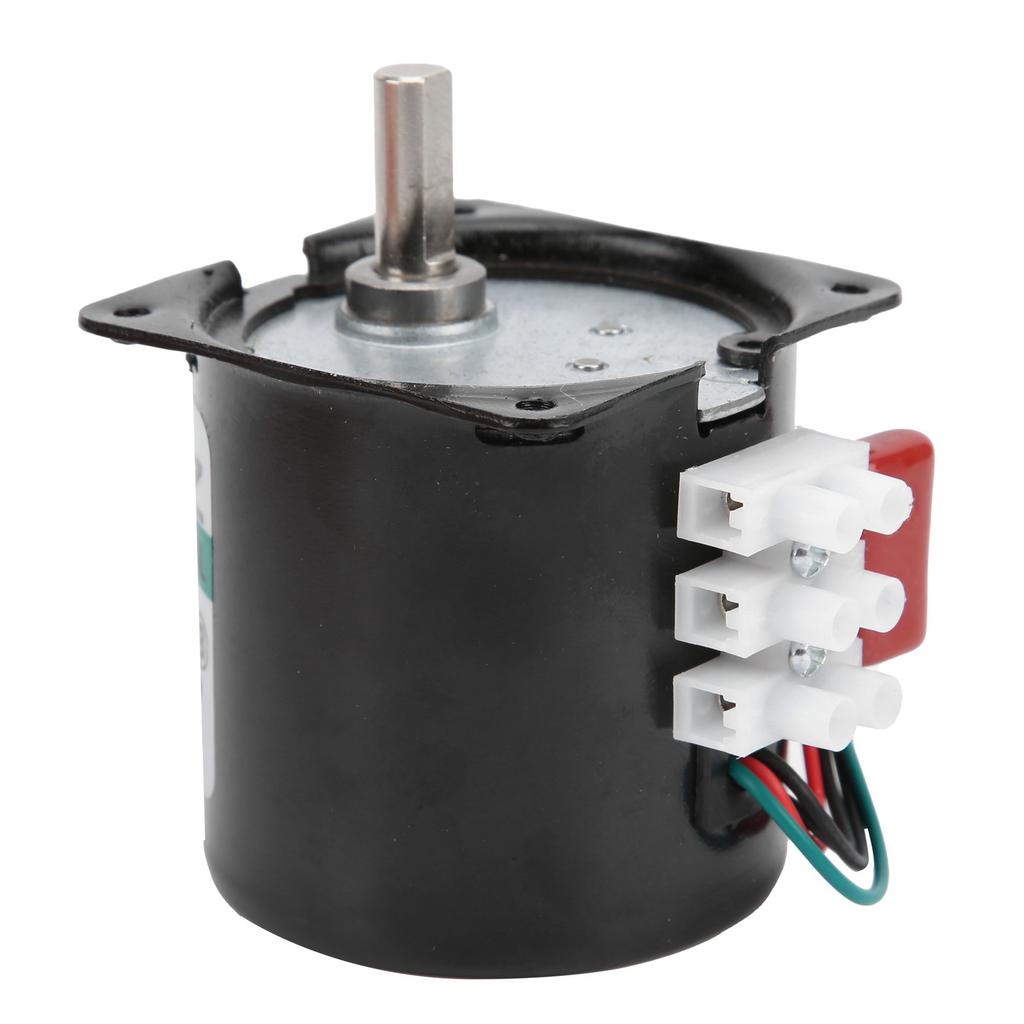

AC Synchronous Motor 14W Permanent Magnet Slow Speed 2‑Way High Torsion Central Shaft XD60KTYZ-AC-S1

AC Synchronous Motor 14W Permanent Magnet Slow Speed 2‑Way High Torsion Central Shaft XD60KTYZ-AC-S1 All-metal gears ensure wear resistance, quiet operation, and long lifespan with compact size and high torque

Pure copper coil stator and rotor enhance deceleration resistance and conductivity, boosting motor torque

High-temperature grease application on motor gears reduces friction, noise, and temperature rise, extending gear life

High-quality magnetic tiles increase working efficiency and minimize dynamic loss

Versatile application across micro machinery, robots, CNC machine tools, precision instruments, and more Feature: 1. Gears are made with all metal, which is wear‑resistant, quiet with long life, possess small size, large torsion, ultra quiet, and stable operation 2. Pure copper coil stator and rotor, the deceleration resistance and conductivity are strengthened, so that the motor torsion is increased 3. The motor gear is applied with high‑temperature grease, which has low friction and noise reduction and slow temperature rise, and improves the service life of the gear 4. Adopt good‑quality magnetic tiles, which are used for higher working efficiency and less dynamic loss 5. Widely used in various industries such as micro machinery, various robots, various CNC machine tools, high‑accuracy measuring instruments, electronic manufacturing equipment, pharmaceutical equipment, financial machinery, military industry and other industries

Specification: Item Type: AC Synchronous Motor Model: XD60KTYZ-AC-S1 Material: Copper Output Shaft Size: Approx. 7 x 19mm / 0.3 x 0.7in Protection Level: IP20 Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20MΩ Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for a second, with a voltage of 1800V, there is no abnormality. Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance method to measure the temperature rise of the coil between 75-80℃ Insulation Class: Class E(130℃) Operating Environment Temperature: Motor: -10~+40℃ (no icing) Use Environment Humidity: 85% or less (no condensation) CW/CCW: Yes Speed Adjusted: No Model Voltage(V） Rotating speed（rpm/min） Normal torsion （kgf·cm）long-time working  Larger torsion（kgf·cm）intermittent work Power（W） XD60KTYZ-AC-S1 AC220V 2.5 38 50 14 10 20 26 14 15 15 20 14 20 12 17 14 AC110V 2.5 38 50 14 10 20 26 14 15 15 20 14 20 12 17 14

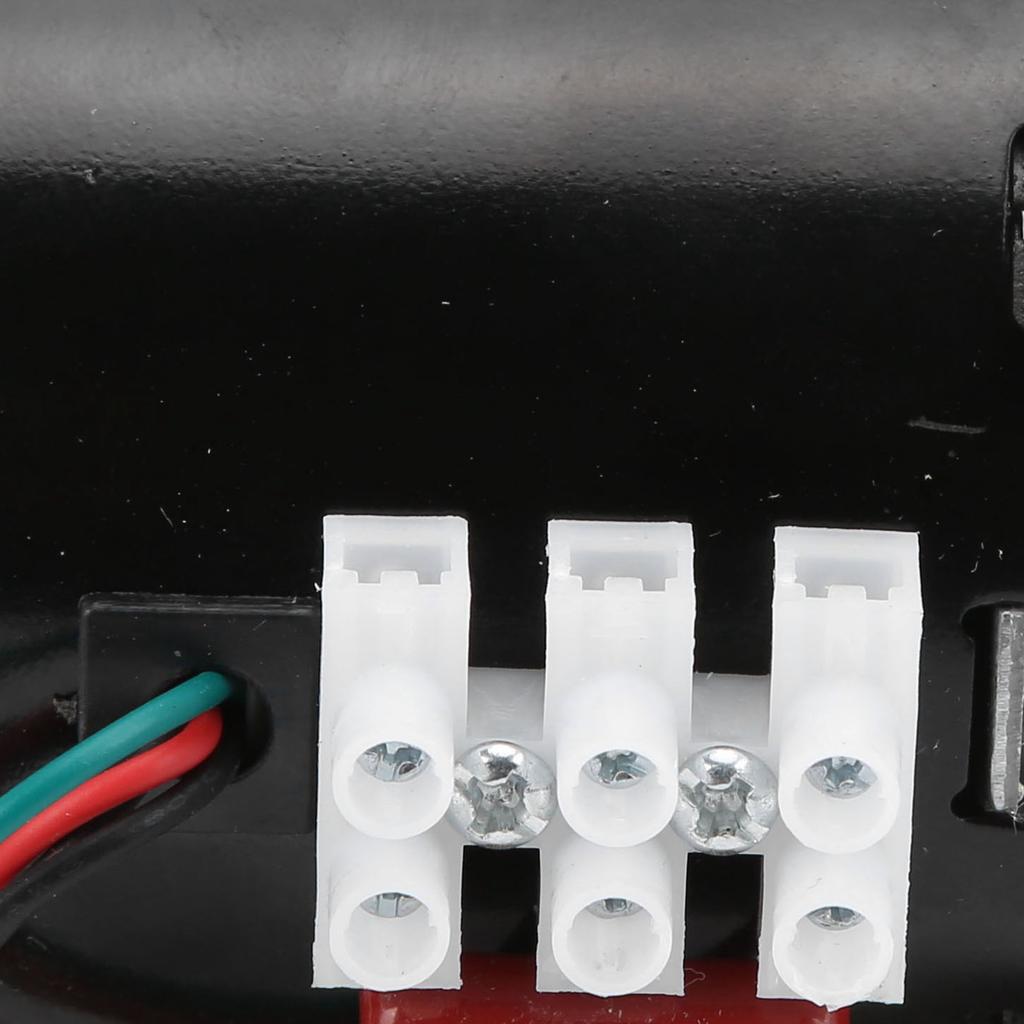

How to Use: 1. Can be directly connected to the power supply (the middle must be connected to either of the two ends) 2. The black and red wires are connected to the power, output shaft to rotate CW 3. The black and green wires are connected to the power, output shaft to rotate CCW

Package List: 1 x AC Synchronous Motor
