Bathroom Adjustable Thermostatic Mixer Valve Brass Water Mixer Hot Cold Water Mixing Temperature Control Valve For Home Water Heater
By using this thermostatic valve, it is easy to control the hot and cold water amount for adjusting water temperature as needed.
Press and hold the red safety button to control the temperature for more than 38°.
With filter net on both hot and cold water connection to water from other impurity.
Made of solid brass valve element, it is durability, sturdy and not easy to rust.
Wall-mounted bath thermostatic mixer valve is easy to install and suitable for many water heater.
This valve is used to mix hot and cold water, in to control water temperature and keep water temperature in a certain range.
Specifications:
Operating Pressure: 0.05-1Mpa
Recommended Pressure: 0.1-0.5Mpa(Need Release Valve When Pressure Is Over 0.5Mpa)
Standard Pressure: Dynamic Pressure 0.3±0.02Mpa
Cold Water Supply Temperature: 4°C-29°C
Hot Water Supply Temperature: 55°C-85°C
Recommended Normally Use Temperature: 60-70°
Water Temperature Control Range: 20°C-50°C
Safety Button Temperature: 38°

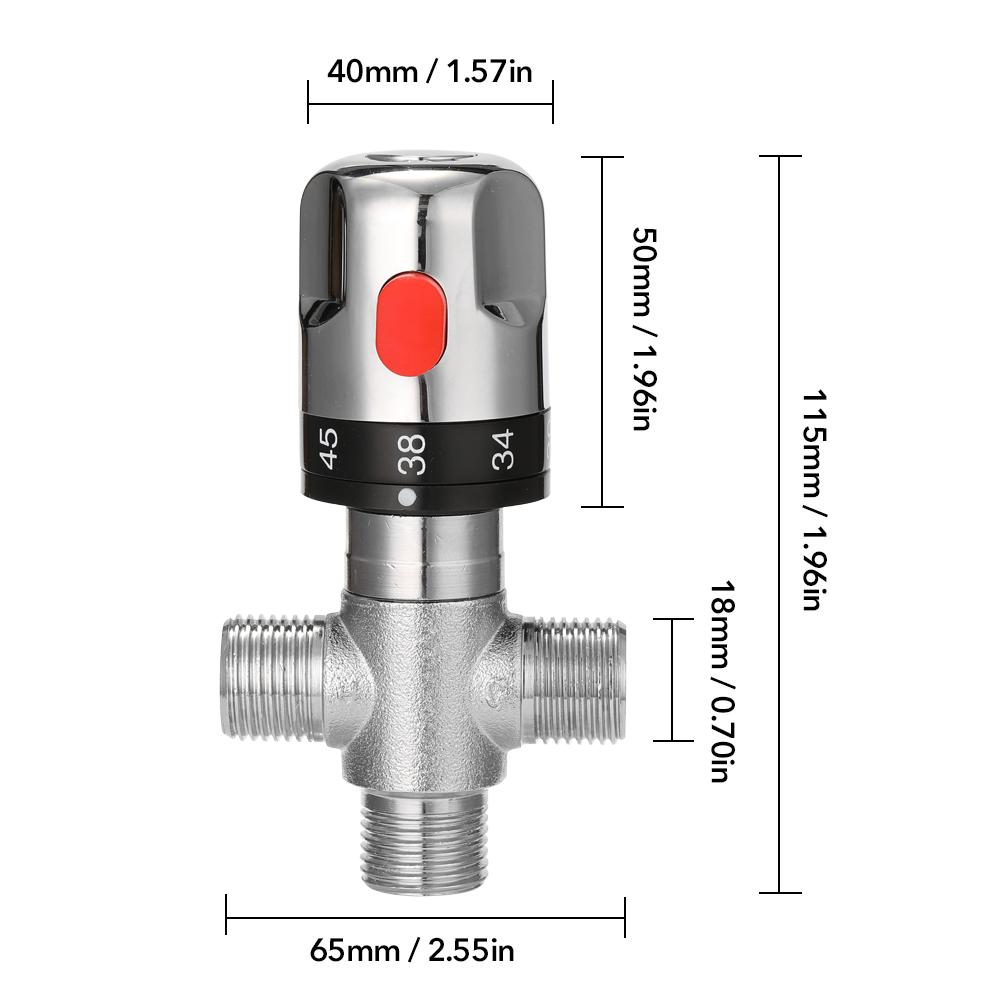

1:
Length: 115mm/ 4.5in
Width: 63mm/ 2.5in
Height: 42mm/ 1.7in
Package Size: 130* 75* 50mm/ 5.1* 3.0* 2.0in
Item Weight: 296g/ 10.4ounce
Package Weight: 330g/ 11.6ounce
2:
Length: 113mm/ 4.4in
Width: 86mm/ 3.4in
Height: 42mm/ 1.7in
Package Size: 115* 90* 45mm/ 4.5* 3.5* 1.8in
Item Weight: 394g/ 13.9ounce
Package Weight: 420g/ 14.8ounce
3:
Length: 115mm/ 4.5in
Width: 63mm/ 2.5in
Height: 42mm/ 1.7in
Package Size: 125* 75* 50mm/ 4.9* 3.0* 2.0in
Item Weight: 296g/ 10.4ounce
Package Weight: 331g/ 11.7ounce
Notes:
Please allow 1-30mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Package List:
1* Thermostatic Valve
