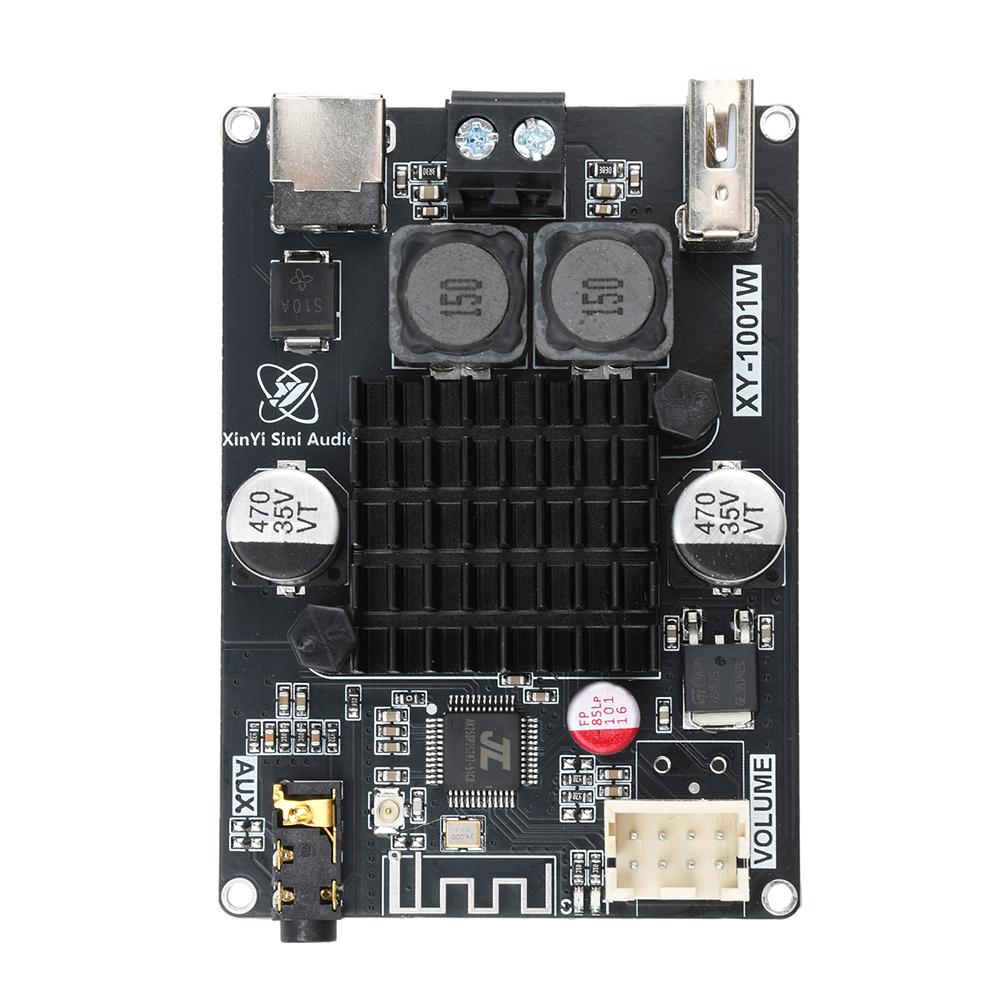

XY-1001W Single Channel 100W High Power Bluetooth Audio Amplifier Board Module TPA3116 DC 9-24V Amplifier Module Support TWS

High-concerned chemical : none Type : Bluetooth Audio Amplifier Board DIY Supplies : Electrical Brand Name : Aideepen Origin : Mainland China Certification : CE

XY-1001W Single Channel 100W High Power Bluetooth Audio Amplifier Board Module TPA3116 DC 9-24V Amplifier Module Support TWS Features: 1. High power output, supports 100W driver for mono, suitable for various audio devices. 2. Support TWS box technology, achieve stereo effect with two interconnected devices, and improve sound quality. 3. Multiple audio input options, including Bluetooth, AUX, and USB flash drive, for flexible use. 4. Adopting TPA3116D2 chip to ensure high fidelity sound quality performance. 5. The hardware design is fully functional, with multiple interfaces and multifunctional volume adjustment buttons, making operation simple and fast. Parameter: Product Name: TWS Bluetooth Digital Audio Amplifier Board Product model: 1001W Power supply: DC9-24V/3A or above Audio input: Bluetooth/AUX/U drive Bluetooth audio decoding: AAC SBC USB lossless decoding: WAV FLAC APE MP3 Output power: 10W @8Ω/12VDC 20W @4Ω/12VDC 35W @8Ω/24VDC 70W @4Ω/24VDC 100W @2Ω/21VDC Size: 73mm * 52mm * 22mm TWS box operation instructions: 1. TWS box connection 1. Two power amplifier boards are powered on, and the blue indicator light flashes rapidly (do not pair with Bluetooth phones/do not connect AUX) /Do not insert a USB flash drive. 2. Press the volume knob of one of the amplifier boards for 4 consecutive times, and the TWS red indicator light will start flashing rapidly (the other one will keep the blue indicator light flashing rapidly). 3. Wait for the TWS red indicator light to change from fast flashing to long on (host), the other blue indicator light to turn off, and the red indicator light to start flashing slowly (slave), indicating that the TWS has been successfully connected; If the red indicator light goes out, it means the connection has failed. You can press the volume knob again 4 times to connect to TWS. After the TWS connection is successful, open your phone's Bluetooth to search for XinYi and connect, and your phone will play music; Or insert an AUX or USB drive to play music. 2. Cancel TWS pairing function: During the TWS pairing process, press the volume knob of any amplifier board continuously for 4 clicks to exit the TWS pairing mode. be careful: When using the TWS box function, it is necessary to first connect the TWS box and then pair it with the phone's Bluetooth. The TWS box function is in memory mode, and it will automatically connect to the box the next time it is turned on. Package Include: 1X power amplifier board 1XDC adapter 1X screwdriver Note: The product is shipped without assembly, and the accessories need to be assembled by oneself when shipped separately. A screwdriver is included as a gift. label:yes
