Feature:

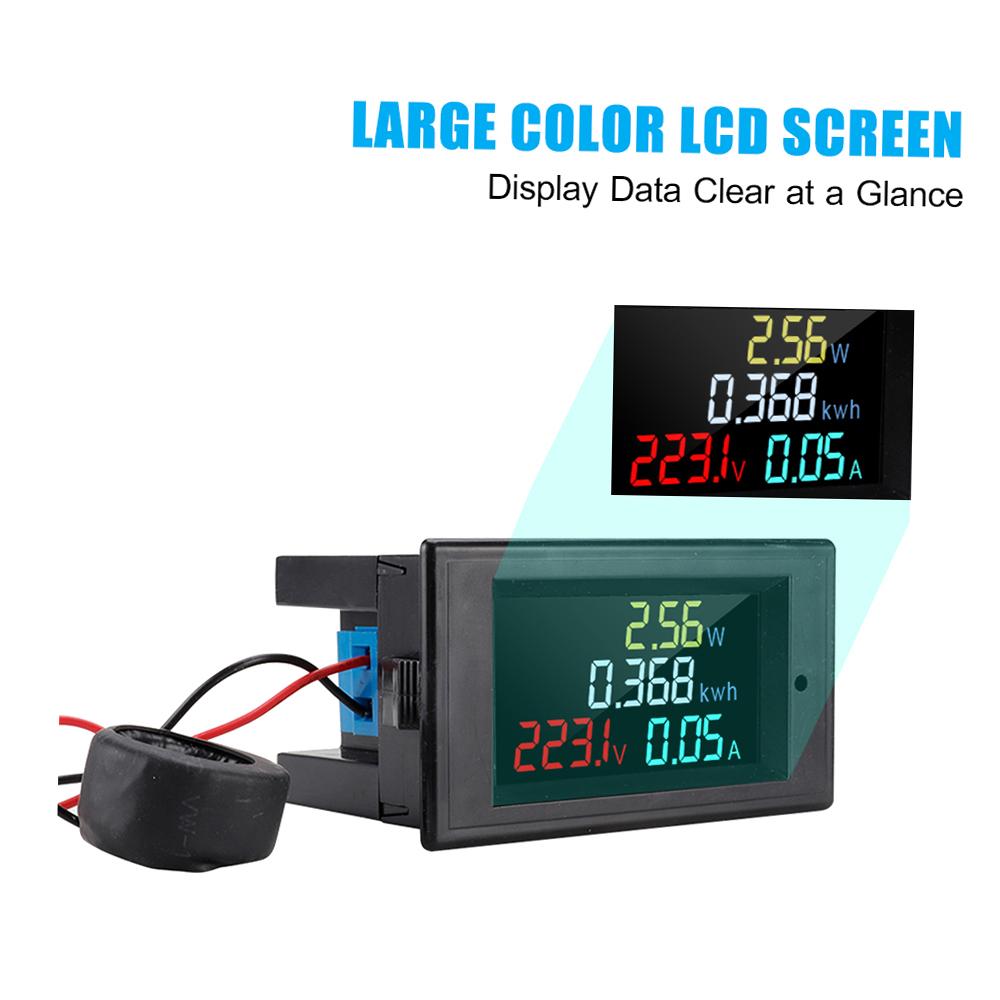

1. Large Color LCD Screen: Voltage, current, active power and electric quantity values can be displayed in bright color meanwhile. All data will be clear at a glance.
2. Data Auto Storage: When power is off, the meter will automatically save the current power value, and will read the value and continue to accumulate it when the meter is electrified again.
3. Current Transformer: Comes with CT rated 0 100A, the meter enables to easily \u0026 well measure current consumption, outside the electronic device itself. Just make the wire go across the hole of the transformer.
4. Reset Function: Hold press the clearing button on the front panel of the meter for 5 seconds, and the meter\u0027s accumulated value will be cleared. Convenient to use!
5. Practical Multimeter: Meter with fast measuring speed of 2 times s has voltage measuring range of AC 80 300V, current measuring range of 0 100A, active power range of 0 30000W, electric energy range of 0 9999999kWh. Easy to install it in your home, helping you monitor the voltage and current for electrical safety.
Specification:

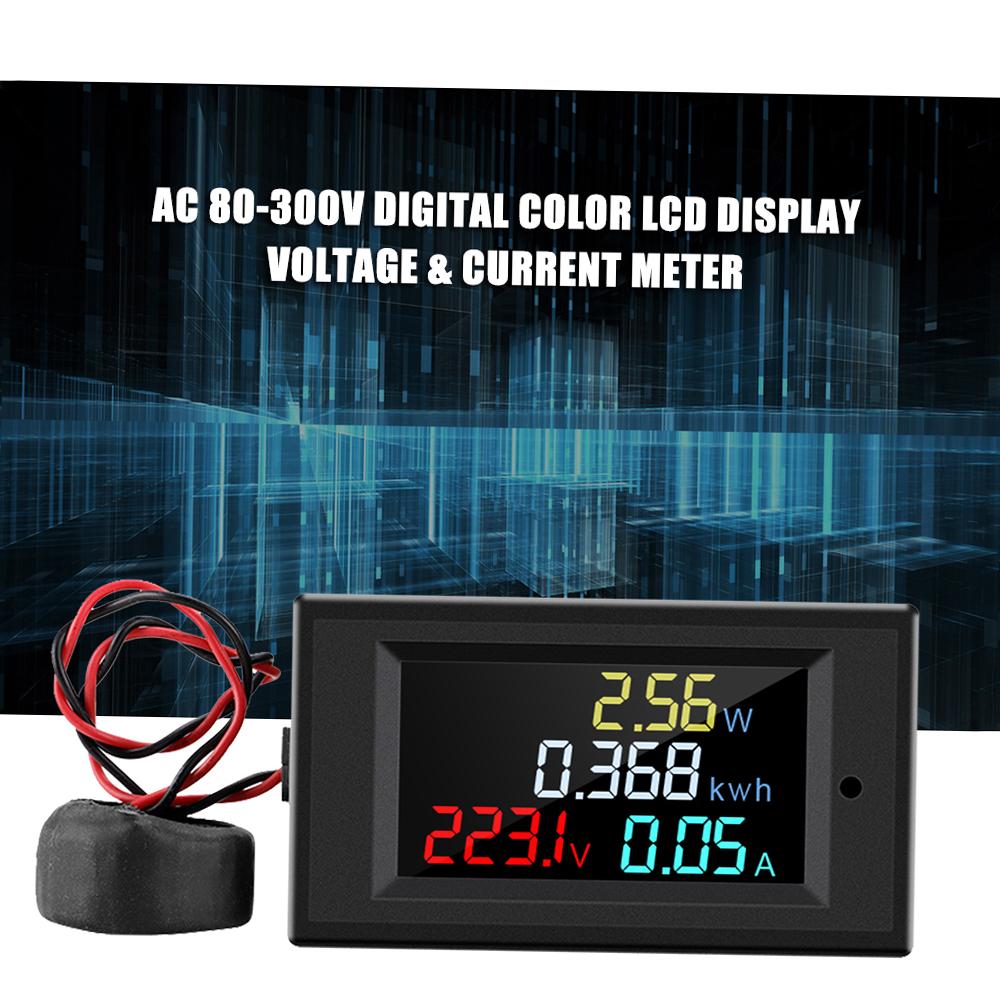

The meter features High quality, practical and accurate(but cannot be calibrated), has a very nice color display LCD where it clearly shows the electrical values, enables to simultaneously measure and display the AC voltage, AC current, active power and electric energy.
Features:
Large Color LCD Screen:Voltage, current, active power and electric quantity values can be displayed in bright color meanwhile. All data will be clear at a glance.
Data Auto Storage:When power is off, the meter will automatically save the current power value, and will read the value and continue to accumulate it when the meter is electrified again.
Current Transformer:Comes with CT rated 0 100A, the meter enables to easily & well measure current consumption, outside the electronic device itself. Just make the wire go across the hole of the transformer.
Reset Function:Hold press the clearing button on the front panel of the meter for 5 seconds, and the meter s accumulated value will be cleared. Convenient to use!
Practical Multimeter:Meter with fast measuring speed of 2 times s has voltage measuring range of AC 80 300V, current measuring range of 0 100A, active power range of 0 30000W, electric energy range of 0 9999999kWh. Easy to install it in your home, helping you monitor the voltage and current for electrical safety.
Specifications:
Material: ABS
Color: Black
Accuracy: 1percent + 2 words
AC voltage measurement range: AC 80.0 300.0V
AC current measurement range: AC 0 99.99A, and current display resolution is 0.01A (it displays 100.0A when it is over 100A).
Active power measurement range: 0 30000W, and 0 9999.9W display resolution between is 0.1W; the rest is 1W.
Power: 0 9999999kwh measuring range
0 9999.999kwh display resolution is 0.001kwh
10 000.00 99 999.99kwh display resolution is 0.01kwh
100 000.0 999 999.9kwh display resolution is 0.1kwh
Measuring speed: 2 times second
Dimension: 7.9*4.3*4.8cm 3.1*1.7*1.9in
Installation size: 7.6*3.9cm 3*1.5in
Item weight: 94.4g 3.32oz
Package weight: 103.6g 3.65oz
Package size: 9*4.5*5cm 3.54*1.77*1.96in
Note:
Meter only, other accessories are not included.
Due to manual measurement, there may be deviation.
Due to lighting, the picture and material object may slightly differ in color, please in kind prevail.
Packing List:
1 * Meter
1 * Current Transformer
1 * User Manual
Package List:
1 * Meter
1 * Current Transformer
1 * User Manual
