Feature:
1. WIDE APPLICATION: Water level controller is widely used in anti dry water level sensors of water heating equipment such as water dispenser, water heaters, solar energy, humidifiers, coffee makers, small refrigerators, etc., and is widely used in automobiles, industrial equipment, agricultural equipment, and household appliances.
2. NORMALLY CLOSED AND NORMALLY OPEN: Our liquid level controller can be adjusted manually. Use a pliers to pull out the snap ring under the float switch and adjust the direction of the float.
3. STAINLESS STEEL MATERIAL: Made of 304 stainless steel material, resistant to acid and alkali, high temperature, corrosion, good material, and long service life.
4. EASY TO INSTALL: Comes with a small size and a lightweight as well, this controller can be easily installed for accurate and efficient work!
5. IDEAL REPLACEMENT: Wonderful replacement for the old and damaged parts, fine workmanship, attention to details, helps you improve the working efficiency!
Specification:

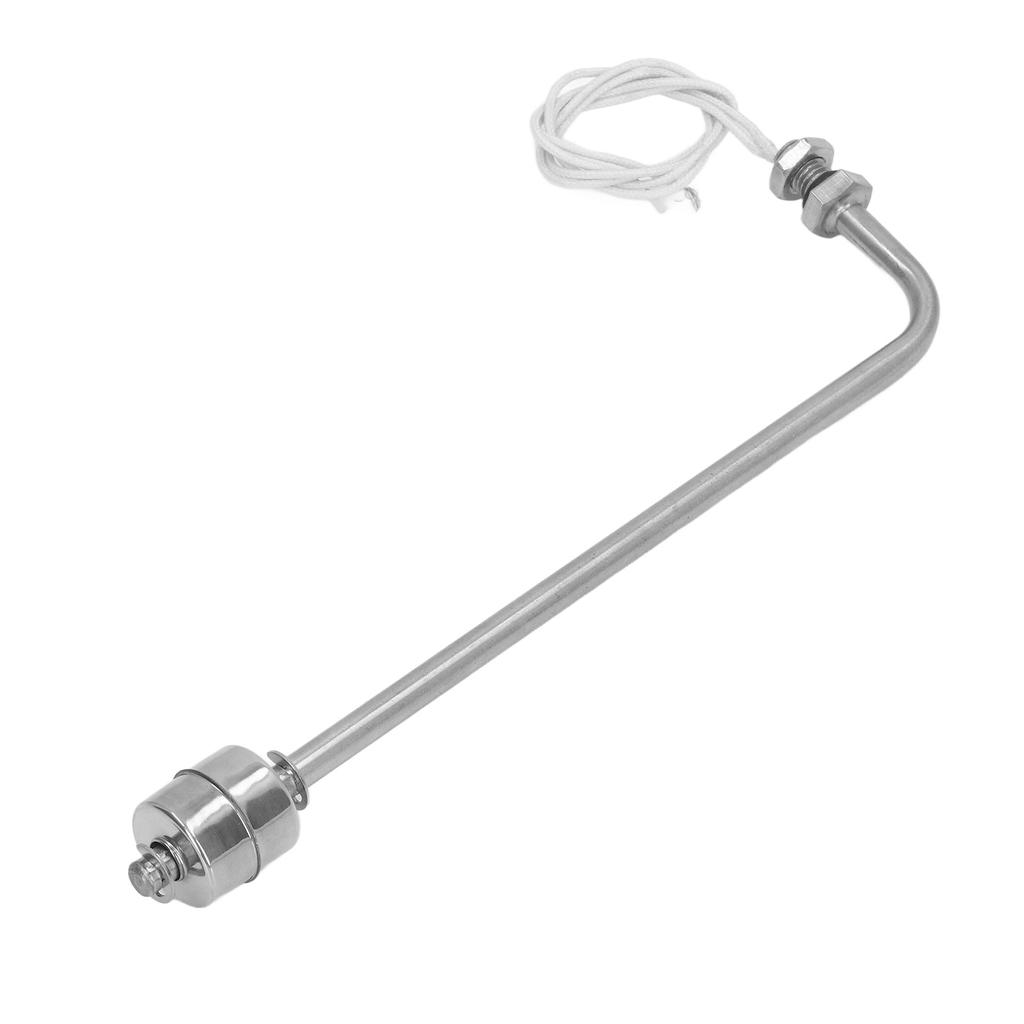

Item Type: Water Level Controller
Material: 304 Stainless Steel
Basic Parameters:
Stroke: Approx. 10mm / 0.39in
Measurement Medium: Water, oil with a specific gravity greater than 0.8
Working Voltage: 0-220 (V)
Working Current: 0.5 A-1 (A)
Medium Temperature: -20 ℃ to 120 ℃
Working Temperature: 0 ℃ to 120 ℃
Maximum Temperature Resistance: 120 (℃)
Working Pressure: 1 (Mpa)
Maximum Withstand Voltage: 5 (Mpa)
Maximum Power:
Low Voltage: 10W
High Voltage: 50W
Maximum Switching Current:
Low Voltage: 0.5A
High Voltage: 1.5A
How to Use:
Install and use!
Package List:
1 x Controller
Note:
1. The float ball is made of all stainless steel 304 material, and the clamp spring is made of 316L material.
2. Low voltage refers to the float switch that can be used in 0‑110V DC voltage circuits. High voltage refers to float switch, which can be used for AC 0‑220V and DC 0‑200V lines.
3. High temperature resistance refers to the float switch being able to withstand a long term temperature of 120 degrees. High temperature and high pressure are white silicone high temperature wires, and low pressure are ordinary black wires. Float switches cannot directly control solenoid valves, high power relays, AC contactors, etc. Add a small relay for conversion.
4. The float stroke is 10mm, which means the control range is 10mm. If the control range is large, two combinations can be used, one long and one short, for installation.
