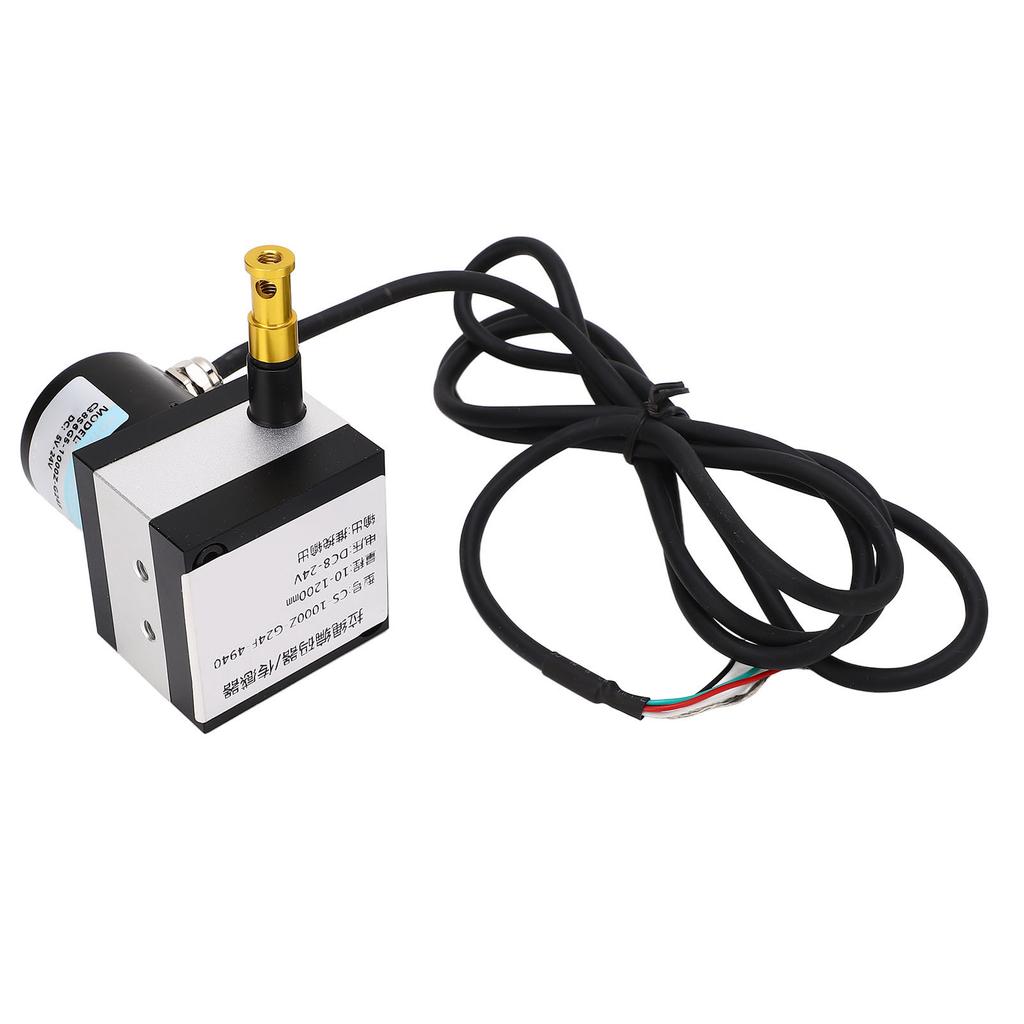

Draw Wire Encoder Pulse Stroke Optional Incremental Cable Switch Dia 38mm 10‑1200mm Range DC5‑24V

Feature: 1. TECHNICAL PARAMETERS: Encoder has 0.25%FS linearity, range 10‑1200mm, voltage DC5‑24V 2. OPERATION MODE: Encoder adopts efficient linear displacement measuring device, push pull output, side out line 3. APPLICABLE SCENARIO: Applicable to cylinder, testing machine and other industries, air pipe production equipment, printing equipment, automatic welding machine, automatic encoder, ink jet machine, robot and so on 4. DEPENDABLE PERFORMANCE: Encoders are suitable for all kinds of environments. They are widely concerned for their small size, excellent performance under bad conditions, accurate, flexible and simple installation 5. WIDE APPLICATION: Encoder is widely used in water conservancy, steel industry, has a large choice space

Specification: Item Type: Draw Wire Encoder Range: Approx. 10 ~ 1200mm / 0.39 ~ 47.24in Output: Push pull output Cable Length: Approx. 1.5meter / 4.9ft Main Body Outer Diameter: Approx. 38mm / 1.5in Outgoing Mode: Side outgoing mode Central Shaft Diameter: Approx. 6mm / 0.24in Operating Temperature: -25℃~+85℃ Voltage: DC5-24V

How to Use: Take out the product and operate as shown in the figure.

Package List: 1 x Draw Wire Encoder

Note: 1. During installation, the cable should be vertical to the encoder, and the cable should not rub against the outlet. 2. Do not loosen the cable connector after it is pulled out; otherwise, the sensor may be damaged. Do not exceed the total length of the wire when pulling.
