Feature:
1. Multiple Value Testing: This digital oscilloscope multimeter has maximum and minimum values, capacitance, current, temperature, diode, voltage, resistance, frequency, and conductivity testing.
2. Multifunctional: This color LCD digital voltmeter can also be used as an oscilloscope with 10MHZ bandwidth, 48MSa s real time sampling rate, auto calibration function, memory function and so on.
3. Data Saving And Transferring: The test data of this digital oscilloscope multimeter can be saved and transferred which is very convenient.
4. Rechargeable: This digital oscilloscope multimeter comes with rechargeable battery and charging cable, you will never worry about power supply.
5. Storage Bag: This digital oscilloscope multimeter comes with a excellent storage bag, which is perfect for when you are going out.
Specification:

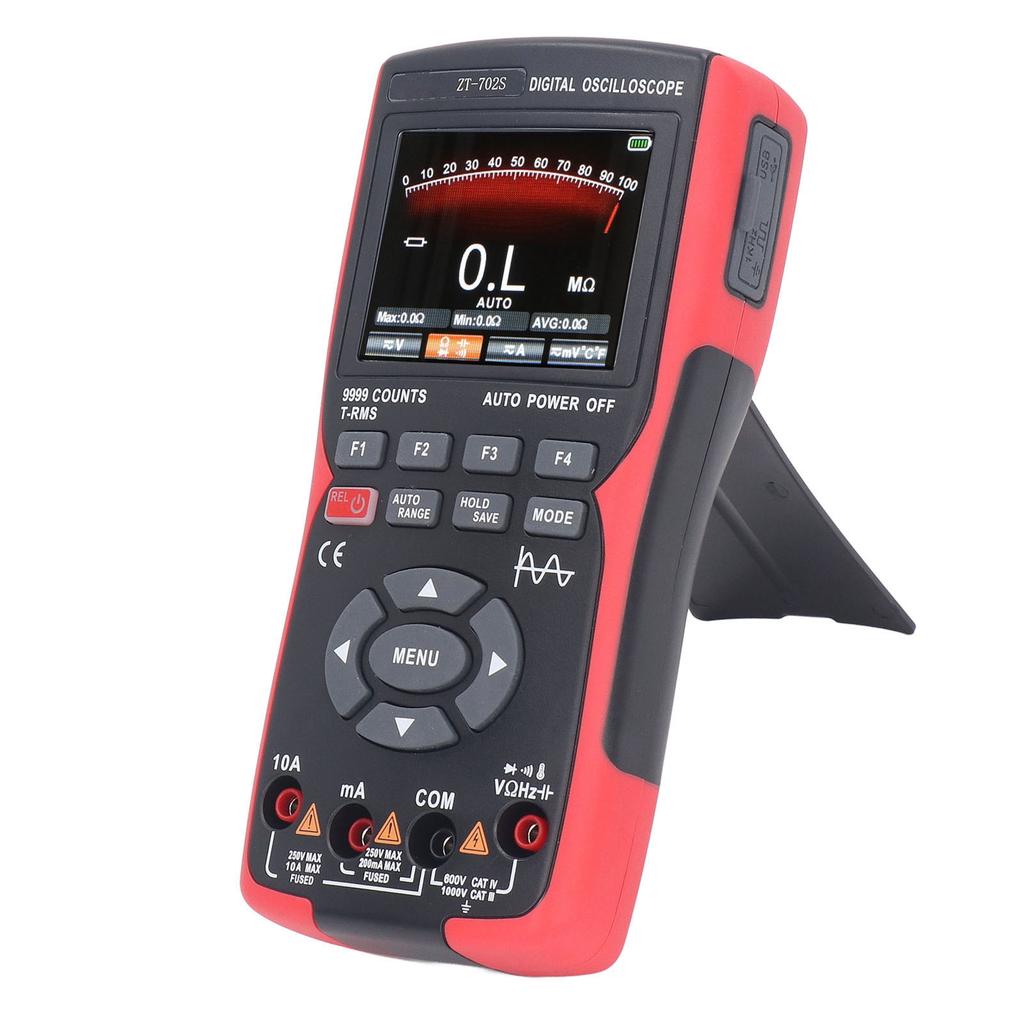

Item Type: Handheld Digital Oscilloscope Multimeter
Material: ABS, TPE
Battery: Battery x 1, Battery Capacity: 2000mAh ( Shipped With Built In Battery )
Display: 9999 Counts
Screen Size: 2.8 Inch
Frequency Band: 10MHz
Real Time Sampling Rate: 48MSa s
Input Impedance: 1M Ohm , at 16pf
Maximum Input Voltage: 150V (DC and AC Peak)
Horizontal SEC Range: 50ns div 20s div
Vertical Sensitivity: 20mV div 10V div
DC Voltage: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 999.9V
AC Voltage: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 750.0V
DC Current: 9999microamps, 99.99mA, 999.9mA, 9.999A
AC Current: 9999microamps, 99.99mA, 999.9mA, 9.999A
Resistance: 99.99 Ohm , 999.9 Ohm , 9.99K Ohm , 99.99K Ohm , 999.9K Ohm , 9.999M Ohm , 99.99M Ohm
Capacitance: 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF
Frequency: 99.99Hz, 999.9Hz, 9.999kHz, 99.99kHz, 999.9 kHz
Oscilloscope Probe Parameters:
Model: P2060
Attenuation Ratio: 1X and 10X
Frequency Band: 60MHz
Rise Time: 5.8ns
Input Resistance: 1M Ohm , 10M Ohm + 2percent
Input Capacitance: 10X: 14pF 70pF
Maximum Input Voltage: 1X: 150V RMS CAT II and 10X: 300V RMS CAT II
Compensation Range: 10pF 35pF
Safety: IEC61010 031.
Package List:
1 x Oscilloscope Multimeter2 x Meter Pen1 x Probe2 x P2060 Oscilloscope Probe1 x USB Cable16 x Color Ring2 x Non Inductive Adjustment Warrant4 x Probe Hook Cap3 x Instruction Manual1 x Storage Bag
