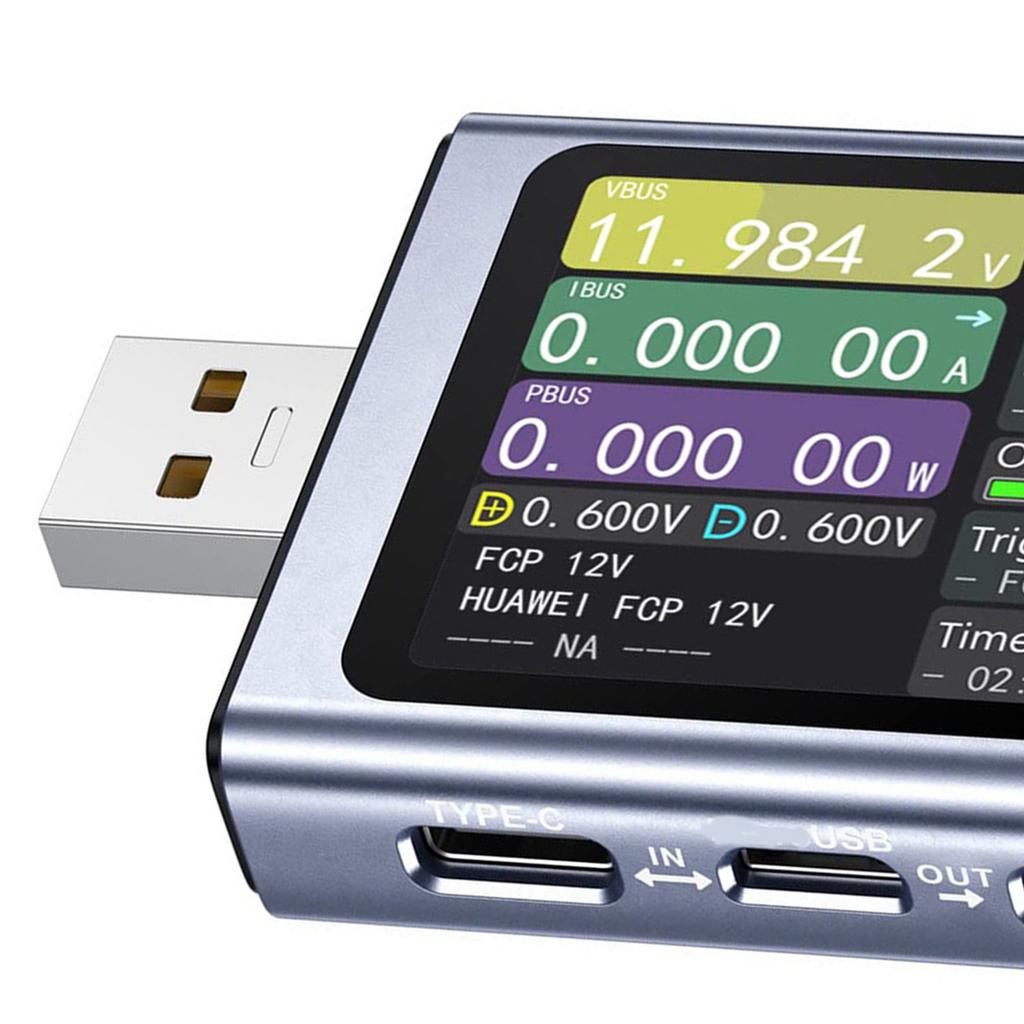

USB Voltage Current Meter 4‑28V 0‑7A 0‑140W LCD Display Type C Fast Charging Tester for PD2.0 PD3.0 QC2.0 QC3.0

Feature: 1. [LCD Display] The USB tester features 2.0 inch high definition LCD screen, ensuring clear visibility of measured data. Simple display interface and independent function menu ensure user friendly operation. 2. [Advanced Interfaces] Our USB voltage current power tester is equipped with 5P high current USB A and 24P all pin Type C input output interfaces, offering quicker and efficient charging testing. 3. [High Accuracy] Boasting 0.00001 low resolution, the USB voltage current meter can real time monitor subtle fluctuations in voltage, current, and power during charging, ensuring accurate measurements. 4. [Wide Compatibility] Supports automatic protocol detection and protocol deception, allowing you to play with fast charging like PD 2.0, PD 3.0, QC 2.0, QC 3.0, QC 4, for FCP, for SCP, for AFC, for PE, for DASH VOOC, for SuperVOOC. 5. [Data Recording] Records 10 sets of charge and discharge energy data, and comes with built in battery capacity calculation formulas for quick capacity calculations based on recorded data. Specification: Item Type: USB Tester Material: PCB Index Range Resolution Accuracy Monitoring Voltage 4 28V 0.00001V + (0.29‰+2) Monitoring Current 0 7A 0.00001A + (0.5‰+2) Monitoring Power 0 140W 0.00001W + (0.5‰+2) Load Equivalent Resistance 0 9999.9Q 0.0001 Ohm + (0.5‰+2) D+ D Voltage 0 3.3V 0.001V + (1.0percent +2) Device Temperature

celsius 1 celsius + (1.2percent +3)

Fahrenheit 1 degrees F + (1.2percent +4) Capacity 0 9999.99Ah 0.00001Ah

Power Consumption 0 9999.99Wh 0.00001Wh

Cable Internal Resistance 0 9999.9Q 0.0001 Ohm

Device Running Time 99 days, 23:59 minutes, and 59 seconds 1 second

Record Time 99 days, 23:59 minutes, and 59 seconds 1 second

. Package List: 1 x USB Tester
