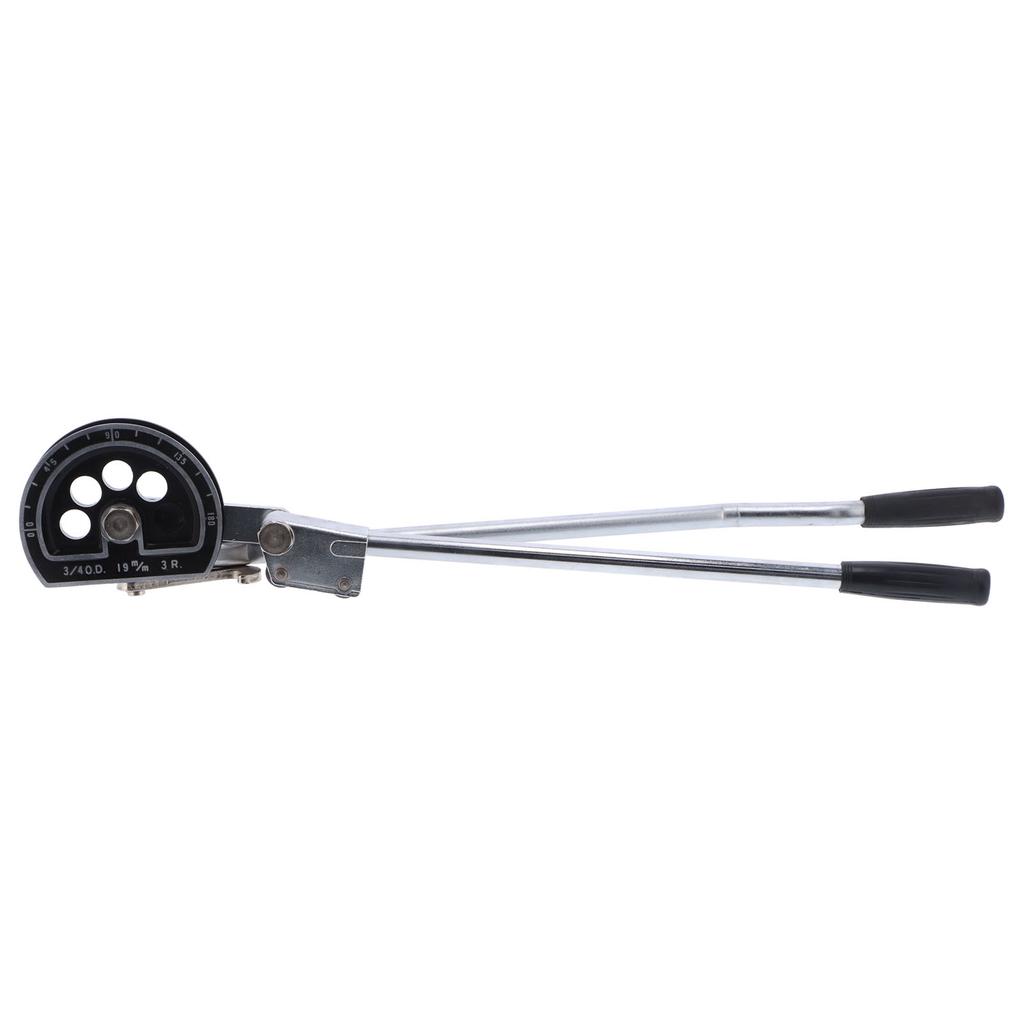

Tube Bender Cast Iron Thicken Groove Heavy Duty with 19mm Diameter for Pipe CM‑364‑12

Feature: 1. With new process treatment, all adopt the machine polishing, make the product appearance more beautiful, the machine body coordination is more flexible. The metal scale is permanently clear! 2. Tube groove and sliding rod inner groove is used CNC machine tools for fine grinding! The packaging pipe bends smoothly without hurting the pipe or undercutting! 3. Forged with high-quality materials, the lever body is made of special pure practical metal with long service life, strong tensile strength, and easy bending of stainless steel. 4. The outside of the pipe groove is made of thickened compound edge, which can better withstand the longitudinal expansion force caused by the bending of the pipe. 5. The scale adopts a convex design, no matter what environment user can see the scale clearly.

Specification: Item Type: Tube Bender Model: CM-364-12 Material: Cast iron Purpose: Specially used for bending 3/4 inch pipe with a radius of 15/16 (Approx. 24mm / 0.9in) Diameter Range of Bend: Approx. 19mm / 0.75in Bend Diameter Range: 3/4 inch Bend Specifications: Approx. 19mm / 0.7in Bend Angle: ≥ 180° Bending Radius: Approx. 76.2mm / 3in Maximum Bending Force: 25 (KN)

How to Use: 1. Hold the forming handle of the tube bender or fix the tube bender on a vise.2. Loosen the hook and raise the slider handle.3. Place the pipe in the groove of the forming disc and fix it in the forming disc with a hook.4. Lower the slider handle until the "0" scale line on the hook is aligned with the 0° position on the forming plate.5. Rotate the slider handle around the forming disc until the "0" scale line on the slider is aligned with the required degree on the forming disc.

Package List: 1 x Tube Bender
