Features:
*Aluminium alloy controller shell: The controller shell for is made of aluminium alloy, providing for Protection for the inner circuit and good heat dissipation to prevent thermal overloading.
*Steady speed and sensitive control: The brushed motor controller offers steady speed and sensitive control for braking and direction changes.
*Weatherproof design: The wires and interfaces are sealed with a rubber ring, protecting sensitive electronics from the for elements and reliable performance even with long-term use.
*Speed-adjustable for accelerator pedal: The speed-adjustable for accelerator pedal for is more responsive than for traditional brakes, with a shorter response time. It allows for quick braking, the safety of both the for rider and pedestrians and easily meeting control requirements.
*- ABS material: The speed-regulating for accelerator pedal is made of - ABS material, providing resistance to aging, high temperature, long for service life, and high durability.
Specifications:
Part Name:Electric Gas Foot Pedal/Brushed Controller
For Brushed Controller
Material:Aluminium alloy, ABS material
Size:As shown in the picture
Color:As shown in the picture
Rated Voltage: 24/36/48V
Match Motor: 250/350/500W/1000W
Electric current:24v 500w 23A ,36v 500w 20A ,36v 1000w 32A,48V 1000W 30A
Under-Voltage for Protection: 20 + 0.5V, 31.5 + 0.5V, 42 + 0.5V
Suitable for: electric bicycles and scooter
24V 250W Size: Approx. 75 * 50 * 35 mm / for 2.95 * 1.96 * 1.37 inch
24V/36V 350W Size: Approx. 83 * 65 * 37 mm / 3.26 * for 2.55 * 1.45 inch
24V/36V/48V 500W Size: Approx. 83 * 65 * 37 mm / 3.26 * for 2.55 * 1.45 inch

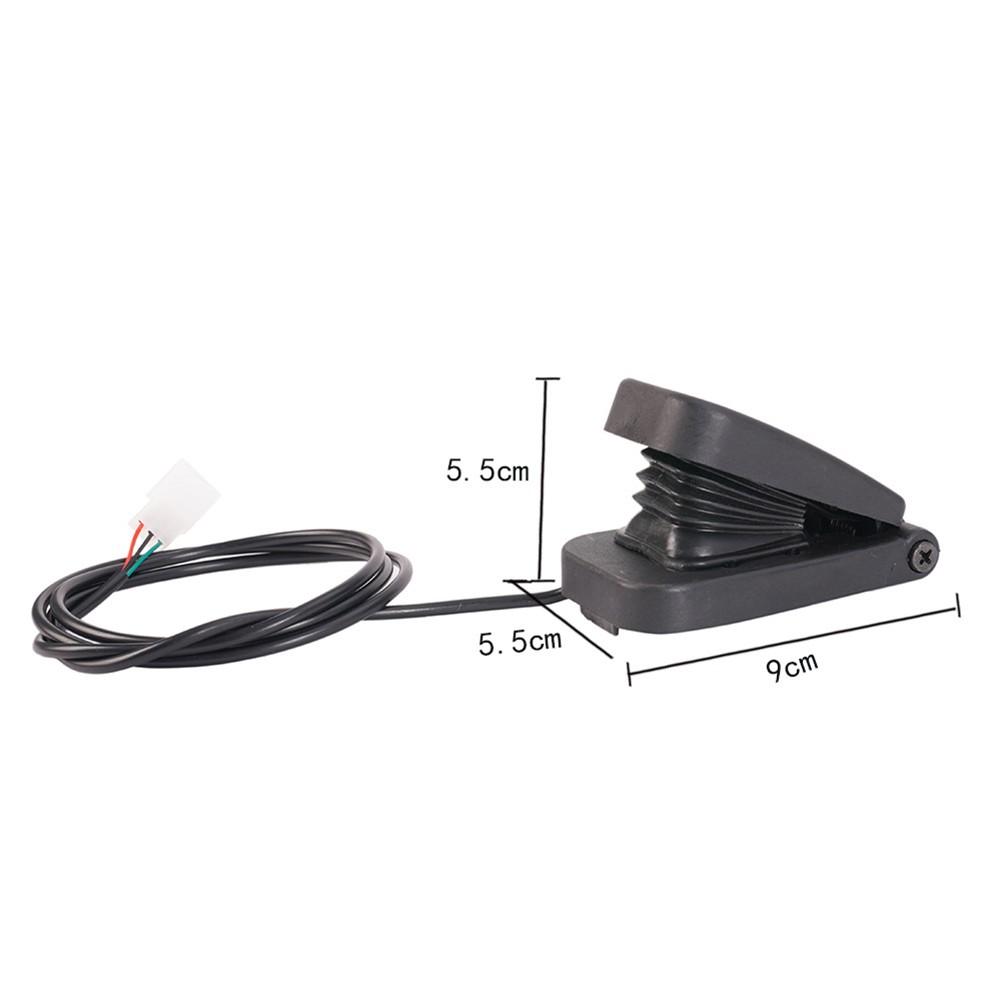

For electric Gas Foot Pedal
Switching diagram:
Red: + 5V positive electrode
black:(0V) Negative pole
Green: Signal line
Package Content:
Brushed Controller*1
or Electric Gas Foot Pedal*1
Note:
1. Please read the labels on the interfaces of the controller, make sure that every interface for is rightly connected to what it matches.
for 2. To the thick black&red power cord, the red for is for / positive electrode, and black for / negative electrode. to the thick yellow&blue motor cord, the blue for positive electrode, the yellow for negative electrode. Make sure that power cord is placed rightly to prevent damage.
