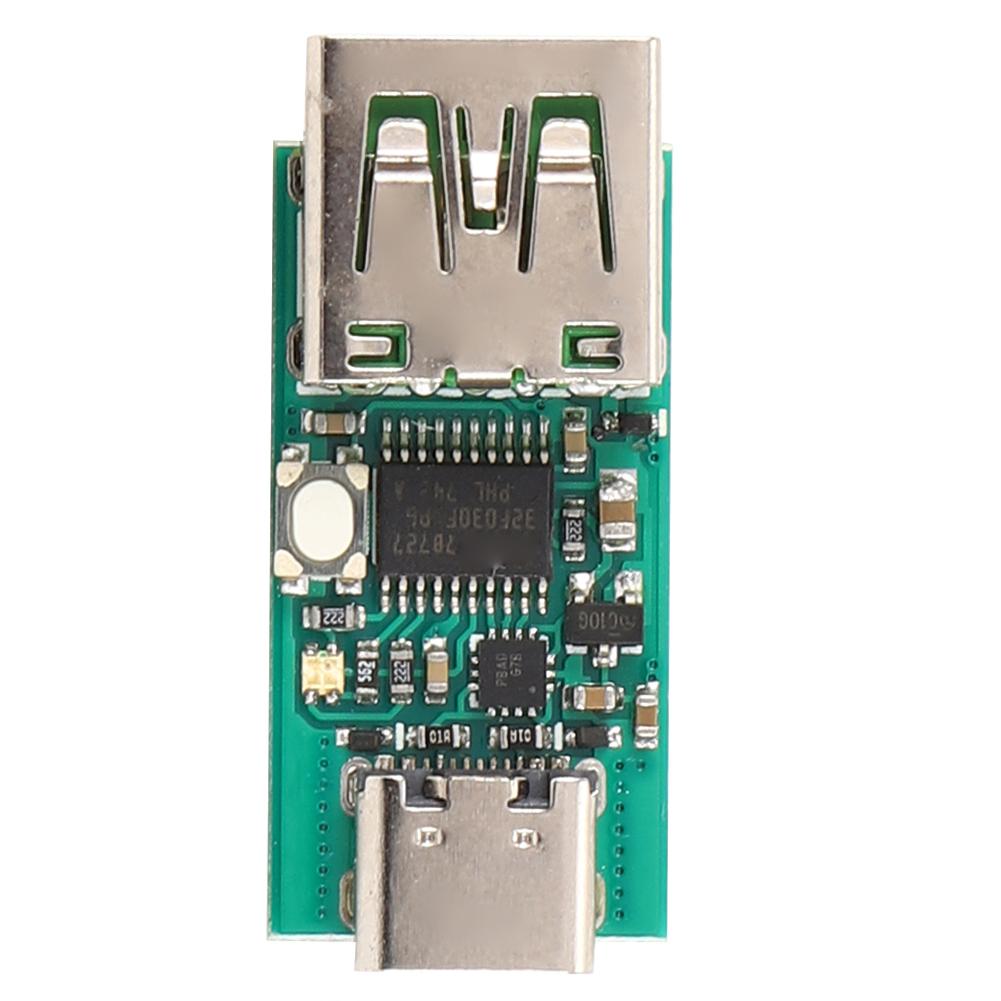

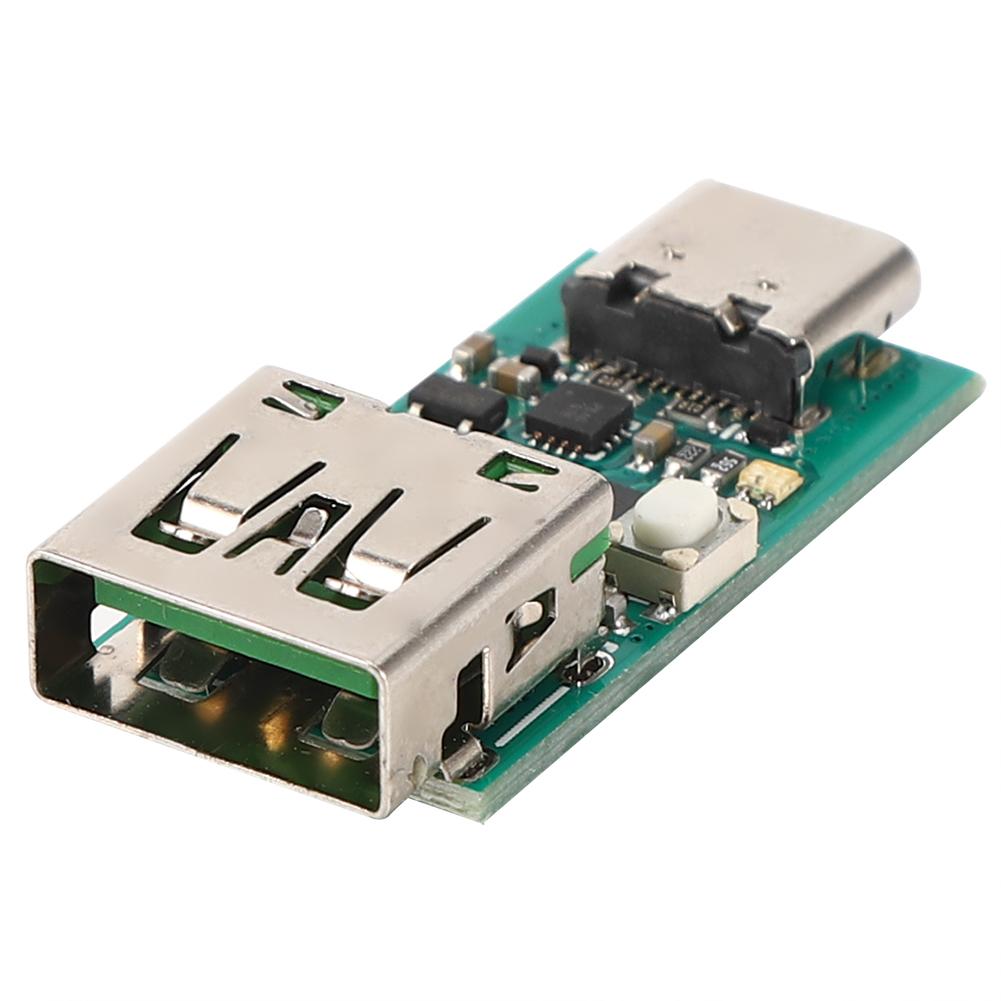

USBC PD2.0 3.0 to DC USB Decoy Fast Charge Trigger Poll Detector Laptop Power Supply Change

Feature: 1. This product can trigger any voltage that meets the PD2.0 specification. 2. Large‑volume ceramic capacitor filtering, TVS anti‑surge and anti‑reverse connection, ALPS touch switch, pay attention to stability. 3. With USB welding position and 5.08 screw terminal welding position, it is convenient to make Type‑C to DC adapter cable. 4. After triggering, the user can supply the back‑end load test or use through the USB socket or self‑welding cable. 5. After power‑on, ZY12PDS will enter PD mode by default, and the 7‑color lights show steady red, indicating that the default 5V has been applied. Specification: Condition: 100percent Brand New Item Type: Fast Charge Trigger Poll Detector Function Introduction: This product can trigger any voltage conforming to PD2.0 specification, voltage 3 20V, current 0 5A. After triggering, the user can supply the back end load test or use through the USB socket or self welding cable. Instructions for Use: After power on, ZY12PDS will enter PD mode by default, and the 7 color light shows steady red, indicating that the default 5V has been applied. If the adapter supports more voltages, you can click the touch switch to switch the output voltage. The 7 color lights are on and steady [Red, Yellow, Green, Blue, Blue, Purple, White] shows the corresponding No. 1 7 voltage and current group output by the actual application adapter. If the adapter does not support the PD mode, the connection timeout is abnormal or the application does not respond, the 7 color light will be red Mode Setting: When power on, the 7 color lights will flash once and the color indicates the current working mode. Press and hold the button and then power on. After the 7 color lights flash quickly, let go to enter the setting, short press to switch the color of 7 color lights, long press to save the light off. Corresponding Functions of the 7 color Lights Color: Red: apply for 8 10V voltage, yellow: apply for 8 10V, green: apply for 11 13V, green: apply for 14 16V, blue: apply for 18 20V, purple: apply for the highest voltage, white: poll all supported voltages. Apply for the Highest Voltage Logic: If you broadcast 5, 9, 20, 20, 15V, apply for 20V, and apply for the highest voltage value in the broadcast. If there are multiple same highest values, apply for the last one. Apply for fixed voltage logic: suppose you set 14 16V, broadcast 5, 14, 16, 15, 12V and apply for 15V, apply for the last voltage in the range in the broadcast.. Package List: 1 x Fast Charge Trigger Poll Detector Note: This product is only for professional users. After PD is triggered, it is forbidden to connect to equipment that cannot withstand high voltage.
