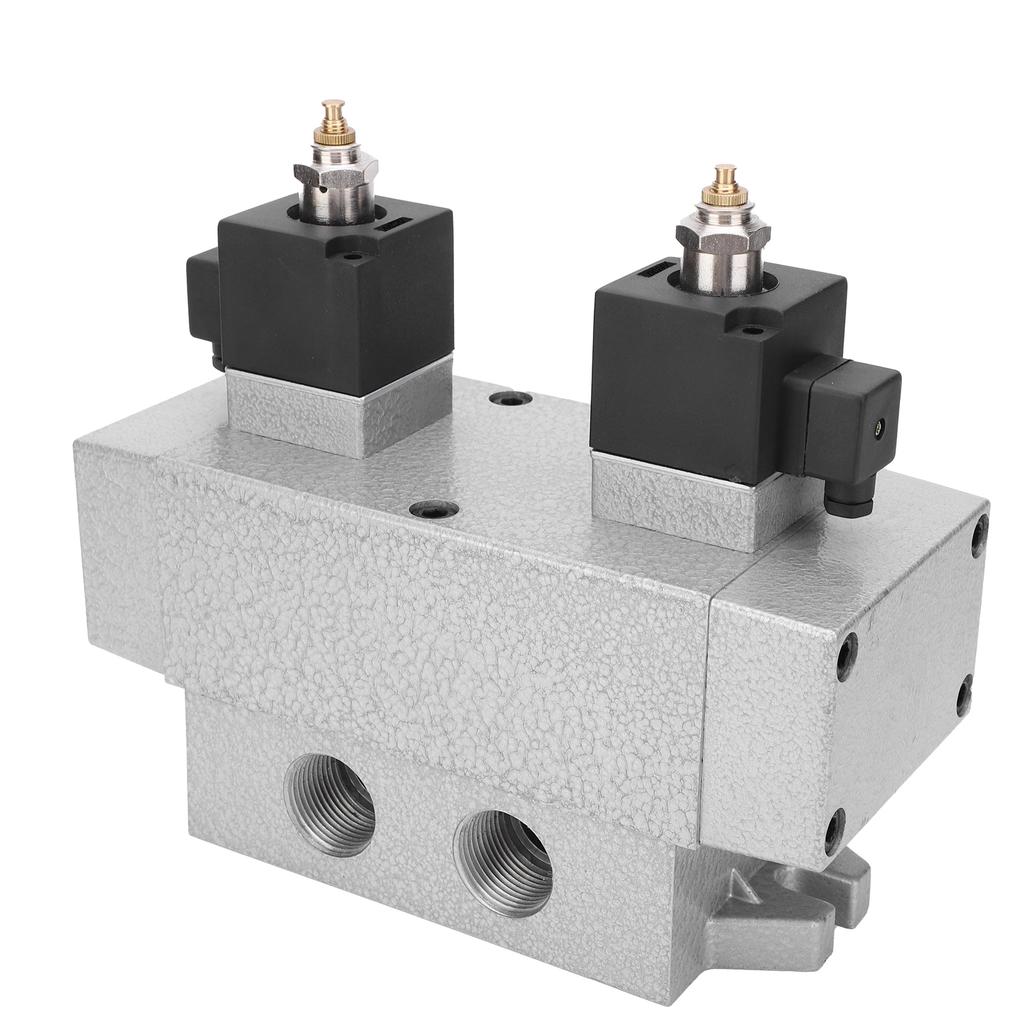

Solenoid Valve 3‑Position 5‑Way Double Electric Control Sliding Column Structure G3 4in K35D2H 20DC24V

Feature: 1. Profit from its own use of the spacer‑type slide valve structure, this solenoid valve is very reliable in performance. 2. In the structural design, there is an automatic compensation function for the wear of the seal, which has a larger flow capacity. 3. Can meet the needs of high flow media to pass, and has a wide range of applications in many fields. 4. Double electronic controlled three‑position five‑way solenoid valve with G3 4 in port , has a long service life. 5. Compact structure, and the base plate also uses a pipe‑connecting structure, which makes installation and maintenance work more convenient. Specification: Item Type: Solenoid Valve Material: Aluminium AlloyModel: K35D2H 20 Interface Diameter (inch): G3 4 Pressure: 0.15 0.8 (mpa) Discharge Flow Rate (cm³ min): 250 Reversing Time (s): less than 0.12 Maximum Allowable Commutation Frequency (Hz): 4 Environmental Temperature ( celsius ): 5 50 Medium Temperature ( celsius ): 5 50S Value of Circulation Capacity (mm²): 120 Life (Thousand Times) more than 1500Hoe to Use:1. Manual operation can be used during debugging or power failure.2. The inside and outside of the pipe must be cleaned during installation, and then remove dust cap.3. If it has been stored for a long time or used for a long time or is not responsive, please disassemble and wash or add some lubricant.. Package List: 1 x Valve 1 x Manual Note:
