Voltage range : Low voltage non-USB (below 75V , below 50V AC)
Output Power : 150-500（include500）
High-concerned chemical : none
Data Transmission : no
Power Source : Ac
Package : Yes
Use : Standard Battery
Model Number : Lithium Battery Charger
Display screen : Yes
Intelligent Charge : Yes
Quick charge : Yes
Type : Electric
WAPUNO
Origin : China

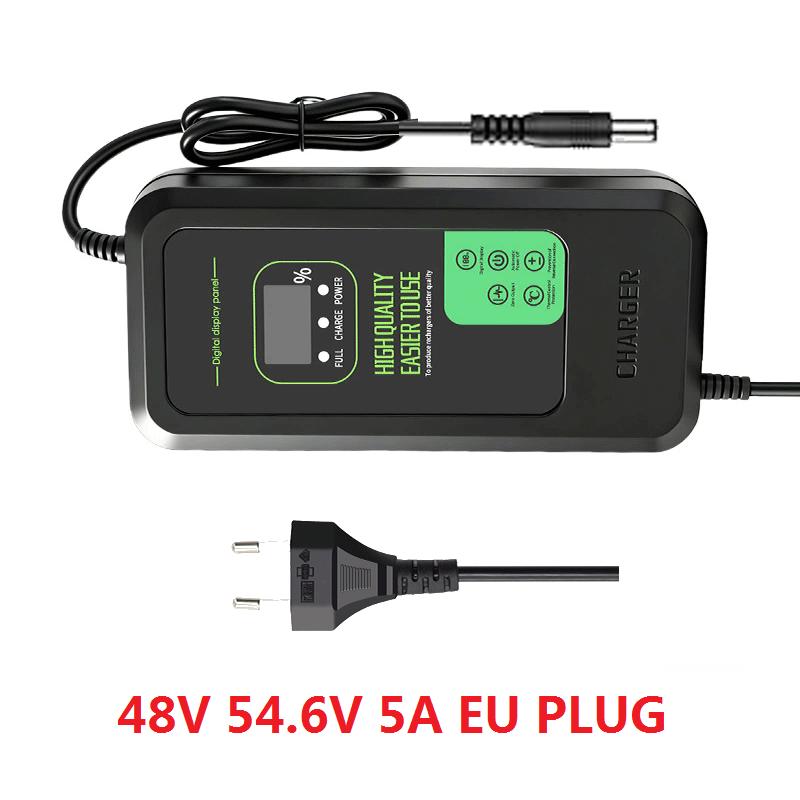

Product Specifications:
Features:
1. Newly upgraded with digital display and high quality.
2. Made of high-quality materials, durable and long-lasting.
3. Intelligent Charging: Multiple protections ensure safety. Just plug in the power and it will automatically maintain the battery.
4. Indicator Light: Green light indicates fully charged or disconnected. The red light indicates that charging is in progress.

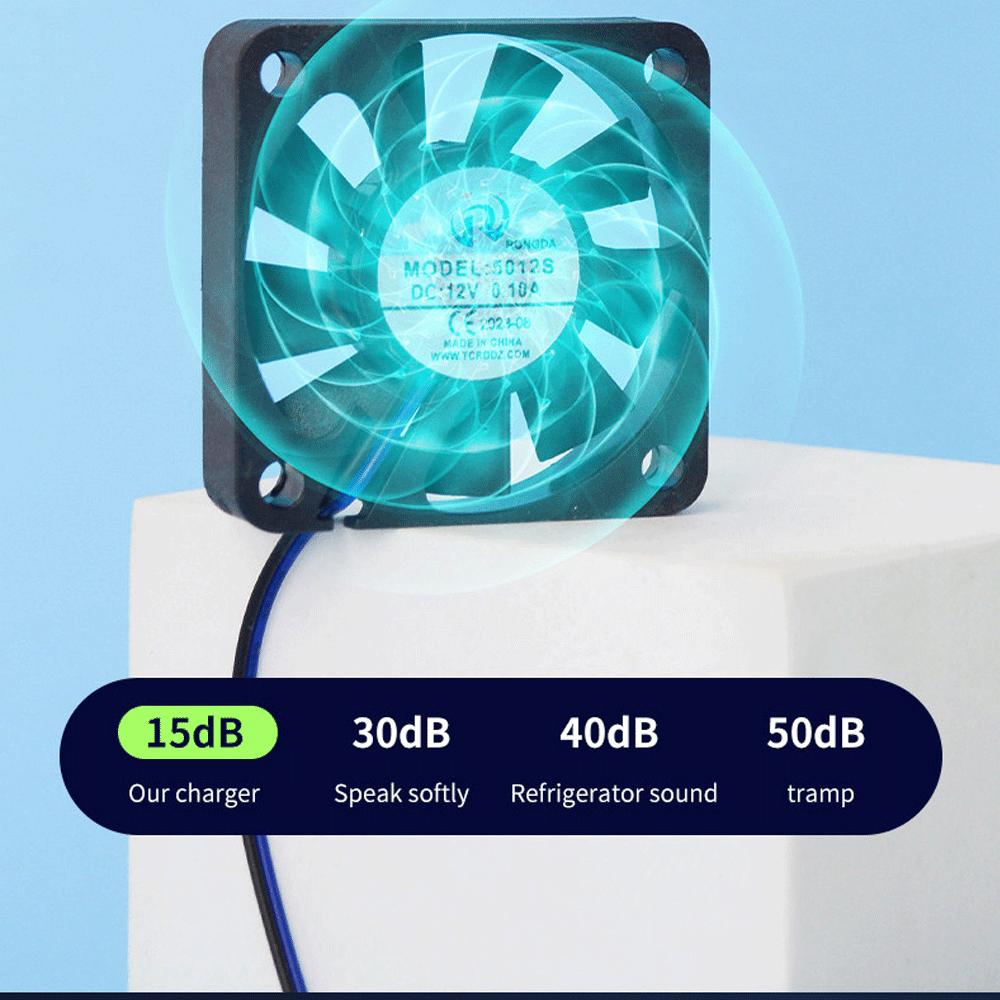

5. Cooling Fan: Built-in fan allows the charger to dissipate heat while charging, extending the lifespan of the charger.
Specifications:
Applicability: Lithium Battery
Input Plug: EU Plug

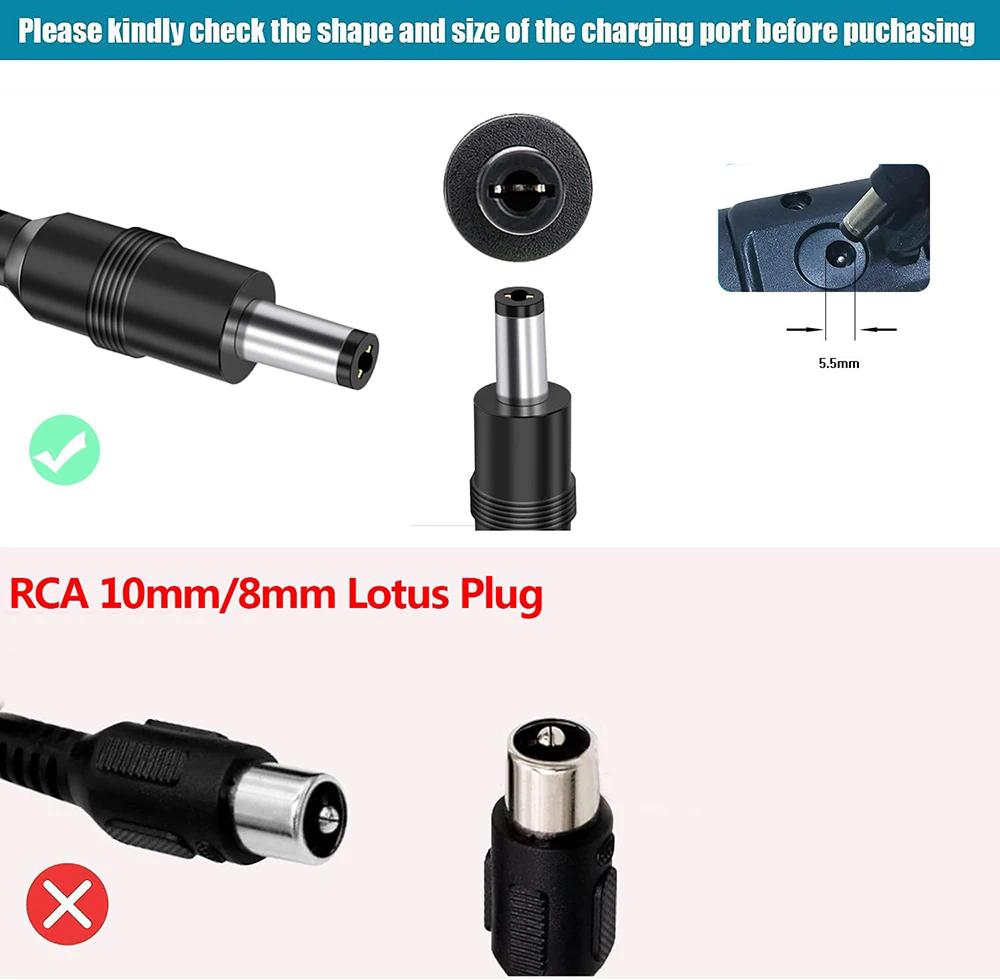

Output Plug: 5.5 x 2.5mm (Inner Diameter)
Input: AC 100 ~ 240V, 50/ 60Hz
Output: 36V-42V 2A 5A , 48V-54.6V 2A 5A
Notice before purchase:
1. This charger is only suitable for lithium batteries, and not for lead-acid batteries, lithium iron phosphate batteries, etc.
2. Due to the built-in cooling fan of the battery charger, noise may occur during the charging process, which is a normal phenomenon. If you are concerned about the impact of this noise, please do not purchase it!
3. Explanation on output voltage:
Do not connect batteries exceeding the maximum charging voltage, otherwise the charger will be damaged！
36V=nominal voltage (average operating voltage)
42V=fully charged voltage (maximum charging voltage)
48V=nominal voltage (average operating voltage)
54.6V=fully charged voltage (maximum charging voltage)
4. Do not charge indoors, please charge outdoors in a dry and suitable temperature.
5. Due to the manual measurement of the above values, there may be errors. The colors of products displayed on different monitors also vary. Please understand. Thank you.
Package includes:
lithium battery charger * 1
Protection characteristics
1. Short circuit protection
2. Over current protection
3. Overvoltage protection
4. Reverse polarity protection
5. Overheating protection
When the internal temperature is more than 85 ℃, it will stop automatically; When the temperature is lower than 75 ℃, it will open automatically.
Operating conditions:
Ambient temperature: - 5-40 ℃
Relative humidity: 5-95%
Maximum altitude: 10000m
Storage conditions
Ambient temperature: - 40-70 ℃
Relative humidity: 0-95%
Highest altitude: 20000 meters. seven hundred and eighty-seven
Product Details
Double sided cooling hole, more comfortable charging and constant temperature
Double-sided cooling holes
Charging with a constant temperature is more secure
7 protection systems and intelligent protection
Overcharge protection, overheat protection, short circuit protection, overdischarge protection, overpower protection, overvoltage protection, overcurrent protection
Smart chip, multi-layer protection
Components are from big brand suppliers
Stable performance to meet more requirements
New technology chipset, intelligent conversion, more stable performance, high current power supply, faster charging
Product certificate
Scope of use
Battery pack, Harley electric vehicle, balance car, electric four-wheel vehicle, electric vehicle, scooter, unicycle, robot, tricycle
Use and maintenance of the charger :
--1. When charging, first connector to the battery, then connect to AC; after full, cut off AC, then pull the battery plug.
--2. When the LED light turns green, please continue charging for 2-3 hours.
--3. Please do not run out of battery power, then charger. Otherwise the battery cannot be protected or even damaged.
--4. long-term shallow discharge battery, about 3 months, for a deep discharge.
--5.Please confirm your battery, Because it is used to charge the lithium battery. Do not use the charger on the LiFepo4 battery, otherwise the charger will be got incredibly hot.
Battery capacity: 6,000 m·Ah – 160 A·h
Power: 80 W
