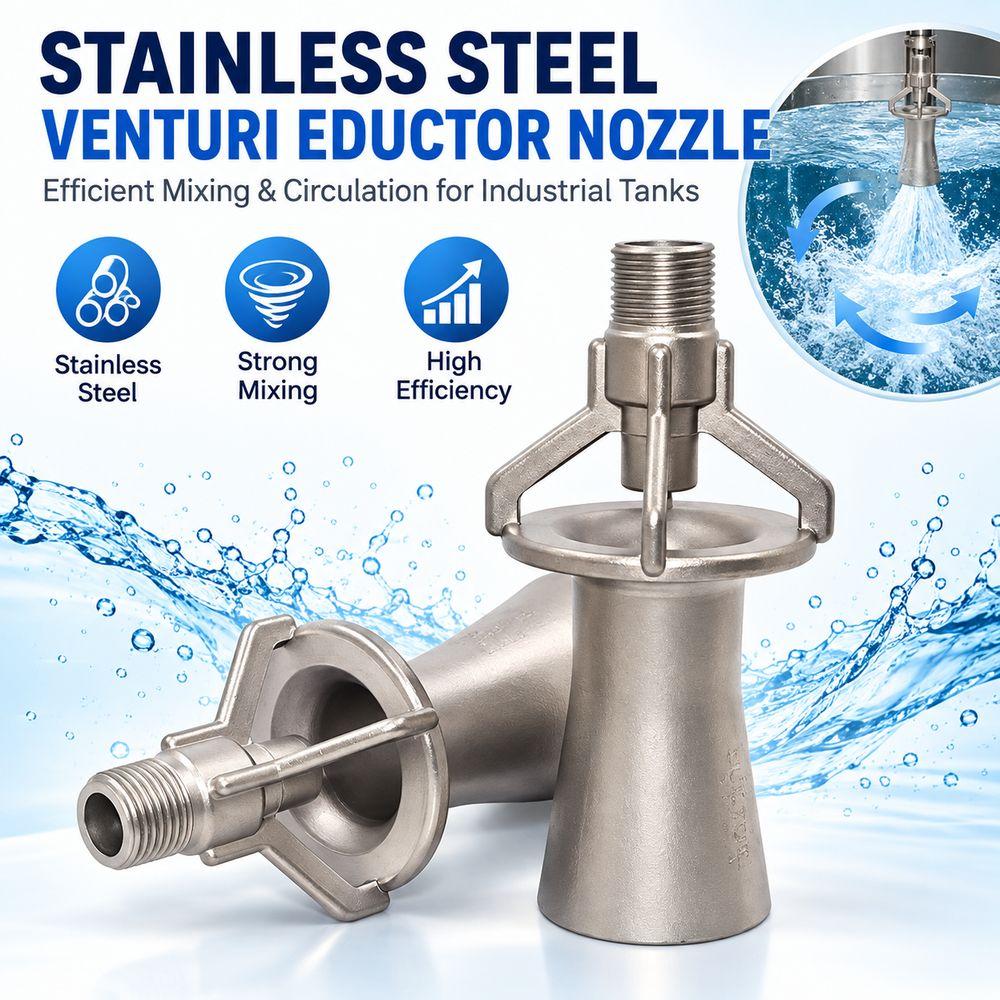

Stainless Steel Tank Mixing Eductor Bell Mouth Jet Mixing Nozzle Electrophoretic Coating

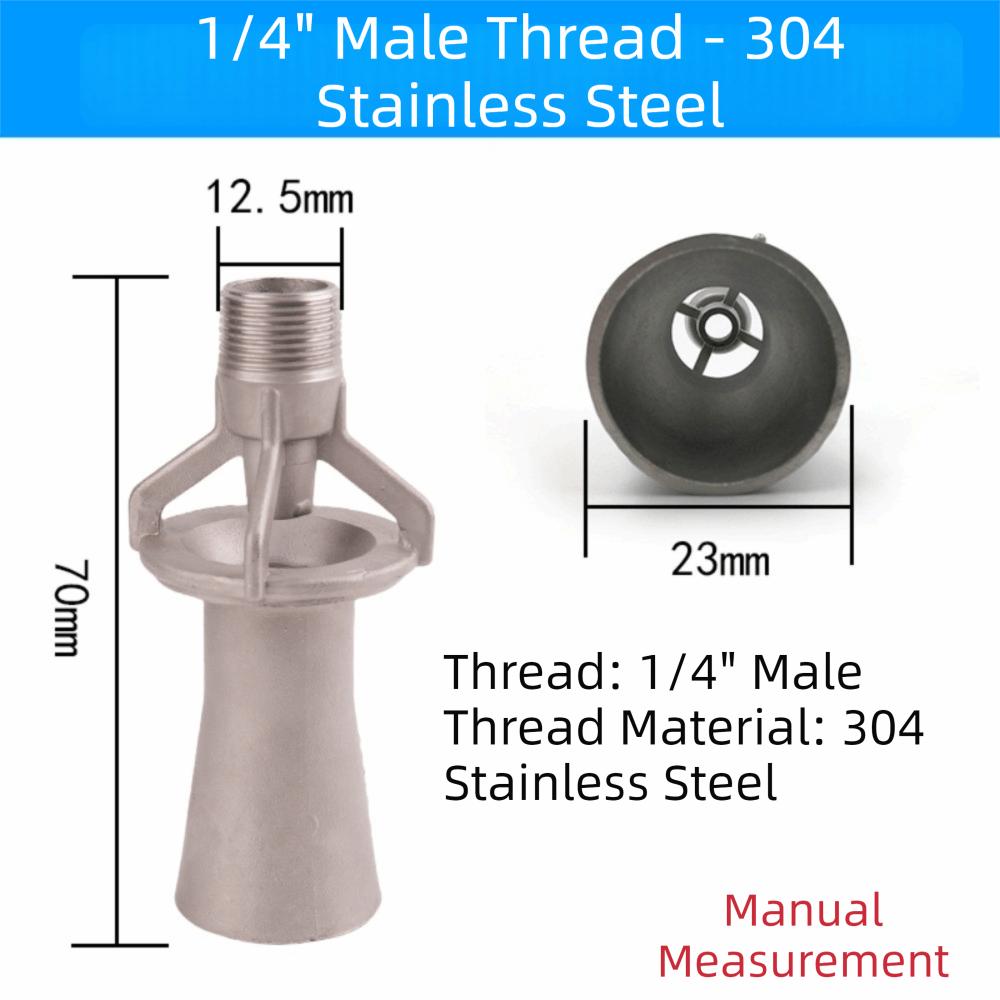

Label:Yes Application: Plating Tank Mixing, Electroplating Liquid Agitation, Electrophoretic Coating Dimensions: 12.5mm(0.49in) Inlet Diameter x 70mm(2.76in) Length x 23mm(0.91in) Outlet Diameter; 16.2mm(0.64in) Inlet Diameter x 116mm(4.57in) Length x 39mm(1.54in) Outlet Diameter; 20.3mm(0.80in) Inlet Diameter x 148mm(5.83in) Length x 51mm(2.01in) Outlet Diameter; 25.7mm(1.01in) Inlet Diameter x 165mm(6.50in) Length x 51mm(2.01in) Outlet Diameter; 32.5mm(1.28in) Inlet Diameter x 171mm(6.73in) Length x 58mm(2.28in) Outlet Diameter; 47.8mm(1.88in) Inlet Diameter x 258mm(10.16in) Length x 58mm(2.28in) Outlet Diameter Name: Venturi Mixing Eductor Nozzle Type: Industrial Liquid Mixing Nozzle Brand New and High Quality Color: Silver Size: Thread Options: 1/4in, 3/8in, 1/2in, 3/4in, 1in, 1.5in Material: 304 Stainless Steel or 316L Stainless Steel

Package Includes: 1PC Venturi Mixing Eductor Nozzle

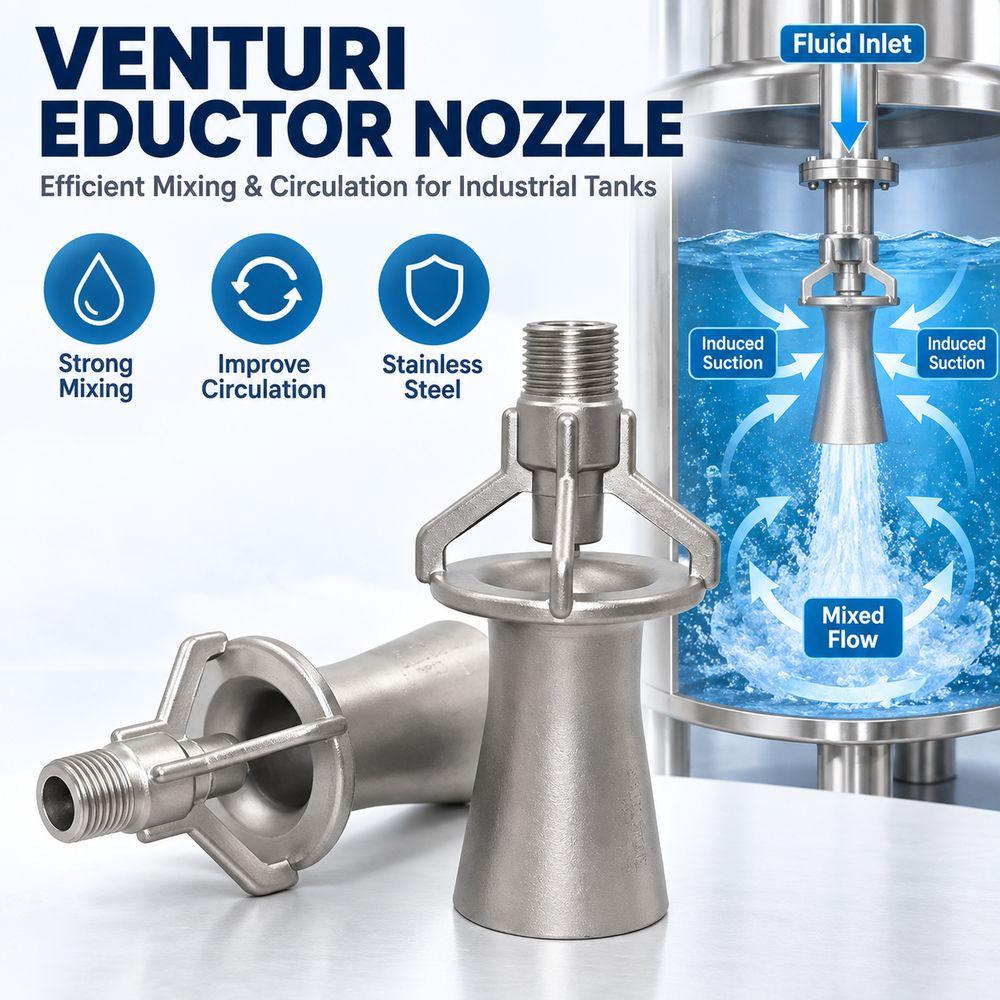

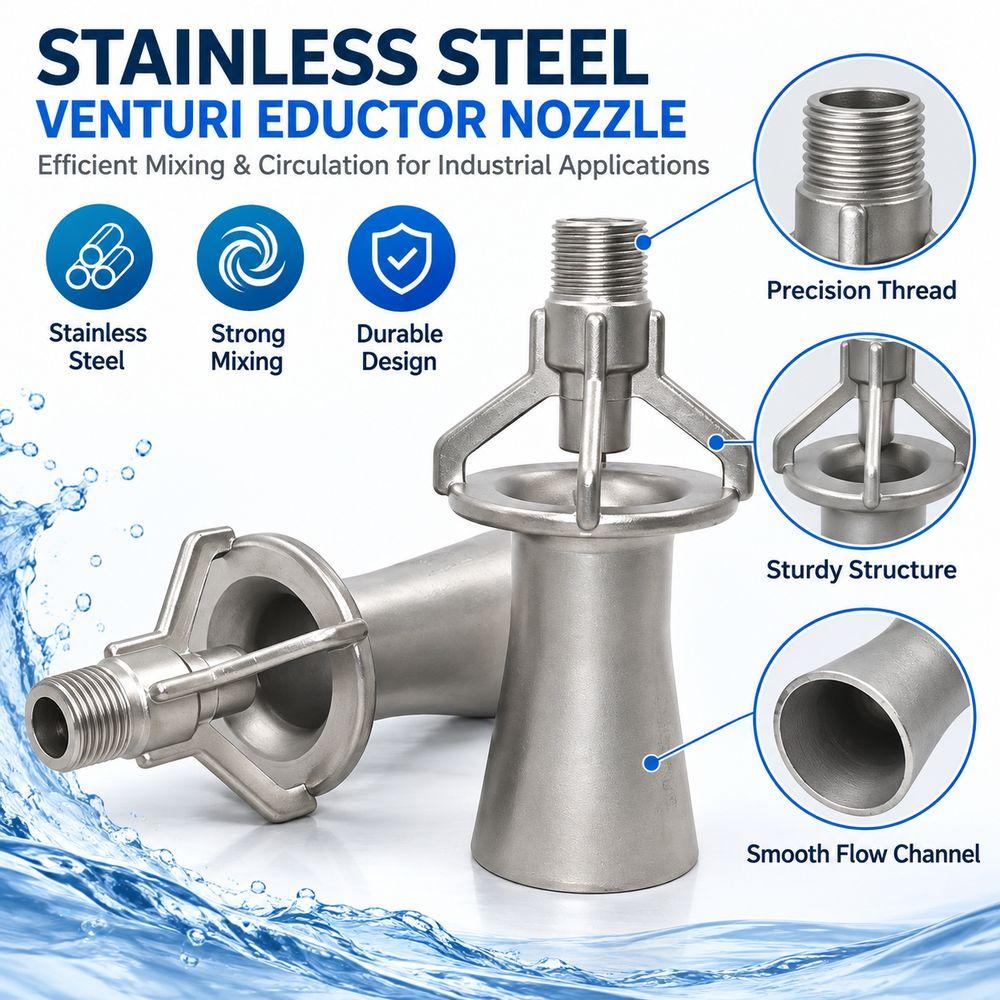

Features: 1. Venturi Mixing Structure: Uses the flowing liquid to draw in surrounding fluid and promote continuous circulation and uniform tank mixing 2. Stainless Steel Construction: Available in 304 or 316L stainless steel to suit demanding liquid-handling and industrial processing environments 3. Bell Mouth Outlet: The flared outlet helps disperse the liquid flow across a wider area for effective agitation 4. Male Thread Connection: Threaded inlet design allows convenient connection to compatible piping and circulation systems 5. Open Frame Design: Reinforced supports around the mixing section help maintain a stable structure while allowing surrounding liquid to enter 6. Industrial Application: Suitable for electroplating solutions, electrophoretic coating liquids, chemical tank circulation, and mixing systems

Tips: 1. Due to the light and monitors effect, colors may have lightly difference 2. Please allow slightly size errors due to manual measurement. Thank you for your understanding!
