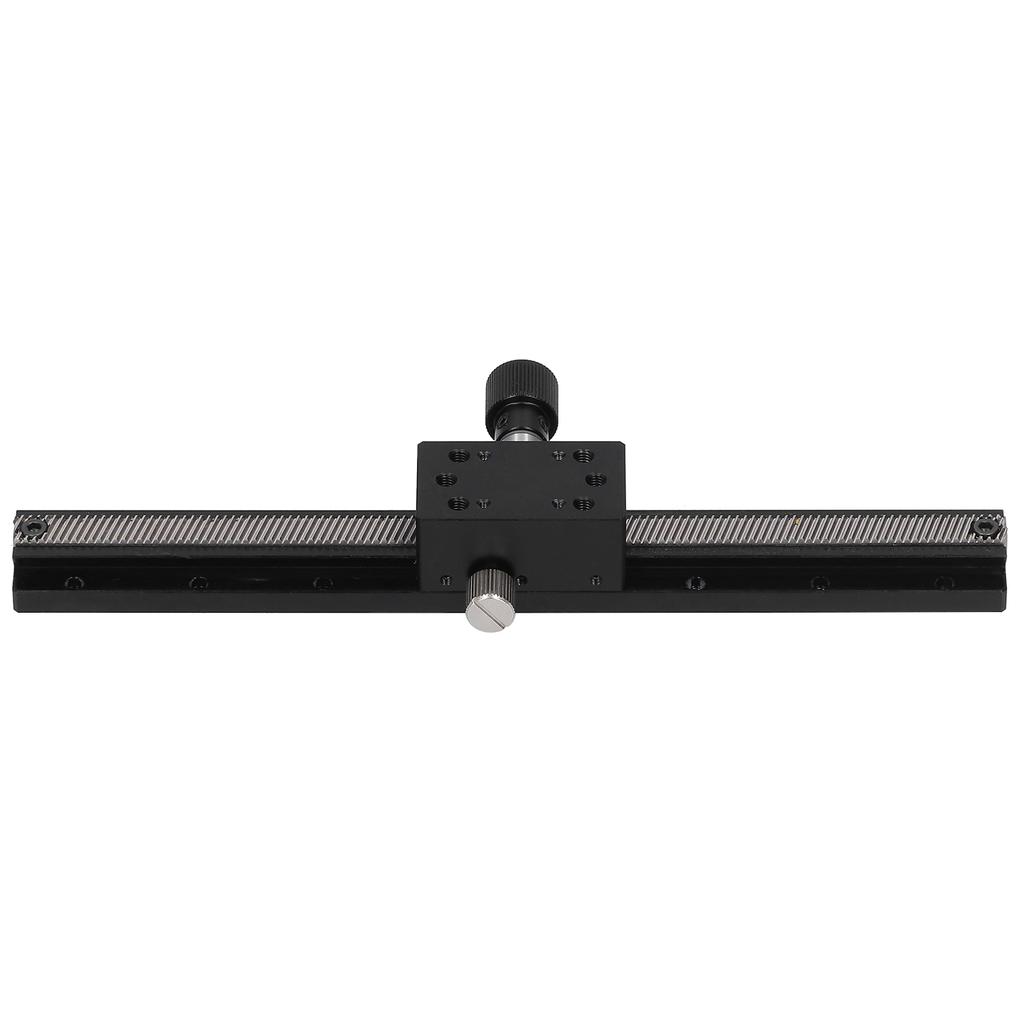

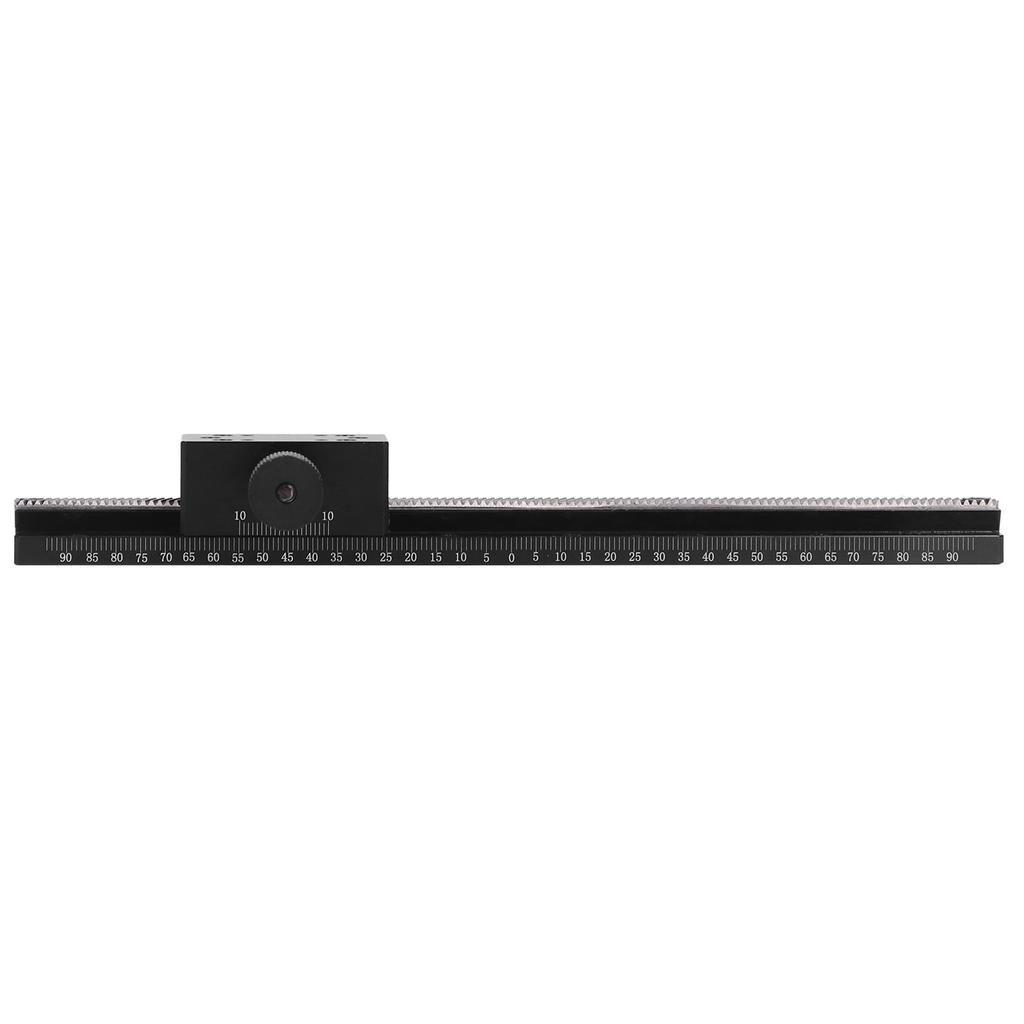

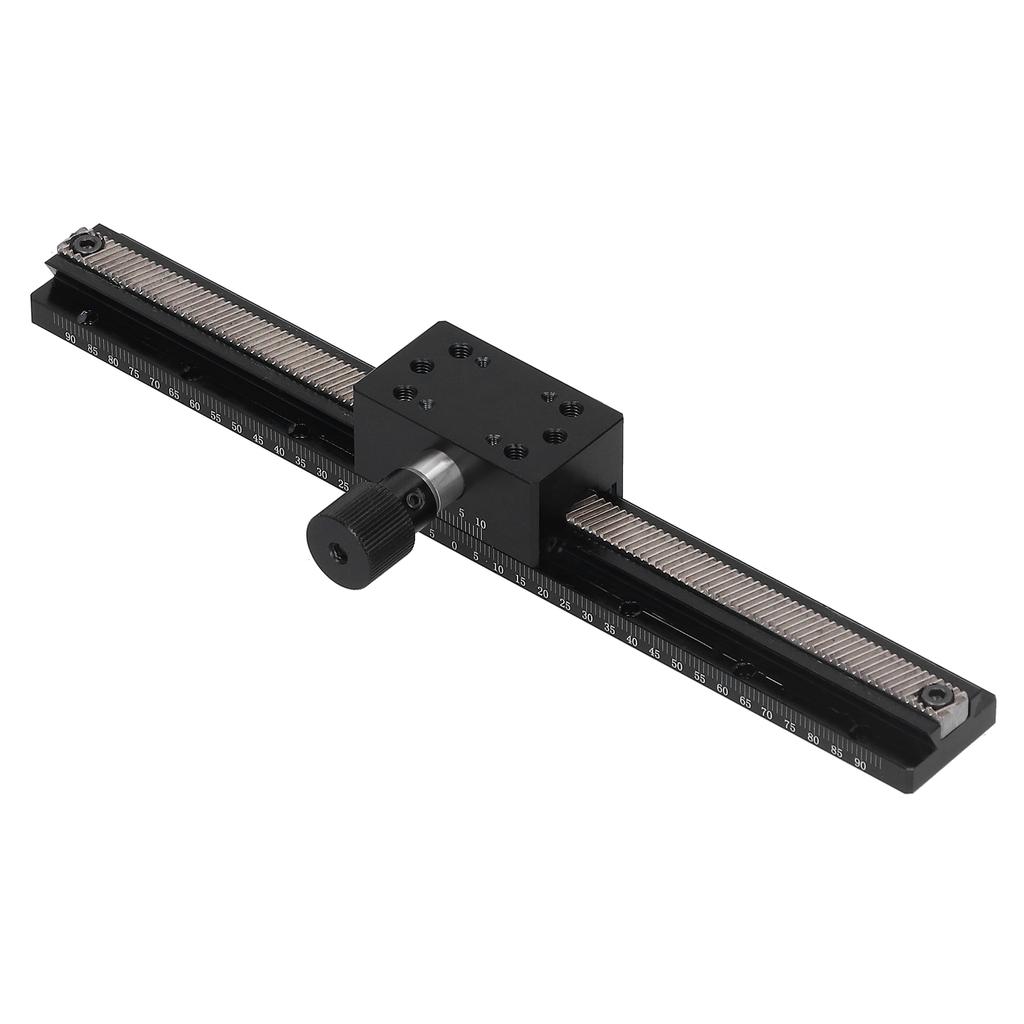

X Axis Linear Stage Dovetail Groove Long Stroke Fine Tune Platform Sliding Table HC25 A200

Feature: 1. Main body is made of aluminum alloy material with good quality, which is light weight 2. Strong, friction‑resistant and silent, possess scratch‑resistant, drop‑resistant, and corrosion‑resistant 3. Gear rotation handle control, dovetail groove type guide rail, come with high accuracy, smoothness, high load resistance, and stable movement 4. X‑axis linear stage provide R angle protection, which guarantee safety 5. Equipped with gear + rack type knob, you can manually rotate the knob to advance the gear drive Specification: Item Type: X Axis Linear Stage Model: HC25 A200 Table Size: Approx. 42 x 25mm 1.7 x 1in Moving Direction: X axis 1 direction Body Material: Aluminum alloy (black anodized) Drive Mode: Manually rotate the knob to advance the gear drive (gear + rack) Sliding Track: Rack guide Rail Type: Dovetail groove type Number of Threaded Mounting Holes on the Countertop: 6 Threaded Mounting Hole Diameter: Approx. 4mm 0.2in Threaded Mounting Hole Depth: Approx. 6mm 0.2in Horizontal Load Resistance: 29.4N(3Kgf)Length: Approx. 200mm 7.9inMoving Stroke: + Approx. 90mm 3.5in Minimum Scale: 0.01mm Straightness: 0.03mmScope of Application: Optical equipment, measuring instruments, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, handling machines, processing machines, printing machines and others. Package List: 1 x X Axis Linear Stage
