High-concerned chemical : none
Communication method : Other
Model Number : Modules
Brand Name : LONGPEAN
Origin : Mainland China
Certification : NONE

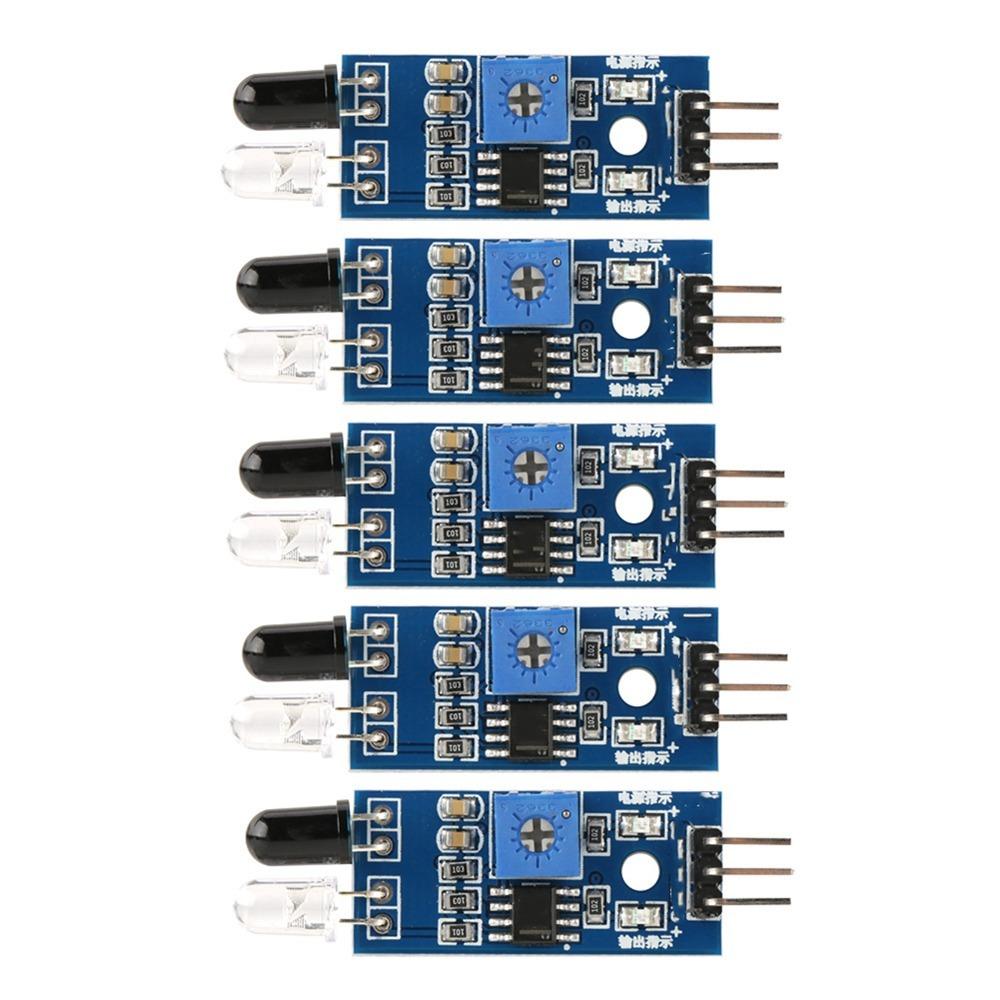

1.IR Infrared Obstacle Avoidance Sensor Module has a pair of infrared emitting and receiving tubes, and the emitting tubes emit infrared rays with a certain frequency. When the module detects the front obstacle signal, the green indicator light on the circuit board lights up, and at the same time, the OUT port continuously outputs low-level signals.
2.The effective distance range of 2 ~ 30cm(0.79 ~ 11.81in) and the detection angle is 35, the working voltage of 3.3V- 5V. Module size: 3.1CM(1.22in)*1.4CM(0.55in).The detection distance can be adjusted by potentiometer. Turning the potentiometer clockwise increases the detection distance; turning it counterclockwise decreases the detection distance.
3.Active infrared reflection detecting sensor, so the target reflectivity and shape is the key of the detection range.Black color has the minimum detection range, white has the maximum; small objects have short detection range, large objects have long dete
4.The OUTput port out of the sensor module can be directly connected with the IO port of the microcontroller, or it can directly drive a 5V relay. Connection mode: VCC-VCC; GND-GND; OUT-IO
5.Module can be widely used in robot obstacle avoidance, obstacle avoidance car, assembly line counting, black and white line tracking and many other occasions. Description:

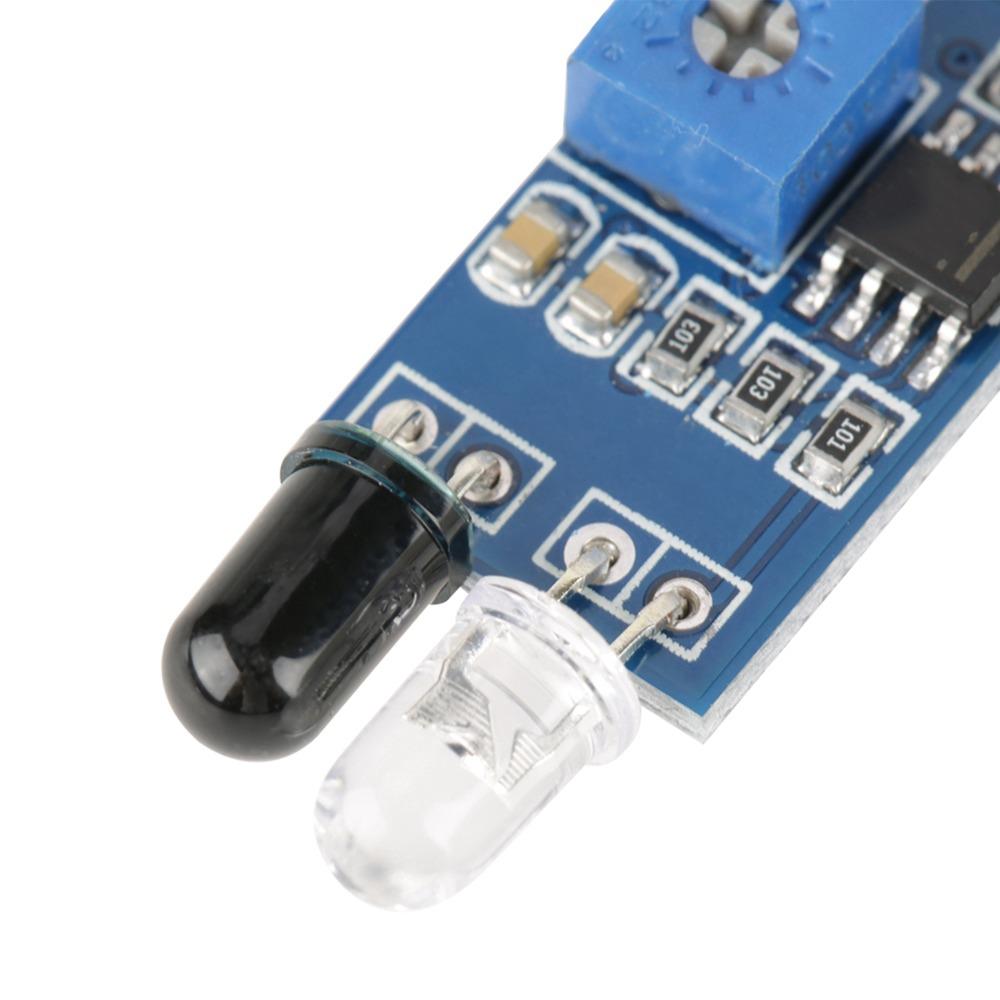

The sensor module is adaptable to ambient light. It has a pair of infrared transmitting and receiving tube. Transmitting tube sends out a certain frequency IR which will be reflected when detecting obstacles (reflecting surface) and received by receiving tube. After processing with comparator circuit, green light is on and signal output interface outputs digital signal (a low voltage level signal). Detection distance can be adjusted with the potentiometer, effective distance range 2~30cm(0.79~11.81in), working voltage 3.3V to 5V.
Features:
The detection range of the sensor can be adjusted with potentiometer, little interference, easy assembly and use.
It can be widely used for robot obstacle avoidance, obstacle avoidance car, assembly line, black and white line tracking and many other occasions.
When signal module detects obstacles ahead, the green indicator light on the circuit board is on and at the same time the OUT port outputs low level signal; detection distance can be adjusted with potentiometer, clockwise to increase detection distance;counter-clockwise to reduce detection distance.
Active infrared reflection detecting sensor, so the target reflectivity and shape is the key of the detection range.Black color has the minimum detection range, white has the maximum; small objects have short detection range, large objects have long detection range.
Sensor module output port OUT can be directly connected to micro-controller IO port, also can drive a 5V relay directly.
Comparator uses the LM393 chips, stable performance.
Can use 3 to 5V DC power supply.When power on, the red power indicator light is on.
Designed with 3mm(0.12in) screw holes for convenient fixation and easy installation;
Each module has already adjusted threshold compare voltage with potentiometer well, so please do not arbitrarily adjust potentiometer.
Specifications:
Working Voltage: 3.3~5V
Detection Angle: 35°
Detecting Range: 2~30cm(0.79~11.81in)
Wiring: VCC-VCC; GND-GND; OUT-IO
Size:3.1*1.4CM(1.22*0.55in)
Weight: 2.8g(approx.)
Quantity: 5pcs
Module Interface:
VCC: External connection of 3.3V-5V voltage(can be directly connected to 5V micro-controller and 3.3V micro-controller)
GND: External GND
OUT: Digital output port(0 and 1)
Package Includes:
5 x Modules
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
