Swivel wheel with brake 75mm 60kg BDPE 0751 thermoplastic

Swivel wheel, rolling set, brake, 75mm, 60kg, BDPE 0751, thermoplastic

The auction applies to 1 piece

At other auctions, we offer sets of 4 pieces

1️⃣ The most important information:

✅ Wheel swivel 75mm

✅ Load capacity up to 60kg (when assembling 4 pcs. load capacity 180kg )

✅ Tread made of thermoplastic rubber (TPE)

✅ Rubber resistant to weather conditions, dirt does not adhere to it

✅ Does not scratch the surface

✅ Mounting on plate

✅ Bearing plain, metal bearing protection

✅ Tread hardness 75° Shore A

✅ Tongue brake (plate)

2️⃣ Application :

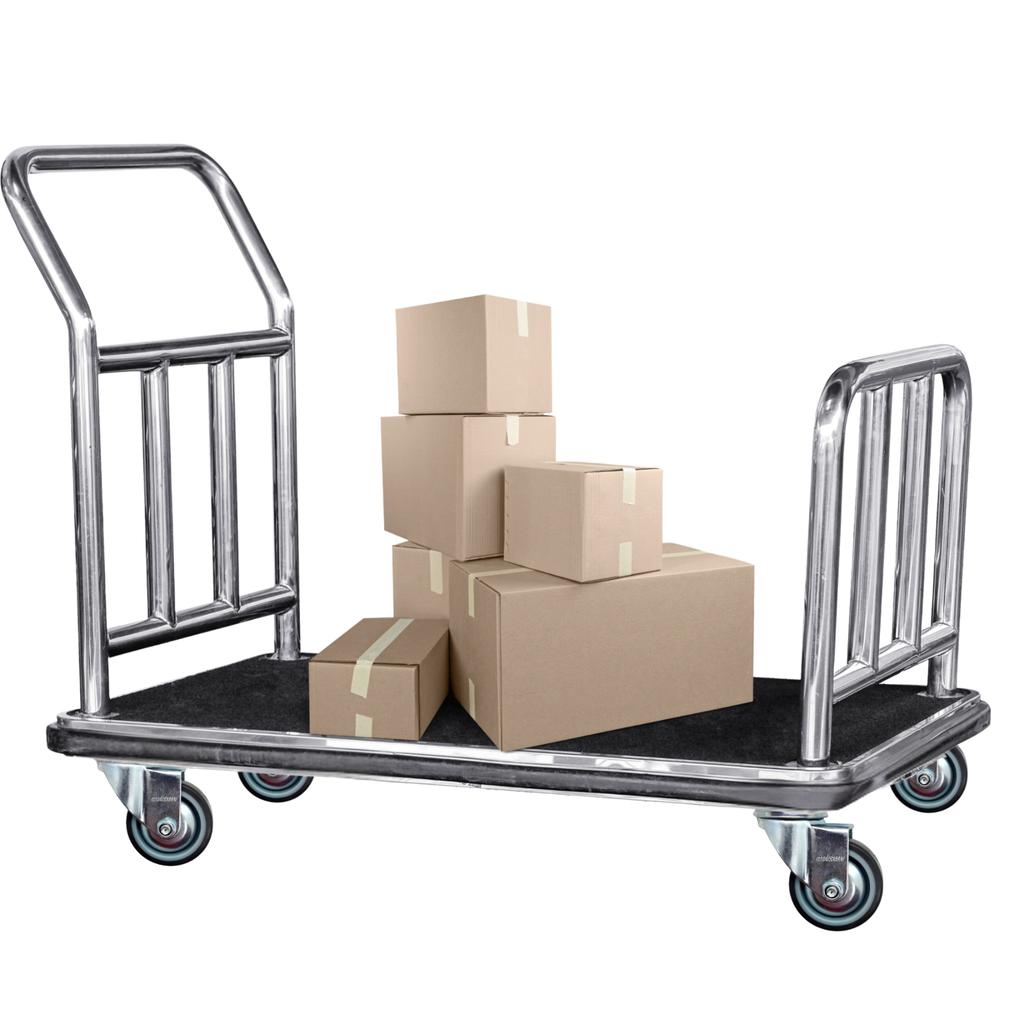

• all types of transport and warehouse trolleys

• catering and hotel trolleys

• goods baskets, advertising displays

• wardrobes, armchairs, shelves, tables

3️⃣ Which wheel should you choose?

Apart from ground conditions, load capacity is one of the most important criteria for choosing wheels. To determine the required load capacity, the following variables must be known:

• the equipment's own weight

• the maximum load weight or load capacity

• the number of wheels that will be used

The wheel must always be in contact with the ground. In practice, this rarely occurs due to thresholds or unevenness in the ground. As a result, the total load often ends up on three wheels, and the load per wheel increases.

Therefore, the total load must be divided by three wheels instead of four, to achieve a safe load capacity.

When determining the safe total load capacity for a 4-wheeled device, we take into account the weight of the device plus its maximum load. Divide the sum by 3 to obtain the safe load capacity that should be assumed for 1 wheel.

In other cases, the load capacities are distributed as follows:

1) 1 swivel caster + 2 fixed casters

System suitable for small loads. Easily maneuverable, but unstable.

2) 4 swivel casters

Easy to maneuver in all directions, but difficult to operate in a straight line.

3) 2 swivel casters + 2 fixed casters

easy to operate in a straight line, but more difficult when changing direction.

4) 4 fixed sets (2 central upper)

Easy to operate in a straight line, easy to maneuver, but unstable.

5) 2 fixed sets + 4 swivel sets

Recommended setup for heavy loads and long vehicles. Easy to maneuver in all directions and good operation in a straight line.

* Thermoplastic rubber TPE

• easy handling on uneven ground

• quiet operation

• low rolling resistance

• resistance to oils, fats, detergents

• less suitable for long-term static use

• limited load capacity

** Bearing plain

Demonstrates good rolling properties. The bearings are used in wheels made of plastic. Under normal conditions, plain bearings require no maintenance, are insensitive to shocks, and are corrosion-resistant.
