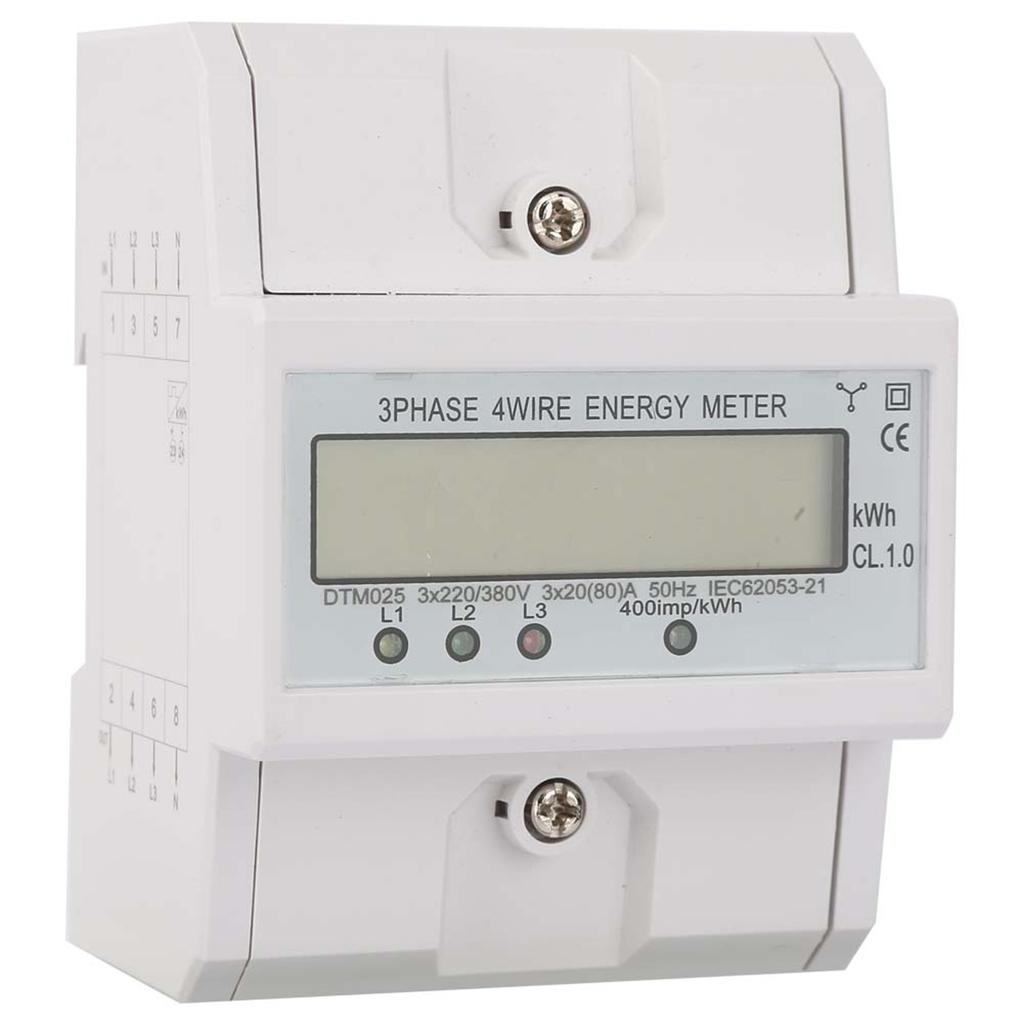

220 380V 20‑80A Energy Consumption Digital Electric Power Meter 3 Phase 4P KWh Meter with LCD

Feature: This product adopts transparent shell, which is convenient to observe the operation status of electronic components inside the meter. LCD backlight display is used to read data clearly. The power consumption of the product is very low. The theoretical power consumption is less than or equal to 2 W. The product has stable performance and can run steadily in the range of 20 55 degrees Celsius. Products are widely used in power metering systems. Specification: Model: DTM024 Voltage: 3x220 380V Current: 3x20 (80) A Accuracy level: 1.0 Standard: IEC62052 11 IEC62053 21 Frequency: 50 Hz Pulse constant: 400imp kWh Display: LCD 6+2 Power consumption: less than 2W, 10VA Starting current: 0.004lb Working temperature 20 55 degrees C Storage temperature: 25 70 degrees C Working voltage: 0.9 1.1 rated voltage Maximum voltage: 0.8 1.15 rated voltage Annual average humidity value: less than 75percent Creep: less than 1 pulse when the rated voltage is 115percent or no current Shell color: White Weight: 399g 14.0oz Package list: 1 * Electric Power Meter Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product. .
