Feature:
1. LED 3 digits display of voltage, current and power, high precision with single channel output.
2. Voltage stabilization, current limiting, simple operation feature the DC power supply.
3. Over voltage conservation(OVP), over current conservation(OCP) with over temperature conservation.
4. Continuously adjustable output of voltage and current with fine regulating and coarse regulating.
5. Automatic conversion of voltage stabilizing and current stabilizing, adopt current limiting conservation mode, and any external service state will not be damaged.
6. With replaceable fuse for safe use, convenient to change the fuse.
7. Applied in production line test, electrical maintenance, aging products, battery charging, laboratories scientific research and teaching and all other need DC regulated power supply.
8. Over voltage conservation(OVP), over current conservation(OCP) with over temperature conservation. Continuously adjustable output of voltage and current with fine regulating and coarse regulating.
9. Automatic conversion of voltage stabilizing and current stabilizing, adopt current limiting conservation mode, and any external service state will not be damaged. With replaceable fuse for safe use, convenient to change the fuse.
Specification:
The NPS W series is a three window display mini DC power supply that simultaneously displays voltage, current, and power. This product improves the shortcomings of traditional linear power supplies that are bulky, heavy, and inefficient.
Features:
LED 3 digits display of voltage, current and power, high precision with single channel output.
Voltage stabilization, current limiting, simple operation feature the DC power supply.
Over voltage conservation(OVP), over current conservation(OCP) with over temperature conservation.
Continuously adjustable output of voltage and current with fine regulating and coarse regulating.
Automatic conversion of voltage stabilizing and current stabilizing, adopt current limiting conservation mode, and any external service state will not be damaged.
With replaceable fuse for safe use, convenient to change the fuse.
Applied in production line test, electrical maintenance, aging products, battery charging, laboratories scientific research and teaching and all other need DC regulated power supply.
Specifications:
Color: White Black (Optional)
Plug Type: AU EU US UK (Optional)
Model: NPS1203W
Output Voltage: 0 120V
Output Current: 0 3A
Output Power: 360W
WORKING ENVIRONMENT:
Input Voltage: AC 230V 115V + 10percent ; 50Hz 60Hz
Working Temperature: 0 40 celsius ; Relative Humidity: <80percent RH
Storage Temperature: 10 70 celsius ; Relative Humidity: <70percent RH
CONSTANT VOLTAGE CV:
Voltage Stability: 0.1percent + 3mV
Load Stability: 0.2percent + 3mV
Ripple Voltage: =0.5percent Vp p
0 to rated voltage continuously adjustable
CONSTANT VOLTAGE CC:
Current Stability: 0.1percent + 3mA
Load Stability: 0.2percent + 3mA
Ripple Current: =0.5percent Vp p
Recovery Time: =500Microsecond
Temperature Coefficient: =100ppm celsius
0 to rated current continuously adjustable

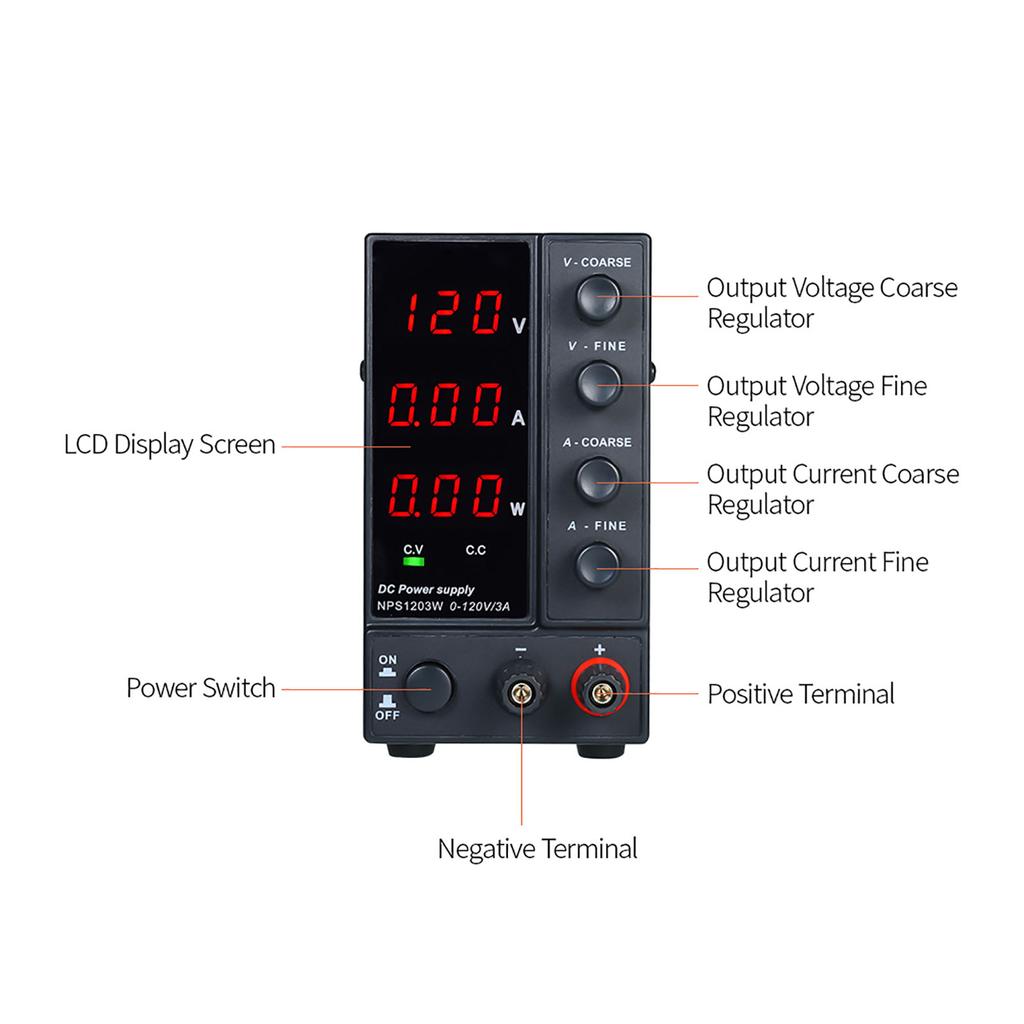

DISPLAY:
Three window digital tube display: voltage, current, power
Display Accuracy: 0.5percent + digits
Display Resolution: voltage 0.1V; current 0.01A; power 0.1W 1W
SIZE AND WEIGHT:
Item Size: Approx. 230 * 130 * 70mm 9.06 * 5.12 * 2.76in
Item Weight: 1372g 48.39oz
Package Weight: 1550g 54.69oz
Package Size: Approx. 29 * 18 * 10.5cm 11.42 * 7.09 * 4.14in
Package List:
1 * DC Power Supply
1 * Power Cord
1 * Alligator Clip Line
1 * User Manual (English)
Package List:
1 * DC Power Supply
1 * Power Cord
1 * Alligator Clip Line
1 * User Manual (English)
