About this item:
1.High-Power Dual-Channel Charging The HTRC T240 delivers up to 150W AC and 240W DC total power with two independent channels, supporting 10A per channel for fast, efficient charging of RC batteries.
2.Smart Balance Charging for LiPo/LiFe Batteries Equipped with intelligent balancing, it supports 1-6 cells for LiPo/LiFe/LiHV and 1-15 cells for NiCd/NiMH, ensuring even charge distribution with 500mA/cell balancing current.

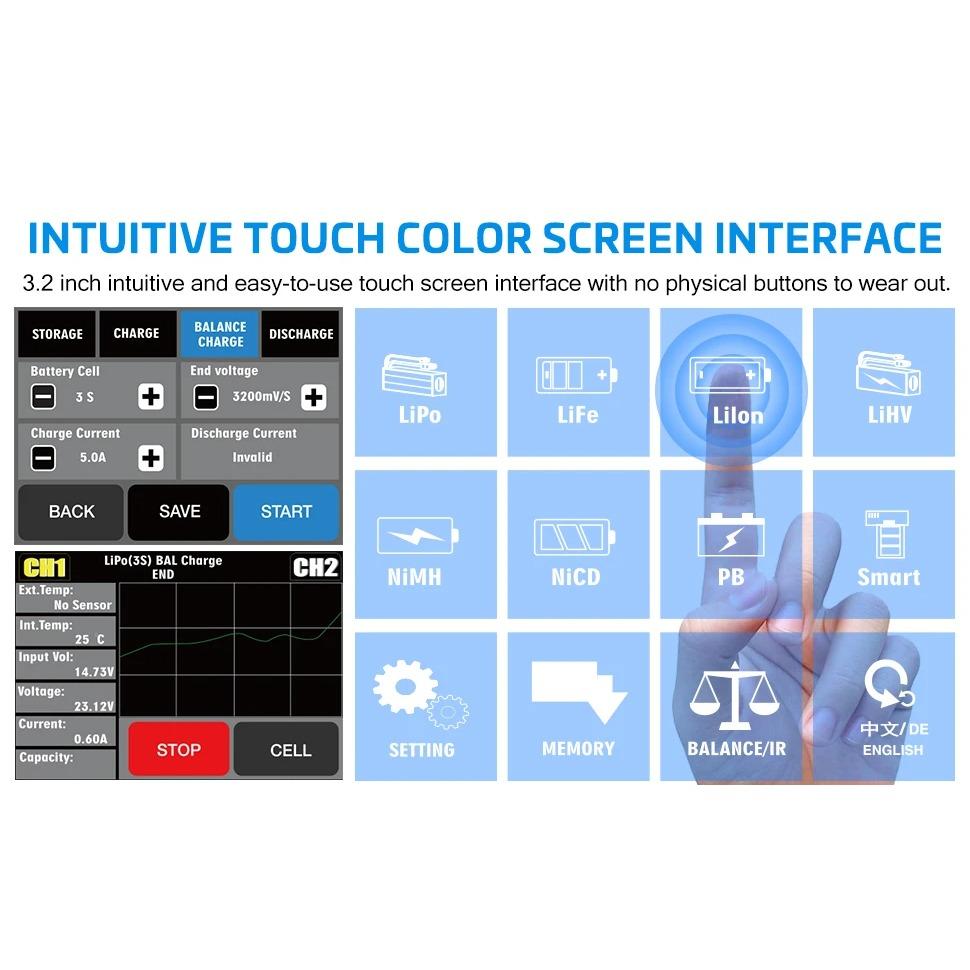

3.Touch Screen & Dual-Channel Control Features a clear touch screen display and dual-channel operation, allowing independent control of two batteries with real-time monitoring of voltage, current, and charge status.
4.Wide Input Compatibility & Multiple Plugs Supports AC 100-240V and DC 11-18V input with AU, EU, UK, US plugs, making it ideal for global use across different power standards and charging environments.
5.Fast Discharge & High Efficiency Offers 2A discharge current per channel with up to 10W discharge power, enabling safe and efficient battery discharge for maintenance and testing of RC model batteries.
6.Compact Design & Certified Safety Measuring 145 x 105 x 64mm, this charger is compact and portable. Certified with CE, FCC, RoHS, UL for reliable and safe operation in any setup.
7.Includes Full Package & Easy Setup Comes with a 1-piece pack and a 215 x 155 x 75mm package, including all necessary components for immediate use with RC models and standard batteries.
Specification:
Firmware update.
Battery Meter:Display lithium battery cell counts,battery capacity percentage,each cell's voltage. ( Does not support 1s battery )
TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
Lithium Battery internal Resistance Check: can display each cell's resistance.( Does not support 1s battery )
Calibration: cell voltage monitoring and calibration. ( Calibration function for 6s lithuim battery only )
Smart battery:Smart battery I,II,III,( Need optional DJI Charging cable )
Re-peak and cycling of NiMH/NiCD battery.
Maximum Safety:Automatic charge current limit,low input voltage setting,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
Product size:14.5*10.5*6.4
Material: plastic
Package list:
1x T240 Charger
2x Charge cable banana plug to T-Plug
2x Extension charge cable T-Plug to XT60
2 x Extension cable T-plug to Tamiya
2 x Extension cable T-pplug to crocodile clip
2 x Balance Board Cable
1x AC Cord (US EU UK AU optional)
1x DC Cord
1x User's Manual
