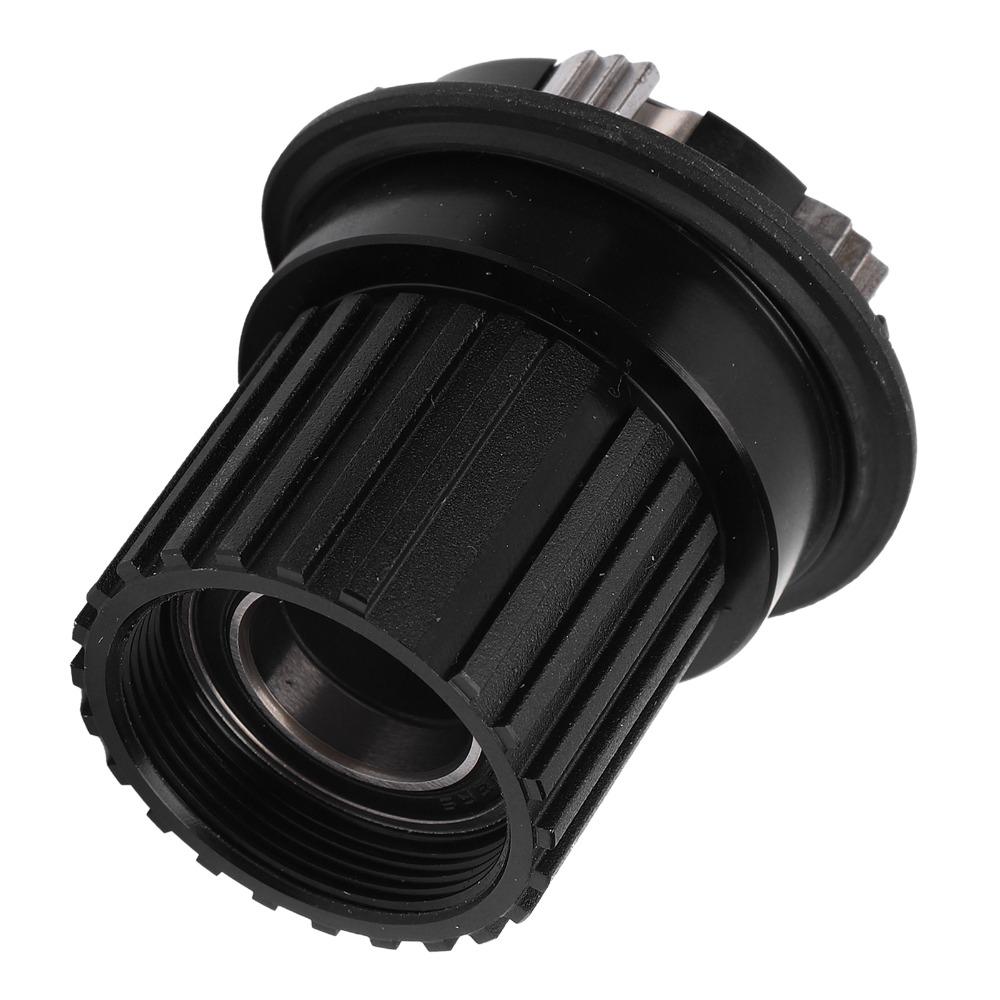

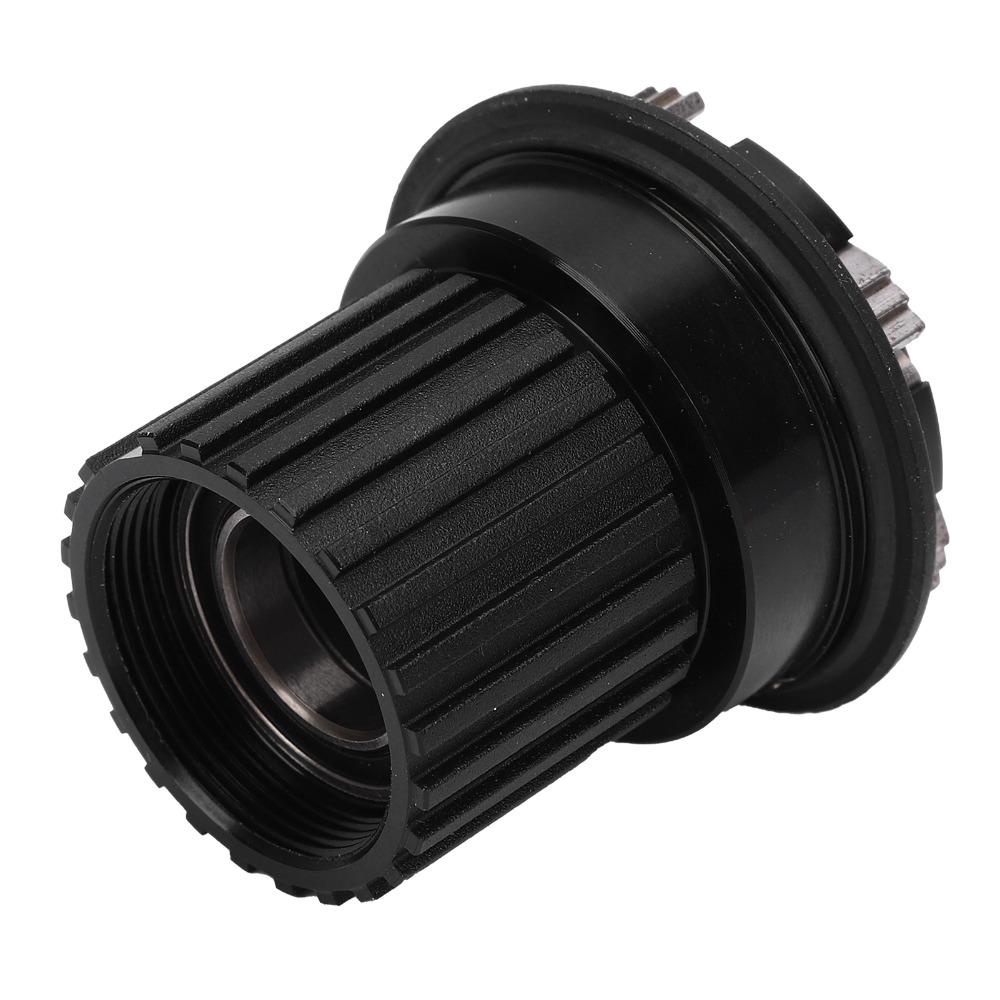

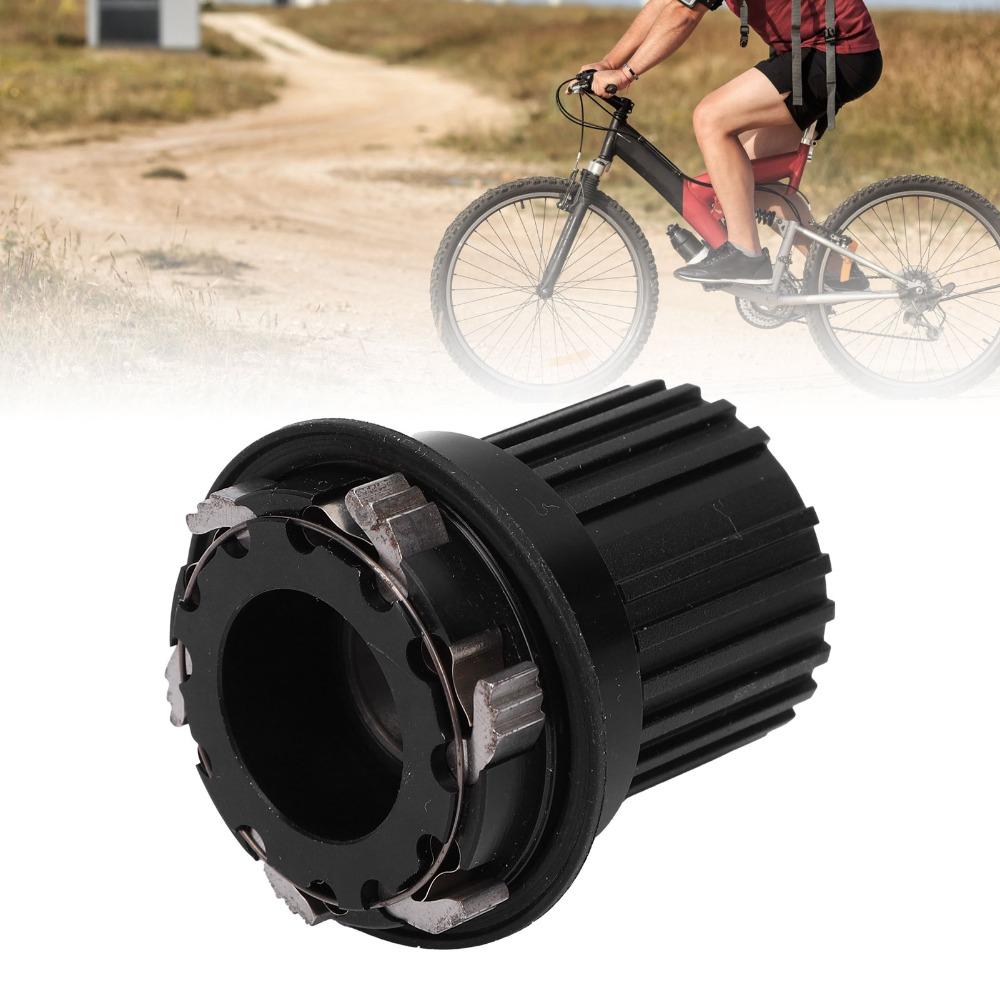

Black Bike Freehub Body for Shimano 12 Speed Micro Spline cassette Bicycle Rear Hub Repair

Label:Yes Compatibility Details: This Micro Spline hub cassette body is designed for compatible rear hubs using a for Shimano 12 speed Micro Spline cassette system. It fits 15 mm / 0.59 in axle bore hub structures and is not suitable for HG, XD, or other cassette standards. Key Size Information: Weight is about 91.5 g. Total height is about 45.6 mm / 1.80 in, lower body height is about 26 mm / 1.02 in, top base diameter is about 36.8 mm / 1.45 in, bottom body diameter is about 32.3 mm / 1.27 in, spring base height is about 7 mm / 0.28 in, and axle bore diameter is about 15 mm / 0.59 in. Package and Note: Package includes 1 bike hub cassette body and 1 accessory. This part is not universal. Please check your original hub structure, pawl design, bearing position, axle bore, cassette type, and ratchet ring size before purchase. Professional installation is suggested for rear hub repair. AL7075 Aluminum Alloy: Made of AL7075 aluminum alloy, this rear hub body offers a light and firm structure for bicycle repair and drivetrain conversion. The black finish matches many for MTB and road bike wheel setups. 6 Pawl Engagement Design: Built with 6 pawls with Metal Spring Plates in a 6 x 3P layout, this cassette body supports stable engagement during riding. The 120 click sound design gives a clear mechanical feel when the wheel rotates.

Product Name: 6 Pawl Micro Spline Freehub Body Item Type: Bicycle Freehub Body / Rear Hub Cassette Body Material: AL7075 Aluminum Alloy Color: Black Weight: Approx. 91.5 g Axle Bore Diameter: Approx. 15 mm / 0.59 in Bearing Structure: 2 Bearings Pawl Structure: 6 Pawls with Metal Spring Plates, 6 x 3P Ratchet Ring Compatibility: Approx. 44 mm outer diameter x 7.1 mm height, 60T Engagement Sound: 120 Clicks Cassette Compatibility: Compatible with Shimano 12 Speed Micro Spline cassette Freehub Standard: Micro Spline

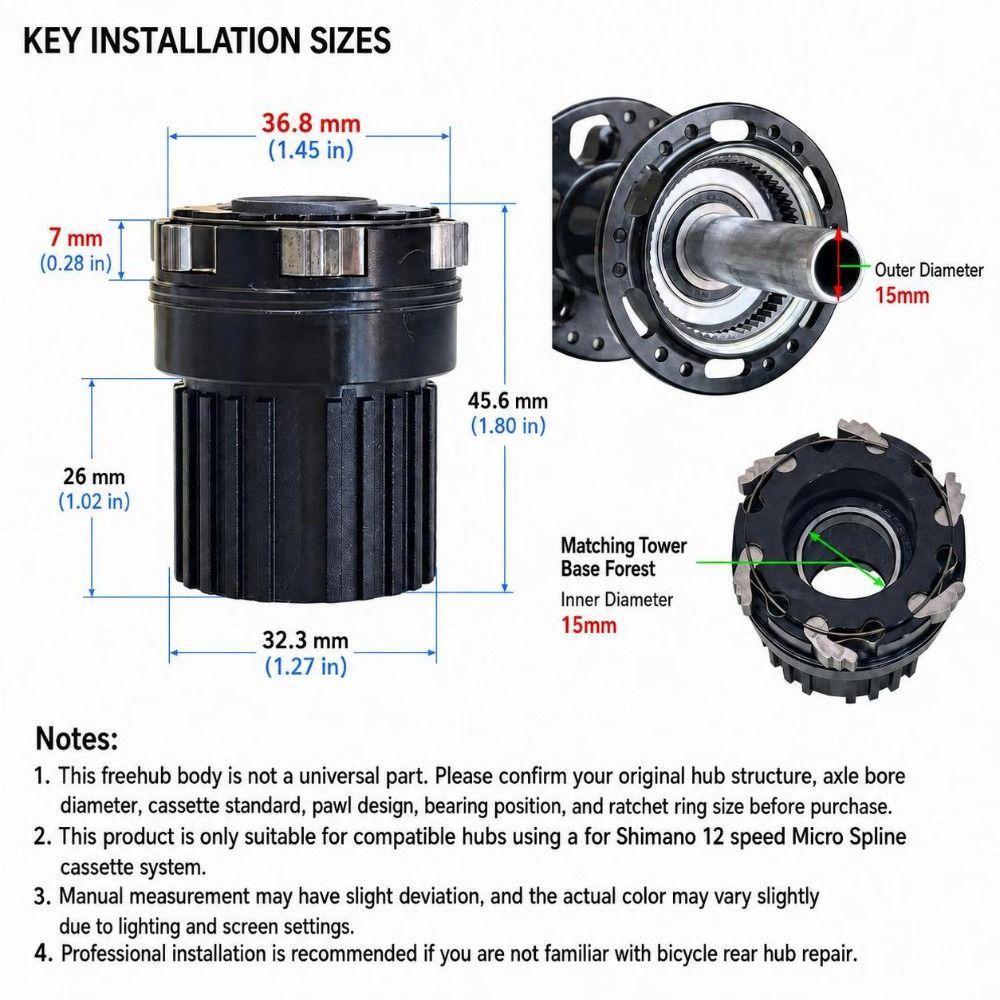

Size Information Total Height: Approx. 45.6 mm / 1.80 in Lower Body Height: Approx. 26 mm / 1.02 in Top Base Diameter: Approx. 36.8 mm / 1.45 in Bottom Body Diameter: Approx. 32.3 mm / 1.27 in Spring Base Height: Approx. 7 mm / 0.28 in Axle Bore Diameter: Approx. 15 mm / 0.59 in

Package Includes 1 x Bike Freehub 1 x Accessory

Note 1.This freehub body is not a universal part. Please confirm your original hub structure, axle bore diameter, cassette standard, pawl design, bearing position, and ratchet ring size before purchase. 2.This product is only suitable for compatible hubs using a for Shimano 12 speed Micro Spline cassette system. 3.Manual measurement may have slight deviation, and the actual color may vary slightly due to lighting and screen settings. 4.Professional installation is recommended if you are not familiar with bicycle rear hub repair.
