SOLID ELECTRONIC BUILD
MULTI-INDUSTRY USE
Built with electronic circuits and integrated parts that hold up well over time.
Adjusts motor speed from 90-1400 r/min at 50Hz, or 90-1700 r/min at 60Hz, giving you flexible control across different tasks.
Compact in size with tight speed control and a broad adjustment span, it keeps running smoothly through extended use.
BROAD SPEED RANGE
Fits production lines across packaging, printing, food processing, electronics, instrumentation, medical equipment, and clothing manufacturing where speed control is needed.
AC220V MOTOR CONTROL
COMPACT & PRECISE
Built for AC220V 50/60Hz motors, this speed controller handles standard single-phase power with ease.
Specifications:
Power supply:AC220V50/60hz
Rated power: 400W
Environment temperature: - 10 ~ + 50℃;
Relative humidity:<90%;
Speed regulation range: 90-1400r/min 50HZ, 90-1700r/min 60HZ
Material:ABS
Color: Black
Weight: 295g

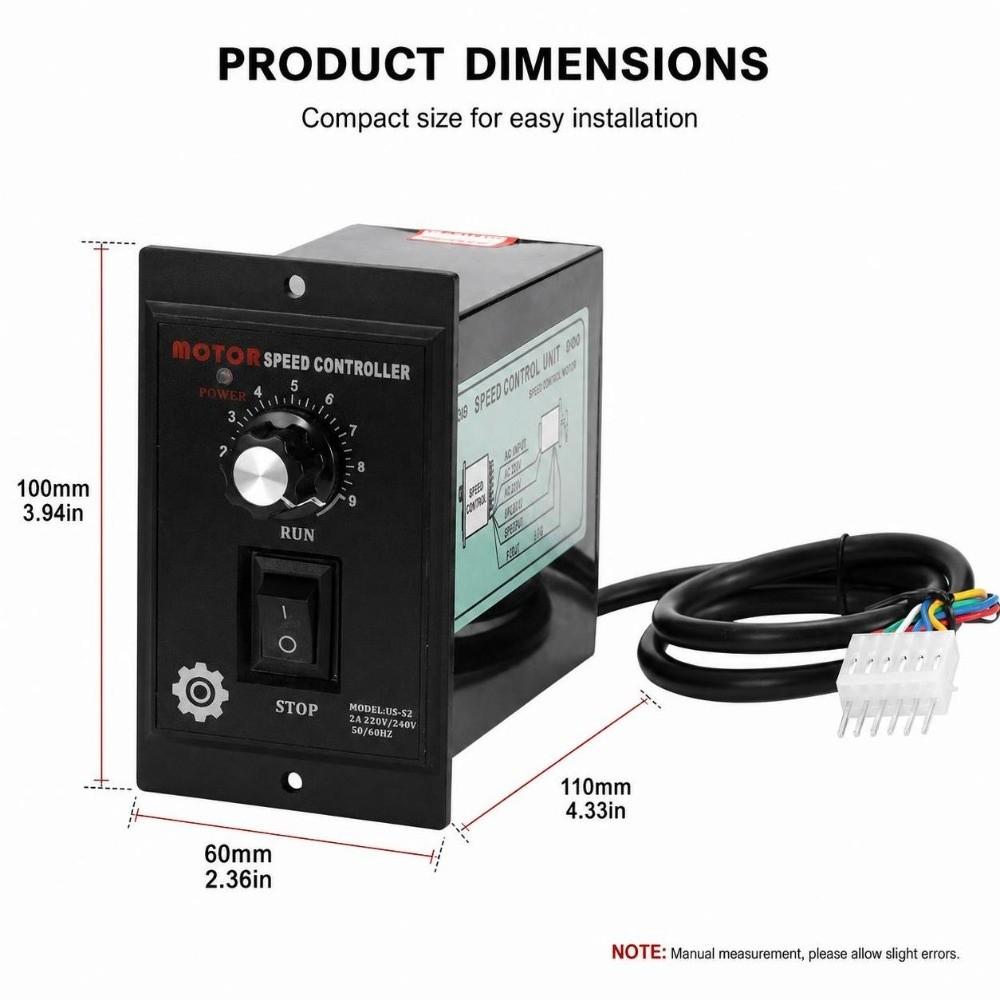

Size: Approx. 110 x 100mm(4.33 x 3.94in)
Installation dimensions: 96 * 54mm(3.78 * 2.13in)
Wiring method:

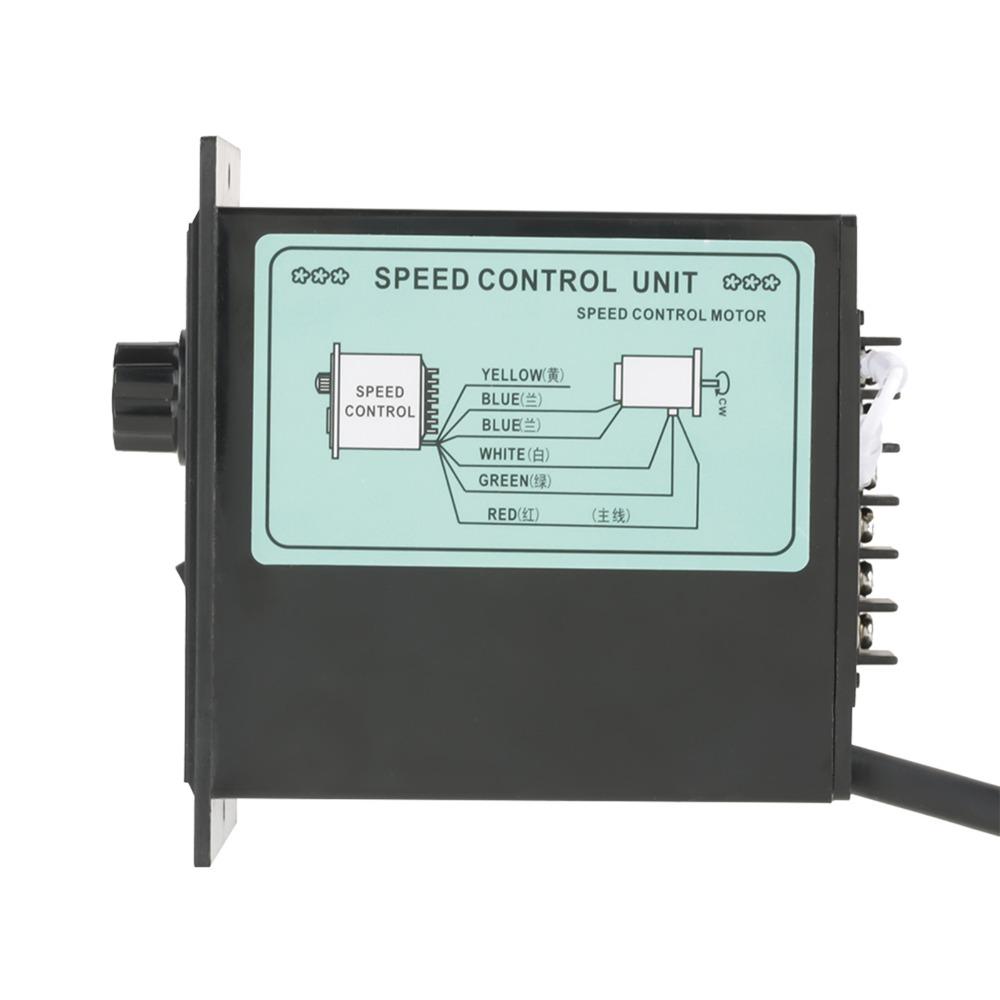

Black wire is the motormain wire, red and white are the capacitor auxiliary wires, and 2 blue wires are the speed control feedback wires, the green wire is the ground wire.
Package includes:
1 x Speed Controller
Method of use:
1. Turn off the power, connect it according to the wiring diagram and make sure the connection is correct.
2. Fix the controller well and set the speed to the lowest "0", so as to avoid sudden large current and permanent damage when starting the power supply;
3. Then turn on the power and adjust the speed knob to the desired position. Please turn off the power when not needed;
4. The governor is connected to the motor. If the torque or speed is found to be inconsistent with the requirements, please adjust the fine-tuning potentiometer on the side of the product
5. To change the running direction of the motor, simply replace the jumper lines of "CCW" and "CW" on the back of the controller.
6. Select COM and CW short connection, then the motor will rotate clockwise.
7. Select COM and CCW short connection, then the motor do counterclockwise rotation.
(when changing direction, do not change the direction until the motor stops running completely.)
