Features:
for versatile Analog Input Display Instrument: This instrument is a highly adaptable analog input display device designed to work seamlessly with a wide range of sensors that provide analog output. It can accurately display various physical quantities such as temperature, for frequency, motor , pressure, liquids level, and concentration, making it a for versatile tool for multiple industrial applications.
for supports Current and Voltage Inputs: The instrument is compatible with both current and voltage inputs, including standard ranges such as 0-10V, for 2-10V, 0-20mA, and 4-20mA. With adjustable offset and gain parameters, it can be set to accommodate other input ranges within the 0-10V or 0-20mA for spectrum, flexibility for diverse measurement needs.
Customizable Display Range: By default, the instrument displays readings in percentage format. However, users can easily configure the display range to suit specific requirements using the for F0- for 2 to for F0-4 settings, allowing for precise and tailored data representation.
for multi-Location Display: This instrument for supports communication between multiple meters, enabling synchronized for multi-location display. This feature is particularly useful for applications where real-time data monitoring is required for across different points.
for Industrial and Commercial Use: With its for robust design and wide range of compatibility, this instrument is perfect for industrial and commercial environments. Whether you're monitoring temperature, pressure, or liquids levels, this device provides reliable and for accurate readings, making it an essential tool for efficient and control.
Specifications:

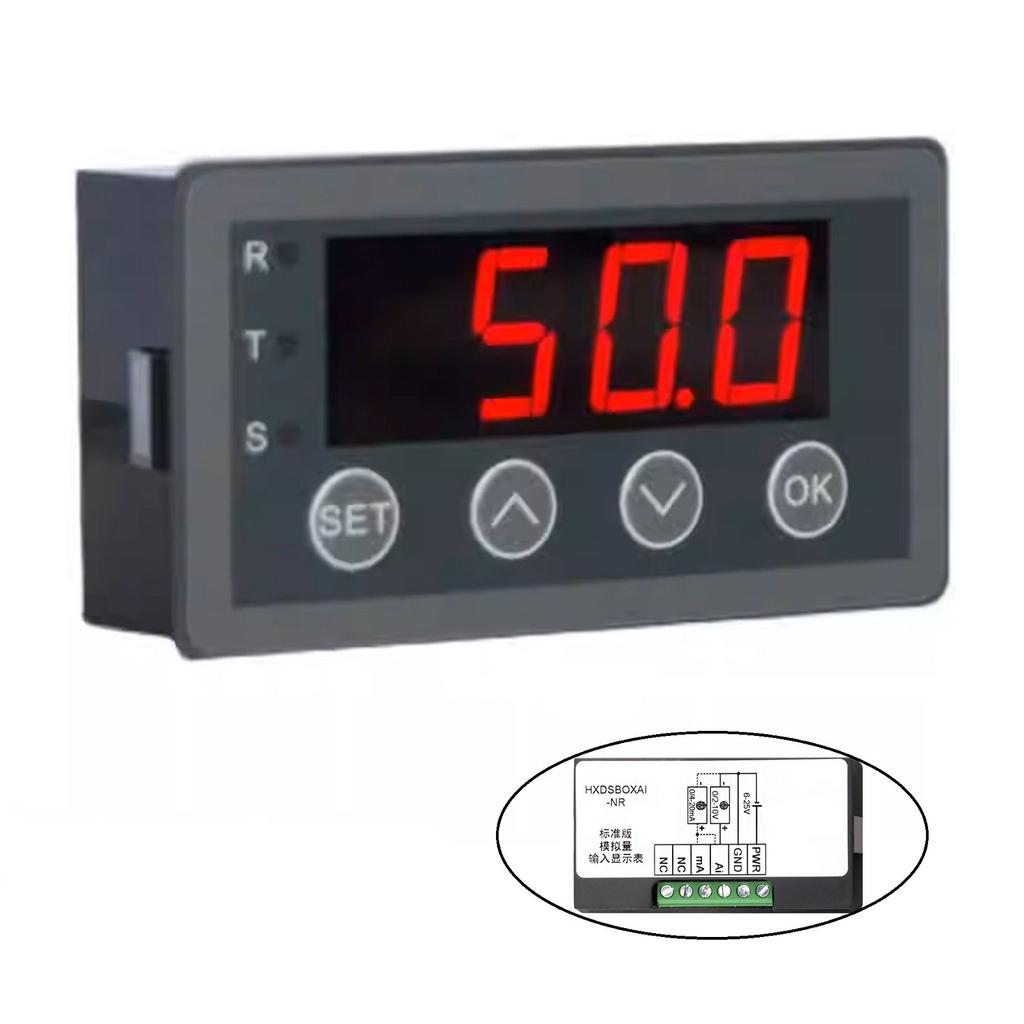

Part Name: Digital Display
Model: HXDSBOXA-NR
Rated power supply voltage range: DC6 ~ 25V
Power consumption: 24V/40mA
Color:Black
Material: plastic
Size: 79 x 43 x 25 mm
Package Contents:
1*Digital Display
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
for 2. Please allow slight manual measurement deviation for the data.
