TP-Link Archer VR300 VDSL/ADSL AC1200 Modem Wi-Fi Router

TP-Link Archer VR300 VDSL/ADSL AC1200 Modem Wi-Fi RouterTP-Link Archer VR300 VDSL/ADSL AC1200 Modem Wi-Fi RouterTP-Link Archer VR300 VDSL/ADSL AC1200 Modem Wi-Fi RouterTP-Link Archer VR300 is a VDSL/ADSL modem router with dual-band AC1200 Wi-Fi, designed to provide wired and wireless network access for home and office environments. It supports VDSL2, ADSL, ADSL2 and ADSL2+ connections, allowing it to work with compatible Internet services provided by an ISP.

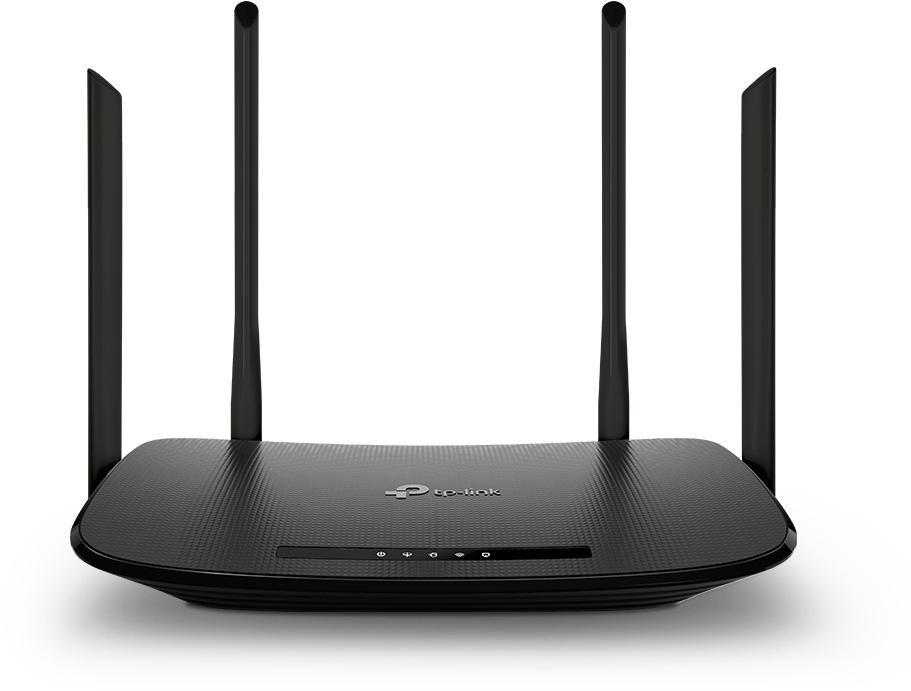

The router delivers wireless speeds of up to 867 Mb/s on the 5 GHz band and 300 Mb/s on the 2.4 GHz band. The four external antennas support wireless coverage, while dual-band operation enables compatible devices to connect using either the 2.4 GHz or 5 GHz frequency.

Wireless standards: IEEE 802.11a/n/ac at 5 GHz and IEEE 802.11b/g/n at 2.4 GHz

Wireless security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK and WPS

Wireless functions: access point, wireless bridge, SSID broadcast control and wireless transmission on/off

Guest network: separate guest networks available on both 2.4 GHz and 5 GHz bands

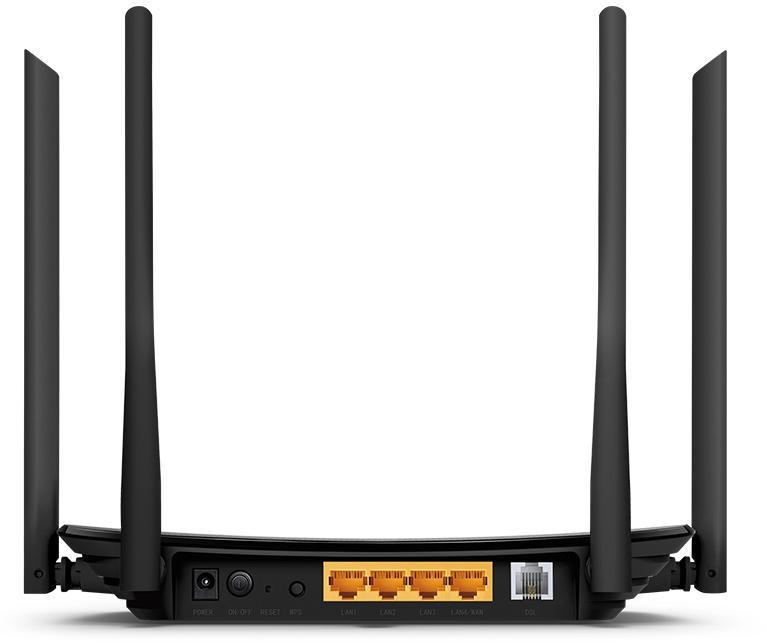

The device is equipped with three 10/100 Mb/s LAN ports, one 10/100 Mb/s LAN/WAN port and one RJ11 DSL port. It can operate as a VDSL/ADSL modem router or as a wireless router. The package includes a DSL splitter, RJ11 DSL cable and RJ45 Ethernet cable for connection and installation.

Archer VR300 supports VDSL2 up to profile 17a, G.vector and G.INP, as well as ADSL, ADSL2 and ADSL2+ standards. It also supports ATM and PPP connection protocols, bridge mode, up to eight PVC connections, IPv4 and IPv6, IGMP v1/v2/v3 and IPTV features including IGMP Proxy/Snooping, Bridge and VLAN tagging support.

Network management and protection features include parental control, access control, NAT firewall, SPI firewall, IP and MAC address binding, IP and domain filtering, DoS attack protection, static routing, DHCP server and client functions, port forwarding, DMZ, UPnP and Dynamic DNS support for DynDNS and NO-IP. VPN pass-through is available for PPTP, L2TP and IPSec.

Quality of Service: ATM QoS and bandwidth control

Remote management: browser-based management, CLI, TR-069 with SSL, SNMP v1/2c and diagnostic tools

VPN pass-through: PPTP, L2TP and IPSec

Management languages: English, German, Italian, Turkish, Russian and Polish

The modem router is powered by a 12 V / 1 A adapter and includes WPS, power and reset buttons. The operating temperature range is 0°C to 40°C, with storage temperatures from -40°C to 70°C. The package contains the Archer VR300 modem router, external splitter, DSL cable, Ethernet cable, quick installation guide and power adapter.53.14TP-LINK
