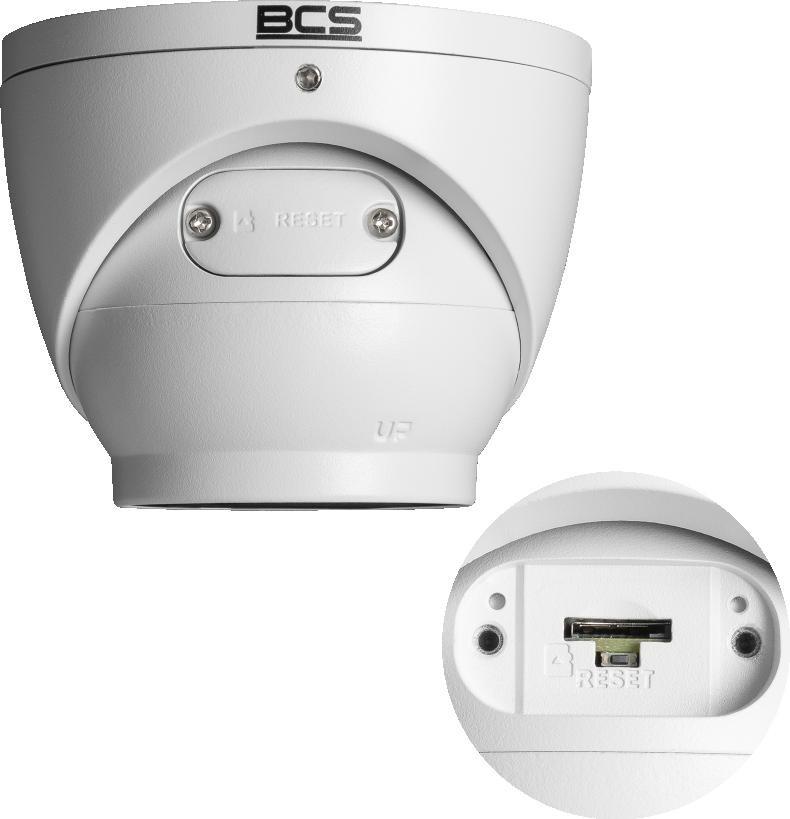

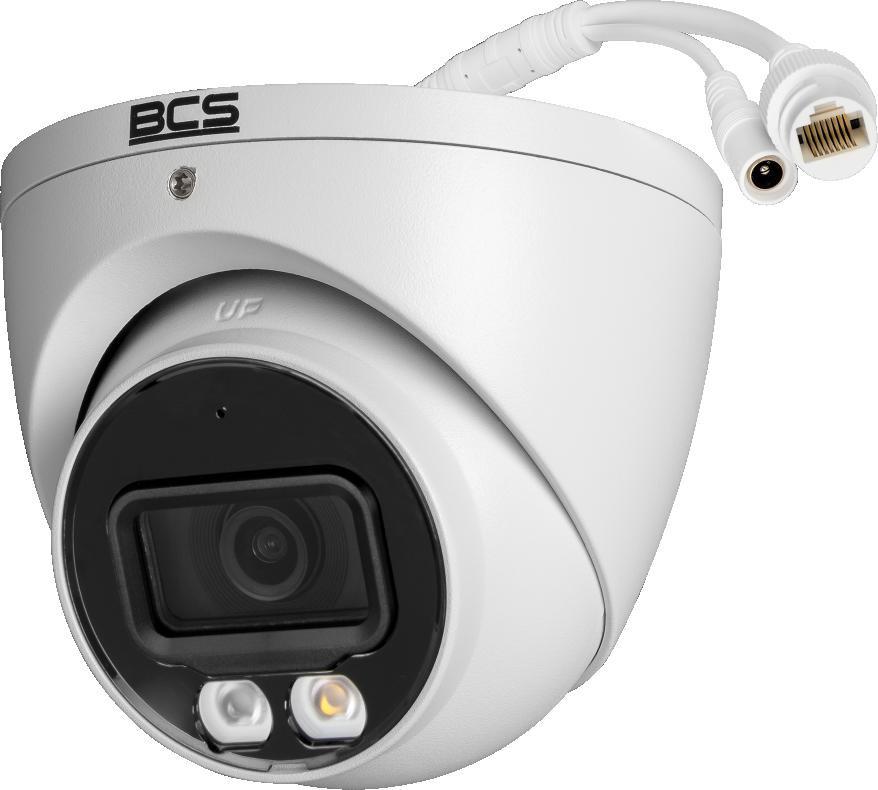

BCS Line BCS-L-EIP14FCR3L3-Ai1 4MP IP Dome Camera NightColor IR 30m

BCS Line BCS-L-EIP14FCR3L3-Ai1 4MP IP Dome Camera NightColor IR 30mBCS Line BCS-L-EIP14FCR3L3-Ai1 4MP IP Dome Camera NightColor IR 30mBCS Line BCS-L-EIP14FCR3L3-Ai1 4MP IP Dome Camera NightColor IR 30mBCS-L-EIP14FCR3L3-Ai1 is a 4 MP IP dome camera from the BCS Line series, designed for video surveillance in a range of environments. It features a 1/2.9" PS CMOS sensor, a fixed 2.8 mm lens and a maximum resolution of 2688 × 1520 pixels.

The camera combines NightColor technology with an IR LED and white light illuminator, each providing a range of up to 30 metres. The mechanical ICR filter supports day and night operation, while the camera offers sensitivity down to 0.006 lux in colour mode, 0.0006 lux in black-and-white mode and 0 lux with IR illumination.

Resolution: 4 MP, up to 2688 × 1520 pixels

Lens: fixed 2.8 mm, aperture F1.6

Viewing angle: horizontal 95°, vertical 52°, diagonal 114°

WDR: 120 dB

Digital zoom: 16×

Noise reduction: 3D DNR

The built-in intelligent video functions support perimeter protection, including area intrusion and line-crossing detection. Person and motor vehicle recognition helps reduce false alarms, while SMD Plus intelligent motion detection provides an additional layer of event analysis. The integrated microphone enables audio recording, with support for G.711A, G.711Mu, G.726 and PCM compression.

The camera supports H.265, H.265+, H.264, H.264+ and MJPEG video compression. It provides two streams and supports resolutions including 4 MP, 3 MP, 2 MP, 1.3 MP, 720P, D1, VGA and CIF. Recordings can be stored using FTP or SFTP, or locally on a microSD card with a capacity of up to 256 GB.

Network communication is provided through an RJ-45 10/100 Mbps port, with support for PoE according to 802.3af or 12 V DC power. The camera is compatible with ONVIF profiles S, G and T and can be managed through a web service, BCS Manager software for Windows, Linux and macOS, or mobile applications for iOS and Android.

Protection rating: IP67

Operating temperature: -40°C to +55°C

Maximum humidity: 95% RH

Power consumption: up to 5.2 W

Dimensions: Ø106 × 94 mm

Weight: 0.39 kg

Housing colour: white

With its compact dome housing, integrated microphone, intelligent image analysis, 120 dB WDR, NightColor technology and IP67 protection, the BCS-L-EIP14FCR3L3-Ai1 provides a versatile solution for IP surveillance systems requiring detailed image capture and advanced detection functions.160.36BCS
