FG 300 Multi functional High precision Portable Signal Generator 0.001Hz 200KHz Signal Generator 7.83Hz Schumann Wave

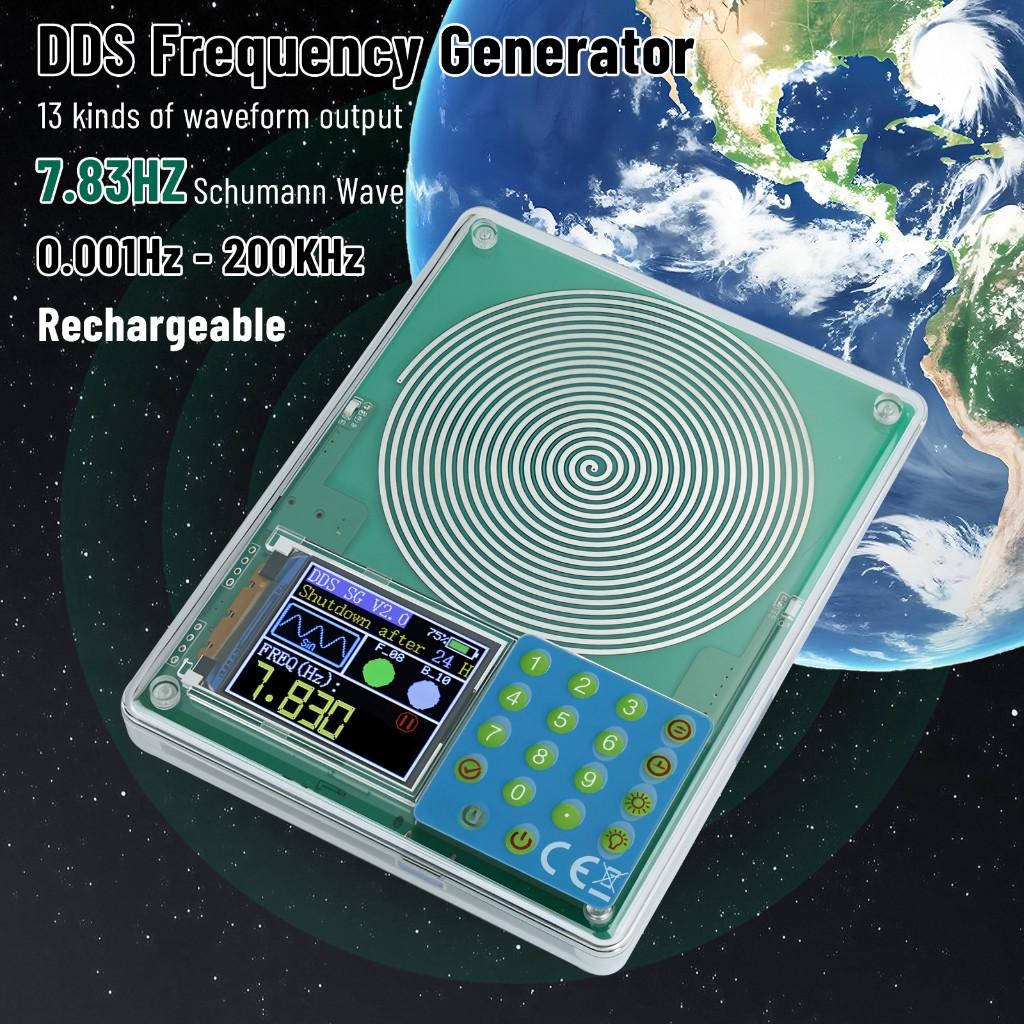

FG-300 Multi-functional, High-precision, Portable Signal Generator 0.001Hz - 200KHz Signal Generator 7.83Hz Schumann Wave FG-300 is the 1 multifunctional, high-precision, portable signal generator, which can generate sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram, half wave, Loren, Gaussian, Singer, Exponential rise, exponential fall, and 7.83HZ Schumann wave and other waveforms. The onboard spiral antenna can be used as a high-precision Schumann wave generator, can be widely used in electronic research and development, production testing, education and teaching, maintenance, audio testing and other fields.

Features： Using low temperature drift crystal oscillator, high precision DDS frequency synthesis, high frequency stability, resolution up to 0.001HZ, at low frequency accuracy up to 0.001HZ Can be up to 13 kinds of waveform output, to meet different needs Color 1.8TFT LCD display, digital keyboard direct input frequency, intuitive and convenient operation. With timing shutdown, signal light brightness adjustment, screen backlight brightness adjustment. All setting parameters can be automatically saved, and there is no need to set them in the next startup.

specifications： frequency range: sine wave 0.001Hz-200kHz (where the output amplitude is flat to 100 kHz, the output amplitude will decrease and the distortion will increase with the further increase of the frequency), and other waveforms will be 0.001Hz-20kHz (but the upper limit of adjustable frequency is not limited. If the requirements for distortion and shaking are not high, the use frequency can be further increased). waveform types: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram, half wave, Loren, Gauss, Singh, exponential rise, exponential fall, and 7.83HZ Schumann wave output amplitude: 2.5V VPP Output impedance of 2.4: 330 ohms display: 1.8 inch TFT display supply voltage: USB-TYPE C 5V

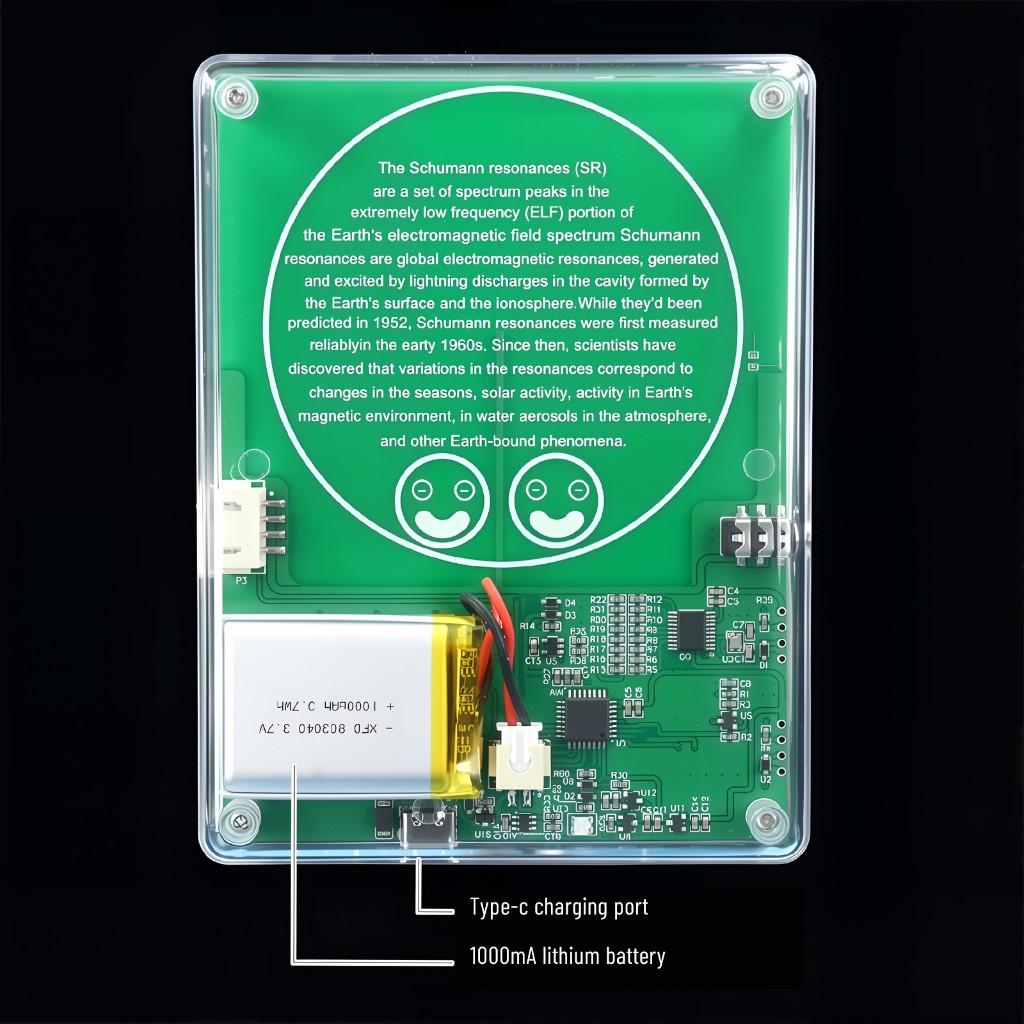

Battery: 3.7V 1000mAh

dimensions: 129*98*18mm

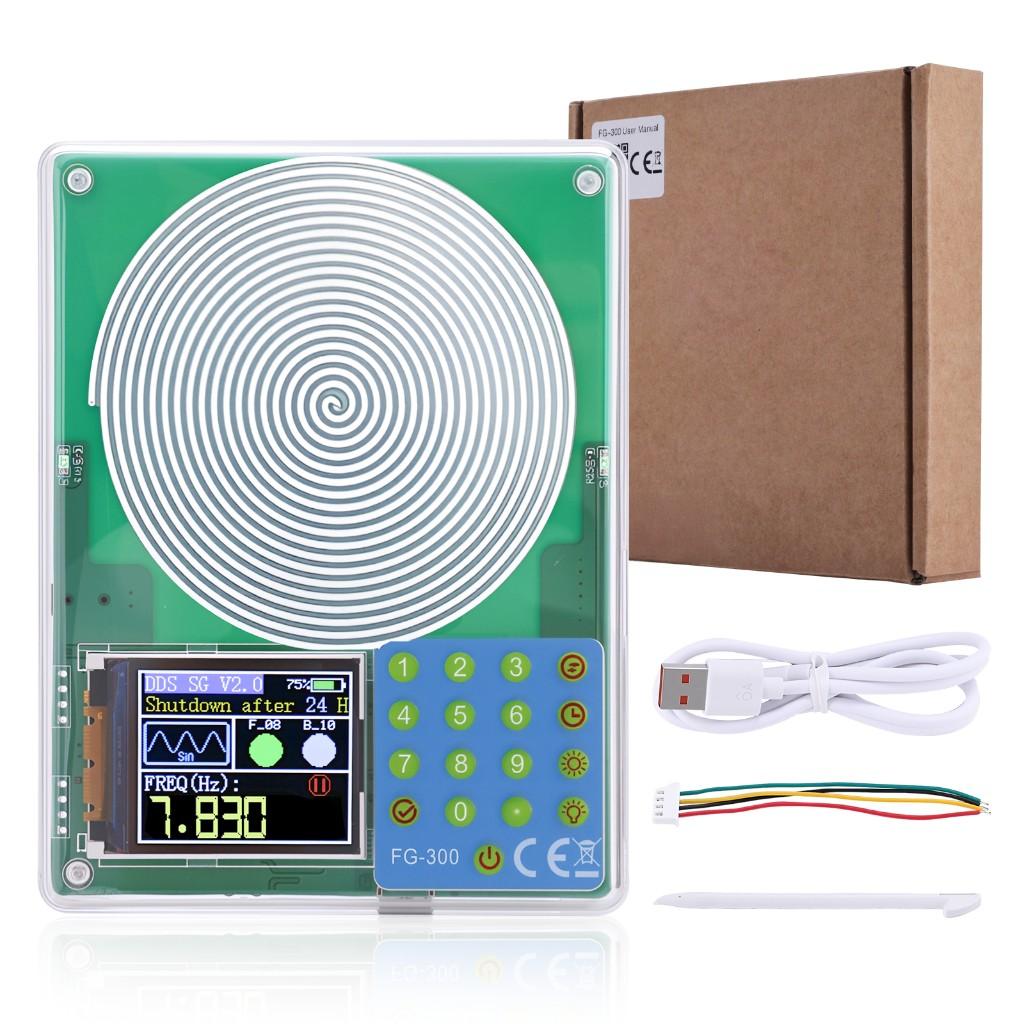

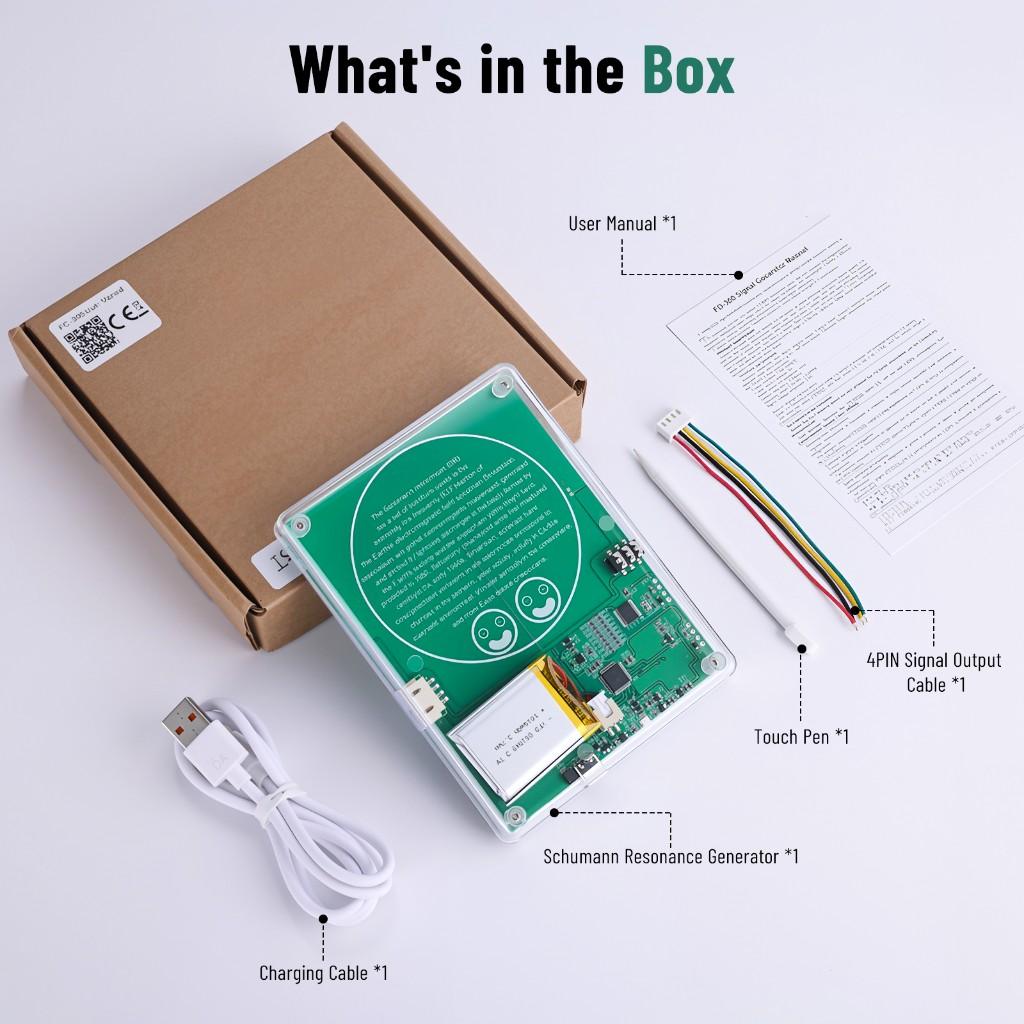

Package List: 1 x Signal Generator 1 x TYPE-C Charging Cable 1 x 4PIN Signal Output Cable 1 x Touch Pen

Experience unparalleled precision with the FG-300, featuring a low-temperature drift crystal oscillator and high-precision DDS frequency synthesis for frequency stability up to 0.001Hz

Generate up to 13 diverse waveforms, including the unique 7.83Hz Schumann wave, catering to a wide range of applications from electronic research to audio testing

Enjoy intuitive operation with a color 1.8-inch TFT LCD display and digital keyboard for direct frequency input

Benefit from user-friendly features like timing shutdown, signal light brightness adjustment, and automatic parameter saving for seamless operation

Compact and portable design with a USB-Type C power supply, making it ideal for on-the-go use in various professional settings.
