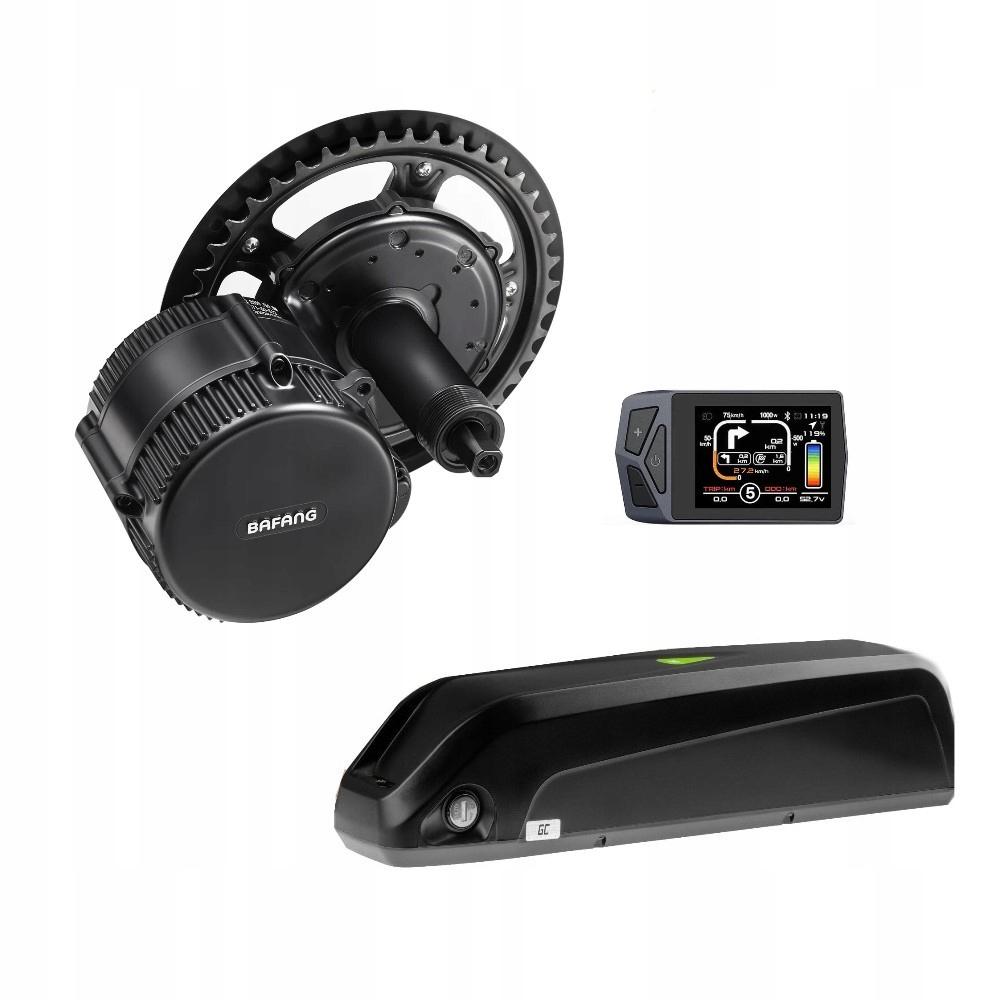

Bafang Bike Conversion Kit 36V 500W 14AH Green Cell Battery

Electric kit with a central motor

A complete 500W kit with a 14.5 Ah battery and charger that will allow you to quickly and easily convert your current bike into an e-bike.

Technical data:

• Kit power: 500W • Max. speed: approx. 35 km/h • Battery: 14.5 Ah • Distance: 55-120 km • Engine model: G340.500 • Engine weight: 4 kg • Mounting location:Centrally - bottom bracket axle • Controller model:Integrated (in the motor) • Sprocket:38T, 46T, 44T, 48T and others (to choose from) • Voltage:36V • Protocol:CAN

1-YEAR warranty for the set from the manufacturer

Don't miss the promotion!Additional one-year warranty for the set for only PLN 1! A total of 2 years of full warranty support!

Bike service and conversion throughout Poland

set

A central motor is the best solution for electric bikes because it allows you to maintain the bike's natural center of gravity. Using the motor in the bottom bracket increases your pedaling cadence and allows for an effective and direct transfer of force to the drive.

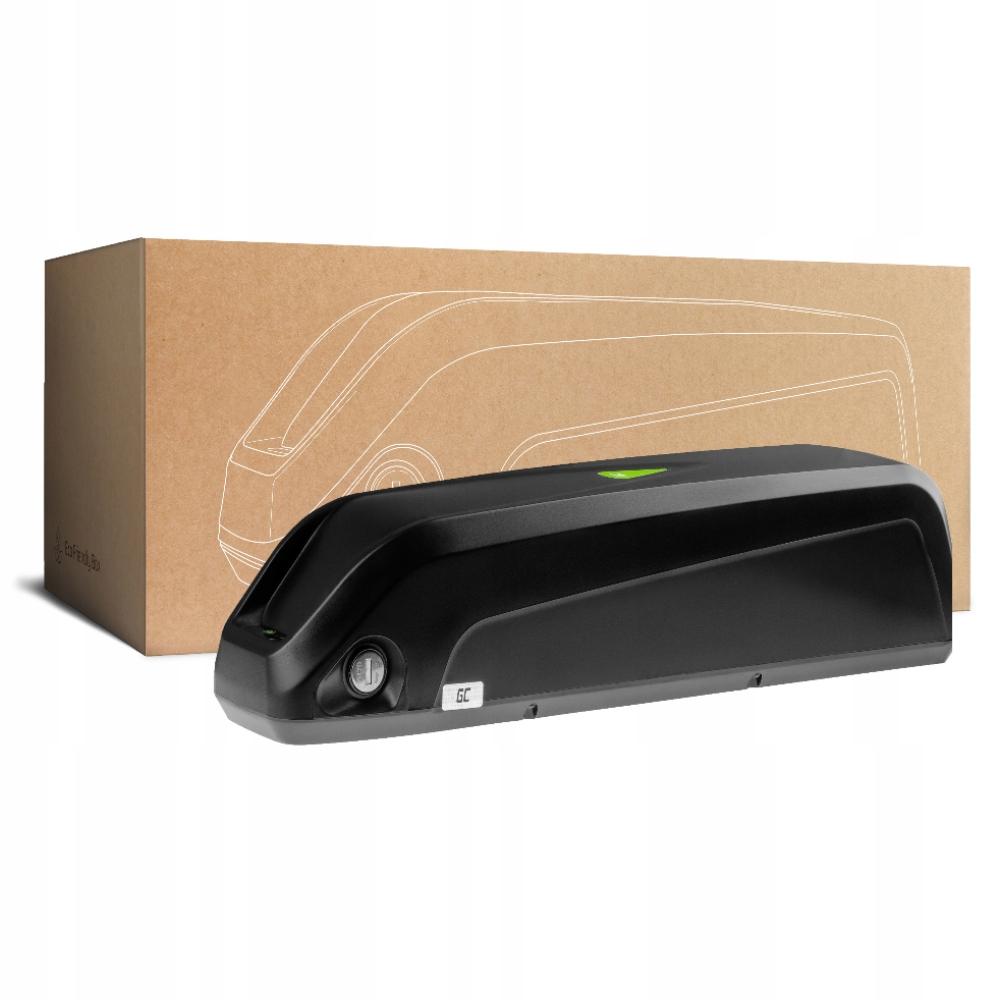

battery

Dimensions 36.7 x 9 x 9 cm

Assembled in Poland, the lithium-ion battery included in the set with a capacity of 14.5 Ah allows you to travel from 55 to even 120 km on a single charge. Top-class Green Cell cells ensure excellent performance, range, and high durability.

The sealed housing uses not only high-quality, long-life cells, but also an intelligent battery management system that constantly monitors the battery's operating parameters. It provides all the necessary safeguards that affect the safety of use, including protection against deep discharge, overcharging, and overheating, and balances the voltage between the cells, which extends the battery's life.

The built-in 30A BMS is a powerful source of energy for your bike's electric motor, which translates into maximum performance on even the steepest climbs. Use 100% of your E-Bike's potential!

LCD (optional)

Using the easy-to-use LCD display, you can make the necessary settings, configure the support and maximum speed, and, above all, constantly monitor the battery status. The intelligent system monitors your driving style and indicates the battery level proportional to the power used.

TYPE 1 (EKD01)

Side display with some enhanced functionality and Bluetooth functionality

• Number of PAS: 3/5/9 • Screen size: 2.4″ • USB port: Yes

TYPE 2 (VD03)

Minimalist Side Display with Bluetooth Function

• Pass Quantity: 3/5/9 • Screen Size: 1.5″ • USB Port: None

throttle grip

You can use the power assist in two ways - the first is to automatically start the engine while pedaling thanks to a motion sensor that is placed next to the throttle. The first is the crank, and the second is the throttle, which also allows you to use the drive in its full range.

Can be adapted to any bike

TO CHOOSE FRONT SPROCKET TYPE

- 32T, 36T, 38T(They will increase pedaling cadence and riding comfort in mountainous terrain)

- 44T, 46T, 48T(They have an additional chain guard and are suitable for riding in the city, forest and other flat, mountainous areas) areas)

We use 44T as standard.

TO CHOOSE FROM:

Brake levers

They have contactors that activate the engine switch when pressed, which increases driving comfort and safety.

Brake sensor

The sensor is usually used when the original brake levers are integrated with shifters on a bicycle or in the case of hydraulic brakes. The electronic brake sensor is placed on the brake lever and when braking, the lever handle moves, which is detected by the Hall sensor and disconnects the motor in a fraction of a second.

In the order comments, please indicate:

1. Front sprocket TYPE: 38T, 46T, 44T, 48T and others;

2. Brake TYPE: brake lever OR brake sensor;

3. LCD TYPE: 1, 2.

Included:

1. Bafang 36V 500W motor; 2. 36V 14.5Ah battery with charger and keys; 3. Wiring with LCD display and throttle; 4. Brake levers with current cut-off or braking sensors; 5. Sprocket; 6. Cranks; 7. Lamp; 8. User's manual and warranty card.

Warranty and Service

The comprehensive warranty and service for Ultimate Action batteries is 1 year. We operate throughout Poland.

Bike Conversion

We offer additional conversion and service services for electric bikes throughout Poland.

User manual and warranty card

The set includes an instruction manual containing the main information on the correct use, operation and installation of the Bafang electric kit, display and additional parts.
