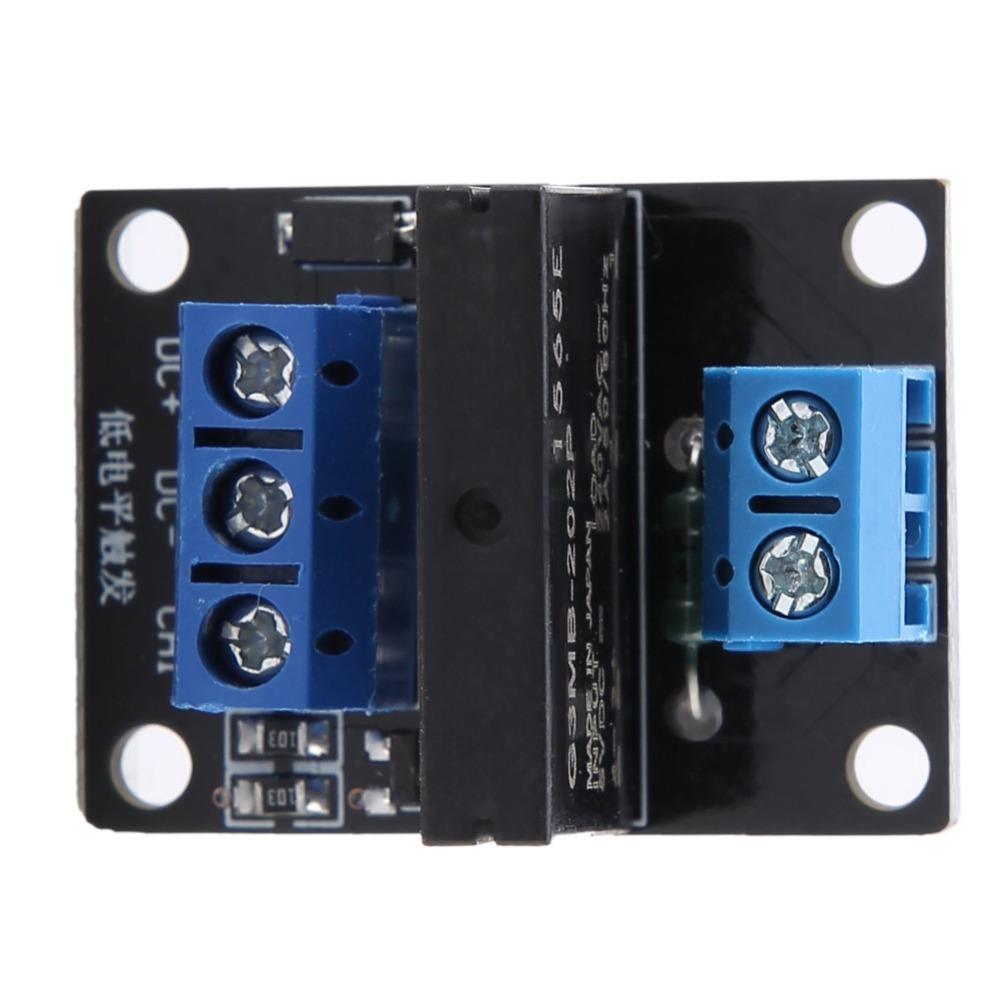

2Pcs 1 Channel Solid State Relay Module Low Level Trigger SSR Module Board for Arduino Projects

Label:Yes The use of the product expansion capability, can be used for all types of DIY. It has the function of reverse power connection, and the wrong module will not be damaged Stable performance of electronic components, so that your equipment can work stably. High sensitivity of products and each route has a status indicator light, and the status is clear and visible Strong anti-interference ability and stable performance

Specification: Type: 1 Channel Voltage: DC 5V/12V (Optional) Quiescent Current: 0mA Operating Current: 13.8mA (Maximum) Triggering Method: Low-level Triggering Load Voltage: 240VAC Load Current: 2A Service Life: 10,000,000 Times Switching Frequency: ≤5KHz (Maximum) Structural Dimensions: 25*34*25mm(0.98*1.34*0.98in) Positioning Hole Dimensions: 17.4*28.4mm(0.69*1.12in) Color: As picture shown

Voltage Range: 5V Low Level Trigger Module: 0 - 1.5V DC: Relay is ON (connected) 2.5 - 5V DC: Relay is OFF (disconnected)

12V Low Level Trigger Module: 0 - 4.5V DC: Relay is ON (connected) 5.5 - 12V DC: Relay is OFF (disconnected)

Package List: 2 × SSR Module

Note: DC +: positive power supply DC-: connect power negative The CH terminal is the trigger terminal of the module. When there is a trigger signal, the output switches (A, B) of the solid state relay will close. The load will be conductive.
