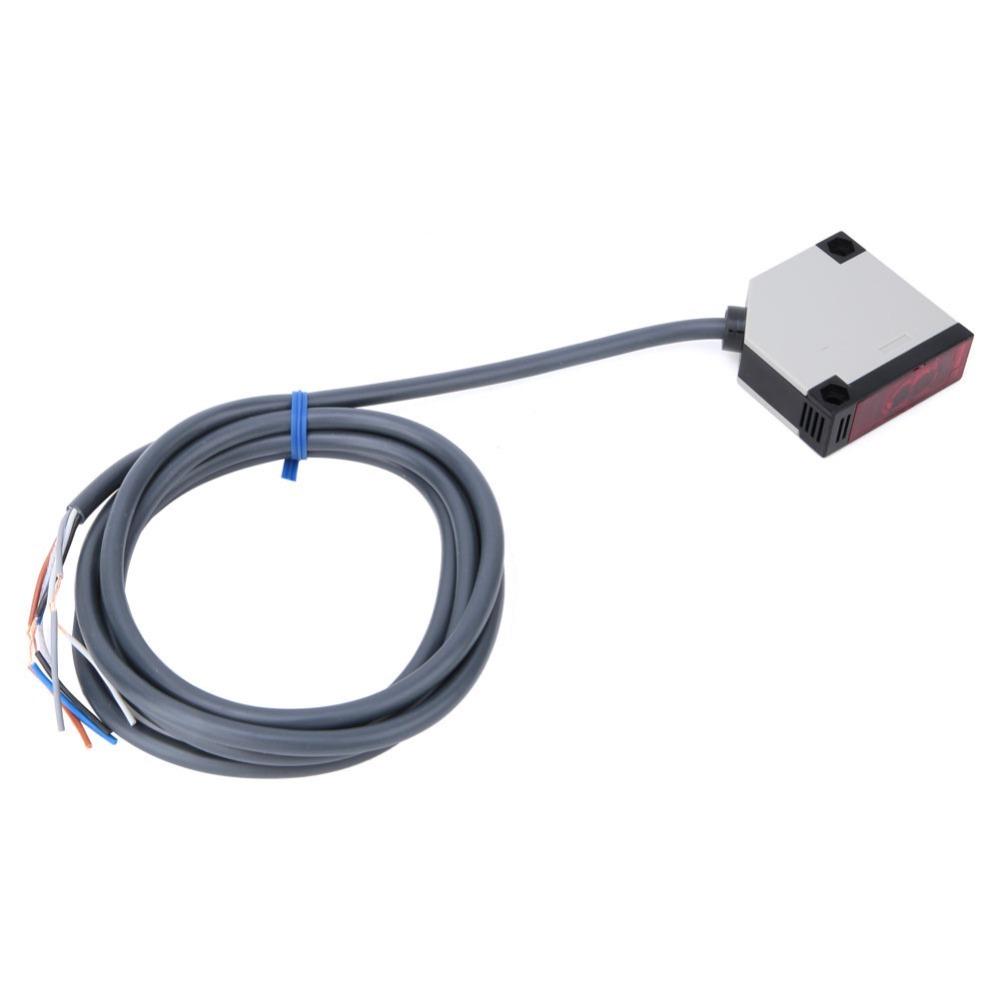

for E3Jk DS30M1 Diffuse Reflection Sensor Switch Industrial Control Manufacturing Applications

Label:Yes The housing is made of ABS fireproof material, durable and long service life. Available in three types for your choice: 90-250VAC, AC/DC12-240V and DC12-24V The switch is responsive and anti-interference The product adopt transmitting tube light source type which can provide stable performance Action indicator with red LED, it has fast response

Specification: Model: for E3JK-DS30M1 Detection Method: Diffuse reflection type Detection Distance: 50-300mm(1.97-11.81in) (adjustable) Detection Object: Transparent body / translucent body / opaque object Number of Wires: 5 Wire Length: 180cm(70.87in) Color:As picture shown Size: 50*50*18mm(1.97*1.97*0.71in) Light Source Type: Transmitting tube Induction Method: Diffuse reflection Protection Level: IP65 Housing Material: ABS Fireproof Control Output: 30VDC 3A Impedance load Current Consumption: 10mA or less Response Frequency: 500Hz Indicator Light: Action indicator (red LED) Temperature Effect: -15 ~ +70℃ Impact Resistance: 500m/s2 (50G) X, Y, Z 3 times in all directions Ambient Temperature: -25 ~ +70℃, when stored: -30 ~ +80℃ Ambient Humidity: 35-95% RH, when stored: 35-95% RH Optional Style: 90-250VAC, AC/DC12-240V, DC12-24V

Package List: 1 x Sensor Switches 1 Bags of Screws and Fixing Brackets
