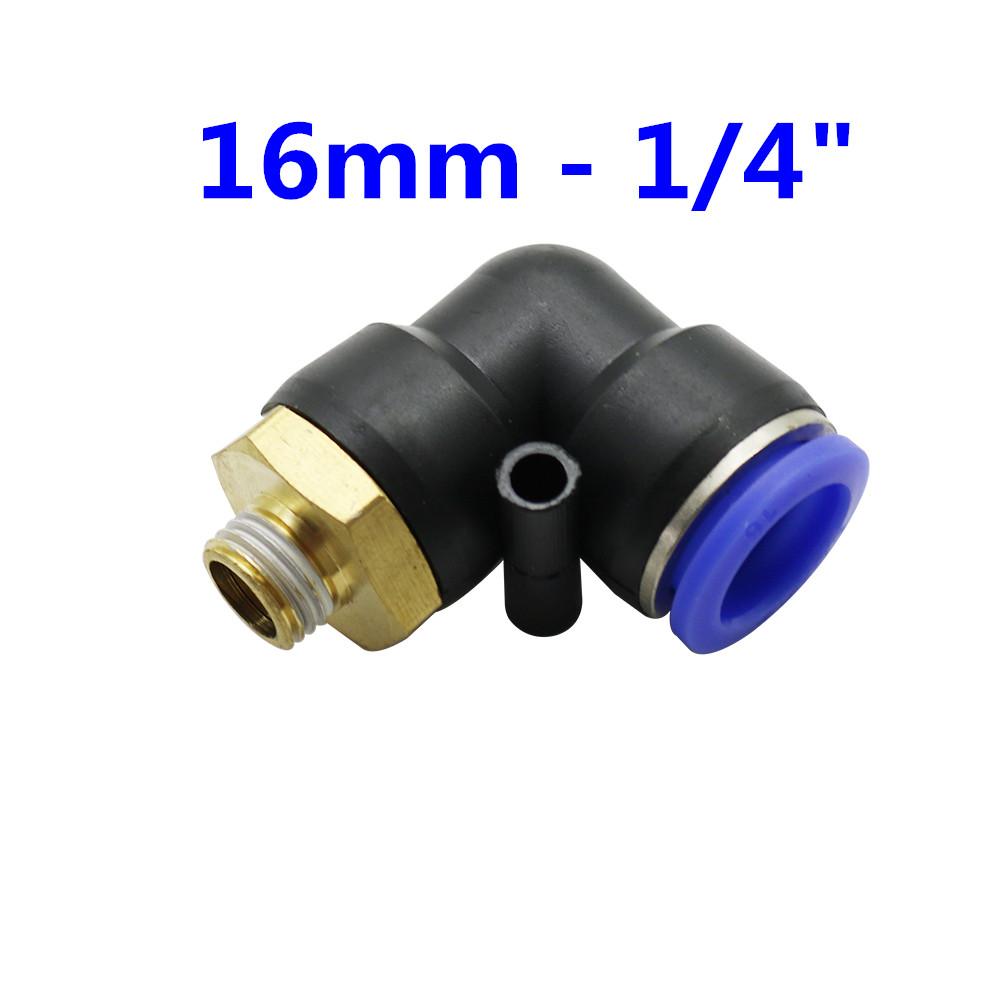

PL Pneumatic Pipe Connector 14mm 16mm OD Hose Pipe 1/4" 3/8" 1/2" 3/4" Male Thread Adapters Pneumatic Pipe Elbow Fitting 3Pcs

High-concerned chemical : none Motivity Type : Other Type : Fittings Model Number : PL type Origin : Mainland China Product name : Male thread elbow pneumatic connector Material : Plastic+brass Circlip : Stainless steel Working medium : Air,vacuum Normal Working pressure : 0~0.9Mpa Low pressure use pressure : -99.99~0Kpa Highest pressure resistance : 1.3MPa Operating temperature range : 0~60°C Thread specification : 1/4",3/8",1/2",3/4" Water pipe size : 14/16mm

Product Usage:The contact tube connection port for pneumatic piping , also can be used for various purposes depending on the user's condition.Product information:Product name: Male thread elbow pneumatic connectorMaterial: Plastic+brassCirclip: Stainless steelWorking medium: Air,vacuumNormal Working pressure:0~0.9MpaLow pressure use pressure: -99.99~0KpaHighest pressure resistance: 1.3MPaOperating temperature range: 0~60°CThread specification:1/4",3/8",1/2",3/4"Applicable hose: Nylon/PU tubePipe outter diameter: 14mm,16mmThread specifications:02=1/4" ≈12~12.7mm03=3/8" ≈16~16.2mm04=1/2"≈20~20.3mm06=3/4" ≈25~25.8mmSpecification:PL14-02 14mm to 1/4" male threadPL14-03 14mm to 3/8" male threadPL14-04 14mm to 1/2" male threadPL16-02 16mm to 1/4" male threadPL16-03 16mm to 3/8" male threadPL16-04 16mm to 1/2" male threadPL16-06 16mm to 3/4" male threadPacking include: 3pcs x pneumatic connector (type as you choose)Features:1. Quick installation, simple and smart, saves space.2. Various forms to meet the needs of any pneumatic pipe.3. Even after installation, the plastic pipe body can be arbitrarily turned.4.The button adopts an elliptical design, which makes the disassembly more labor-saving and convenient.5.All taper pipe threads are pre-coated with PTFE leak-proof glue, and the sealing performance is good.6. The connectors are equipped with hexagon sockets for easy installation in narrow places.Precautions:1. If a non-company's trachea product is used, it may cause leakage or abnormal connection and disassembly due to the tolerance of the trachea. Therefore, it is necessary to check whether the outer diameter conforms to the tolerance allowable size.2. Please check to see if the end face of the trachea is cut at right angles. If there is any damage or scratch outside the trachea, insert it into the end to ensure the seal.3. When disassembling the air pipe, check that the pressure in the air pipe is zero.Connection pipe precautions:(1) Make sure that the cut surface of the pipe is vertical, there is no damage on the outer circumference of the pipe and the pipe is not oval.(2) When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.(3) After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.Precautions when removing the joint:(4) Use a suitable tool to remove the pipe joint using the outer hexagon of the pipe joint(5) It is necessary to remove the sealing material adhered to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunctionUse warning:1. In the fluid other than air and water, try not to use2. If it is used in a place where sparks are generated, it may cause a fire, so it is forbidden to use it in such a place.Please Note:The size is measured by hands, please allow minor error of measurement. Photo color might be a little different from the actual product due to color display of different monitors.
