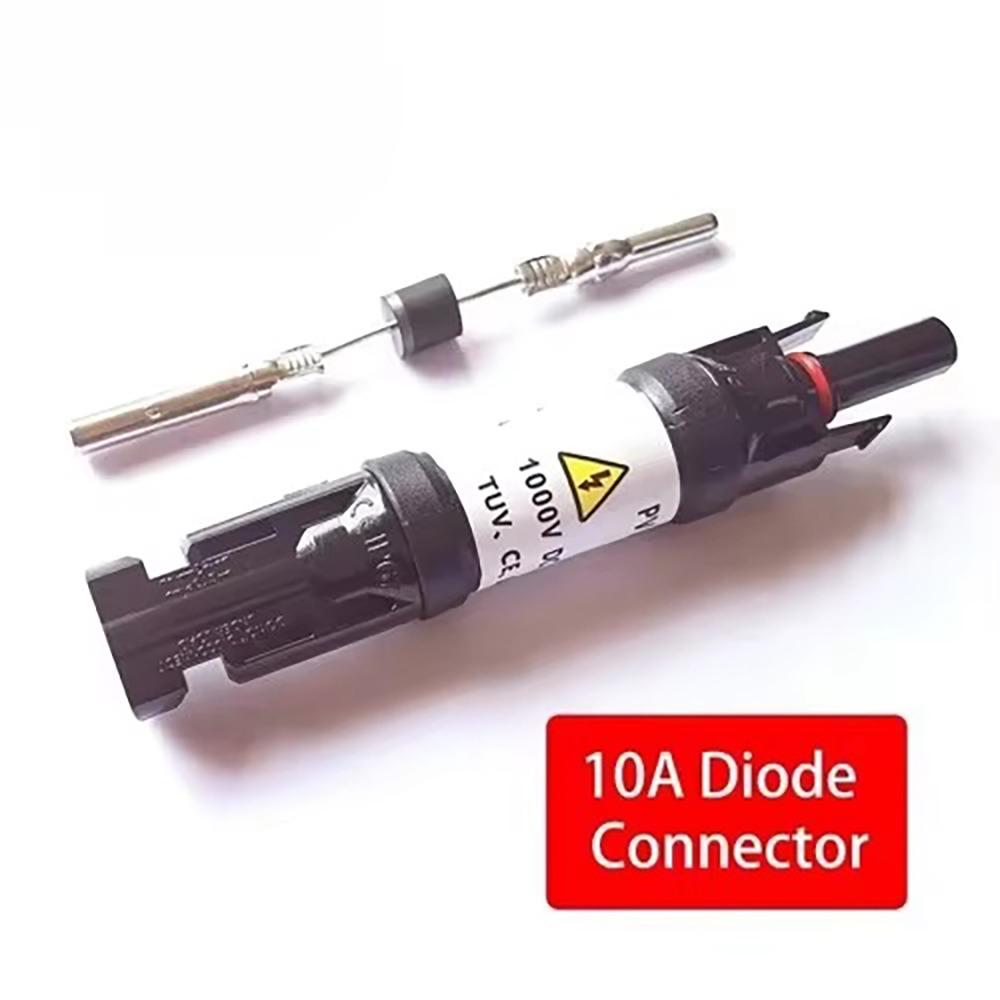

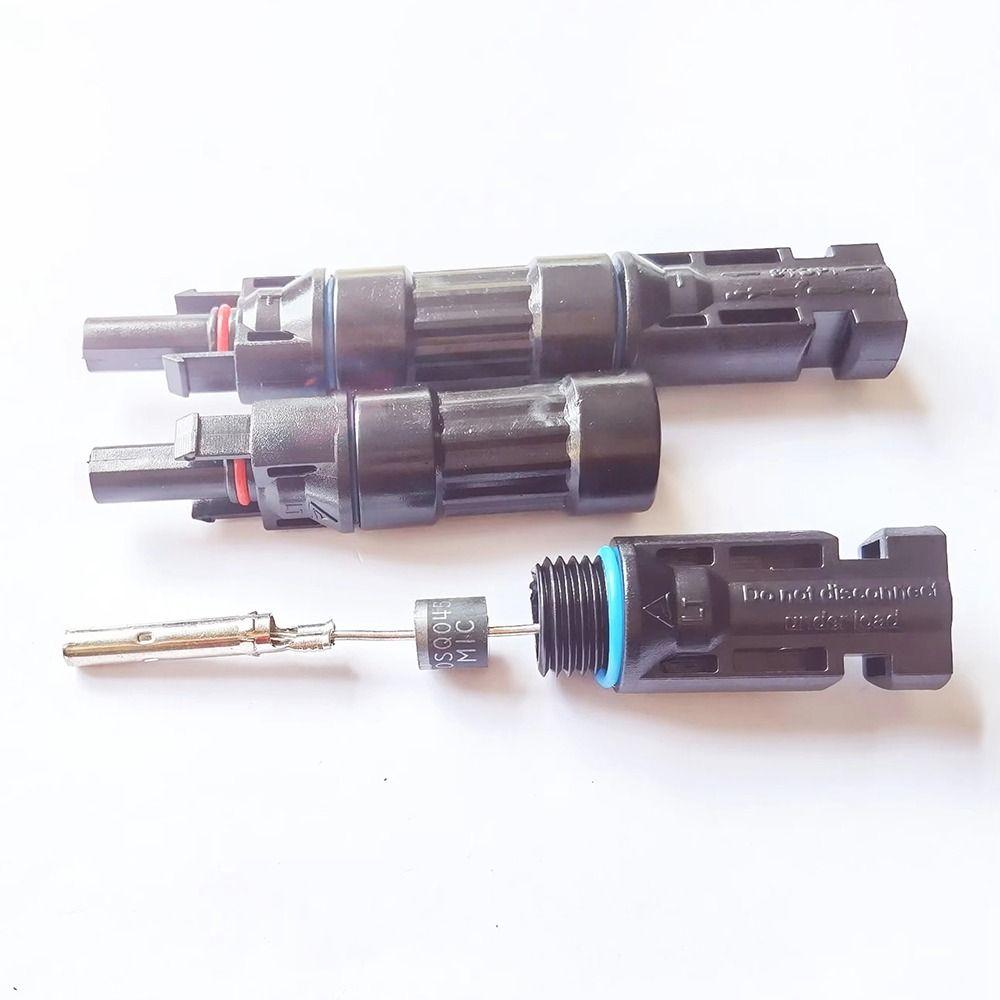

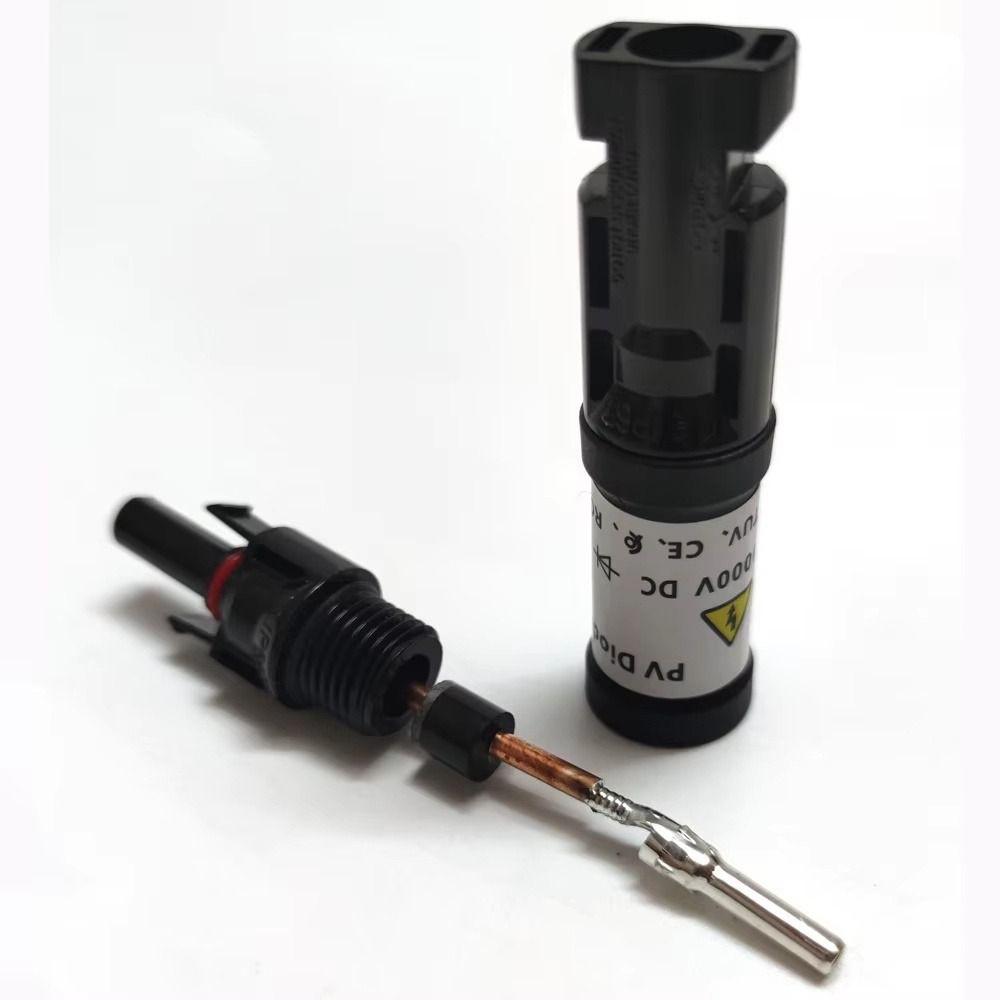

1Pcs IP67 Waterproof Photovoltaic Diode Connector for Solar PV System

Label:Yes Rated impulse voltage: 1000V Rated current: 24A-14AWG (2.5mm2), 30A-12&10AWG (4mm2&6mm2) Operating temperature: -40 degreeC ~ +90 degreeC Insulation material: PC/PA Quantity: 1Pcs Name: Photovoltaic Diode Connector Rated voltage: 1000V Contact material: Copper, tin plated Contact resistance: ≤5m ohm Diode: 10A~30A Test voltage: 6kV (50Hz) Flame class: UL94-V0 Protection grade: IP67 Size: as shown Suitable for cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm2) Brand new and high quality

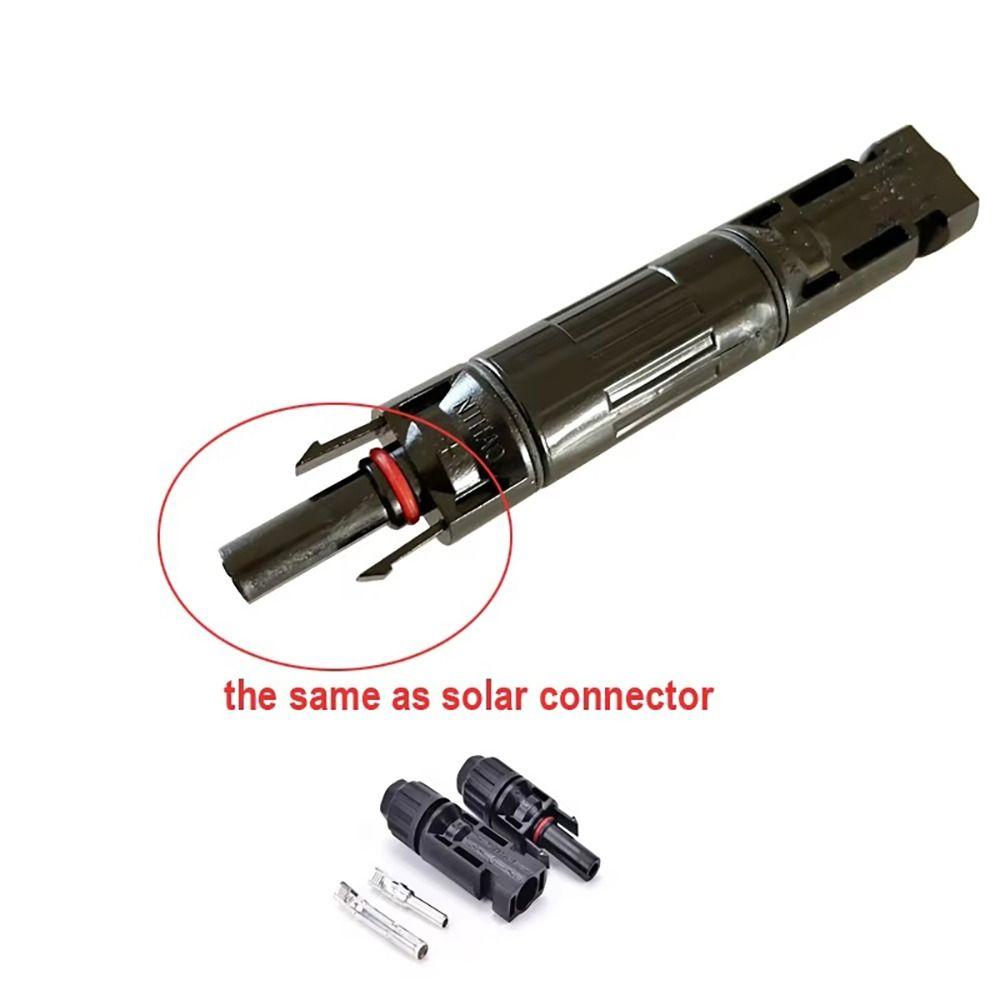

Description: This photovoltaic diode connector provides anti-reverse current protection for solar panel systems. It is built with PC/PA insulation and copper tin plated contacts for reliable electrical performance. It is compatible with MC4 connectors and supports simple plug and play installation for solar modules.

Features: - 10A 15A 20A 30A diode options - IP67 waterproof and dust proof - Anti-reverse current anti-backflow design - Flame class UL94-V0 - Snap-in locking system

Notice: 1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. Thank for your understanding. 3. 1cm=0.39''.

Package Included: 1x Photovoltaic Diode Connector
