Smart WiFi Metering Energy Meter 63A Leakage Voltage Current Auto Reclosing Protector Relay Switch Circuit Breaker Smart Life
Features:Multifunctional Energy Meter: Designed to monitor power consumption. Equipped with a large LCD screen that displays voltage, current, and power. Users can easily configure overvoltage/low voltage protection, current limits, leakage current alarms, and reconnection times.
Remote Control and Voice Control: Control your home devices remotely via your smartphone regardless of time or distance. The application allows real-time checking of device power consumption. Voice control is available through the Smart Life APP, as it's compatible with Alexa and Google Home.
Timer and Scheduling Function: Automatically turn devices on/off based on timers, countdowns, or your daily schedule.
Energy Data Retention: The device features memory retention. During a power outage, it retains KWh data, overvoltage/undervoltage settings, and overcurrent values.

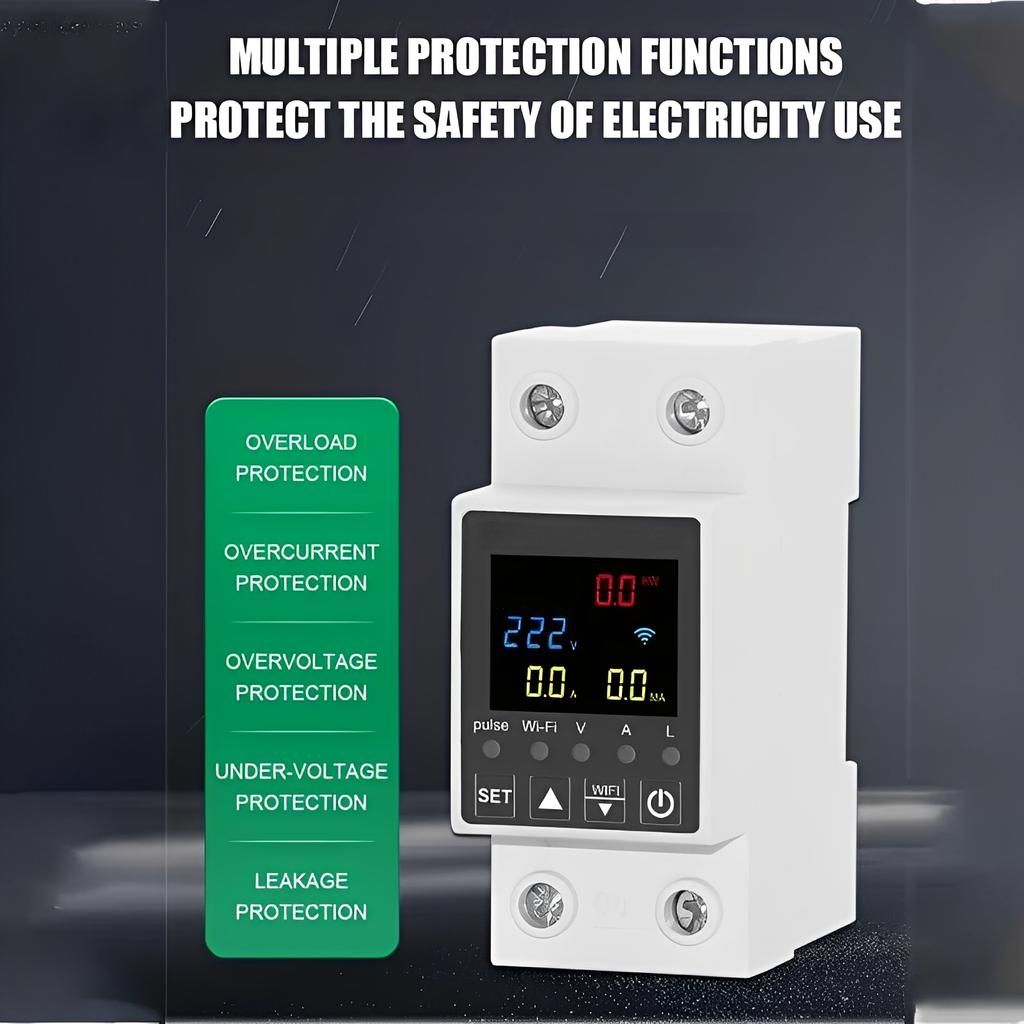

Voltage, Current, and Leakage Protection: If the circuit's rated current, voltage, or leakage current exceeds predetermined values, the switch automatically cuts off power. After the configured "reconnection time" elapses, it will attempt to restore power. (Note: If leakage protection triggers three times consecutively, the circuit breaker will lock out and cease reconnection attempts until the fault is resolved).
Specification：Operating voltage：AC 220VOperating voltage Range：AC 80V-300VFrequency：50/60HzOver current protection 0.11A-63.0A (adjustable) (default: 50A)Over voltage protection 230V-300V (adjustable) (default: 270V)Under voltage protection 110V-210V (adjustable) (default: 170V)Electric leakage protection:10-99mA(default: 30mA)Protect Action Time:1-400s (default:1s)Reconnect time (delay on time): 1s-400s (default: 30s)Power display range:0-99999.9kw/hRated peak insulation voltage：400VOutput Contacts：1NOElectrical life:10⁵Mechanical life:10⁵Protection level:IP20Altitude:≤2000mOperating temperature:-10°C-+60°CHumidity level:<95%(Non-condensing)Storage temperature：-10°C-+55°CProduct size: 85*65*36mm
Packing list：1 * Energy Meter1 *User Manua
Monitor power consumption with a large LCD screen displaying voltage, current, and power
control home devices remotely via smartphone and enable voice control through Smart Life APP compatible with Alexa and Google Home
automatically turn devices on/off based on timers, countdowns, or daily schedules
retain KWh data, overvoltage/undervoltage settings, and overcurrent values during power outages
automatically cut off power when circuit's rated current, voltage, or leakage current exceeds predetermined values and attempt to restore after configured reconnection time.
