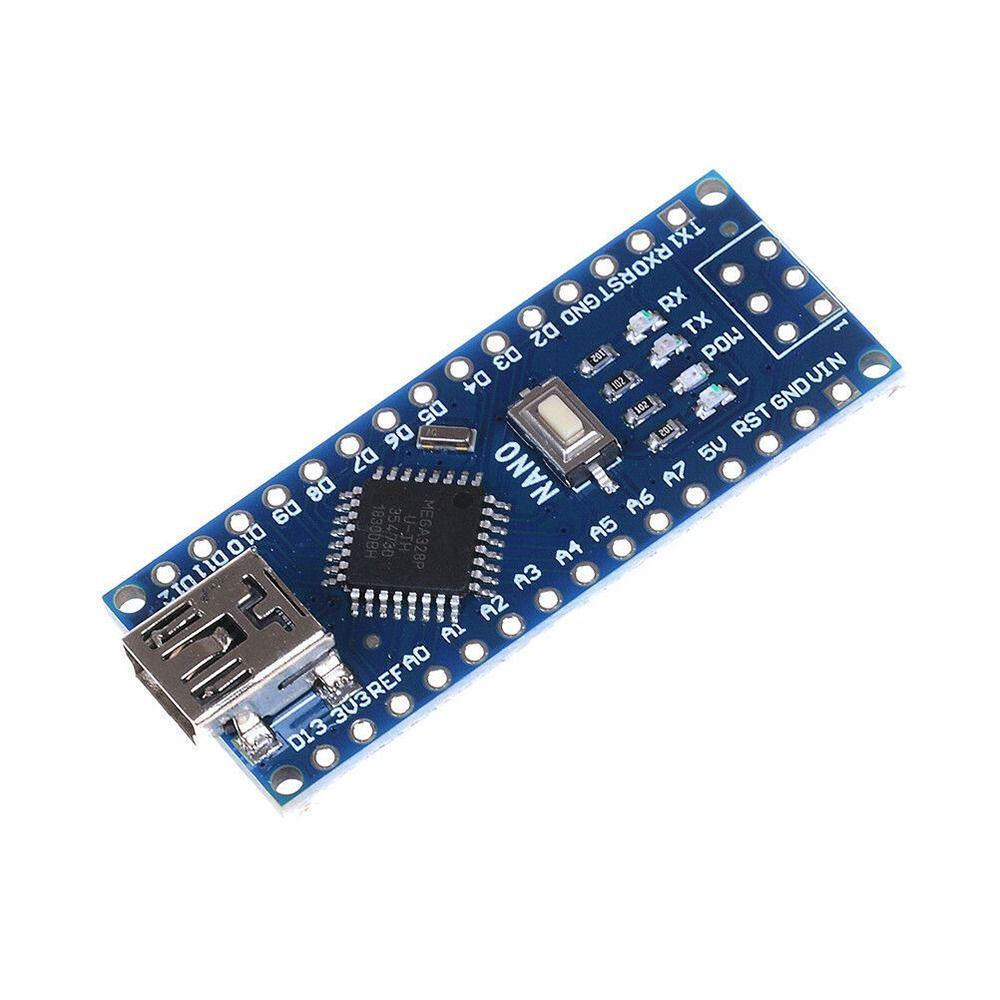

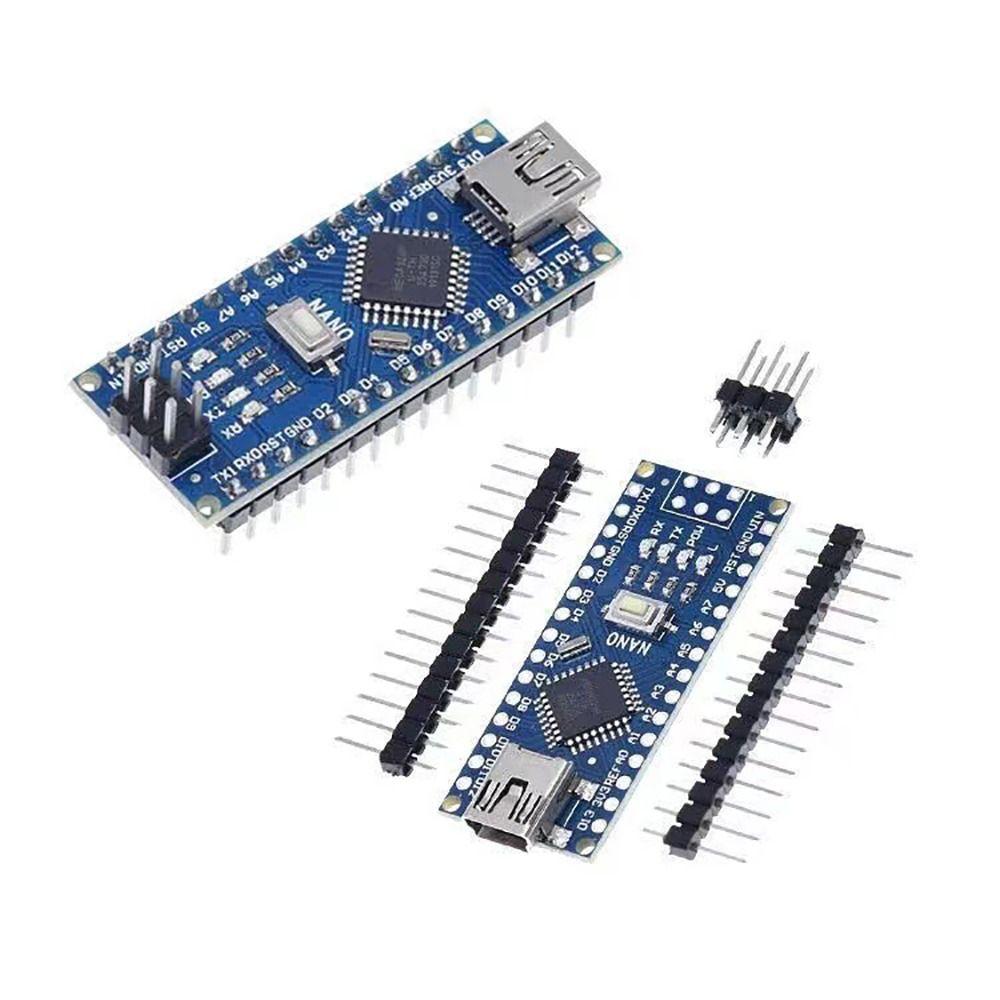

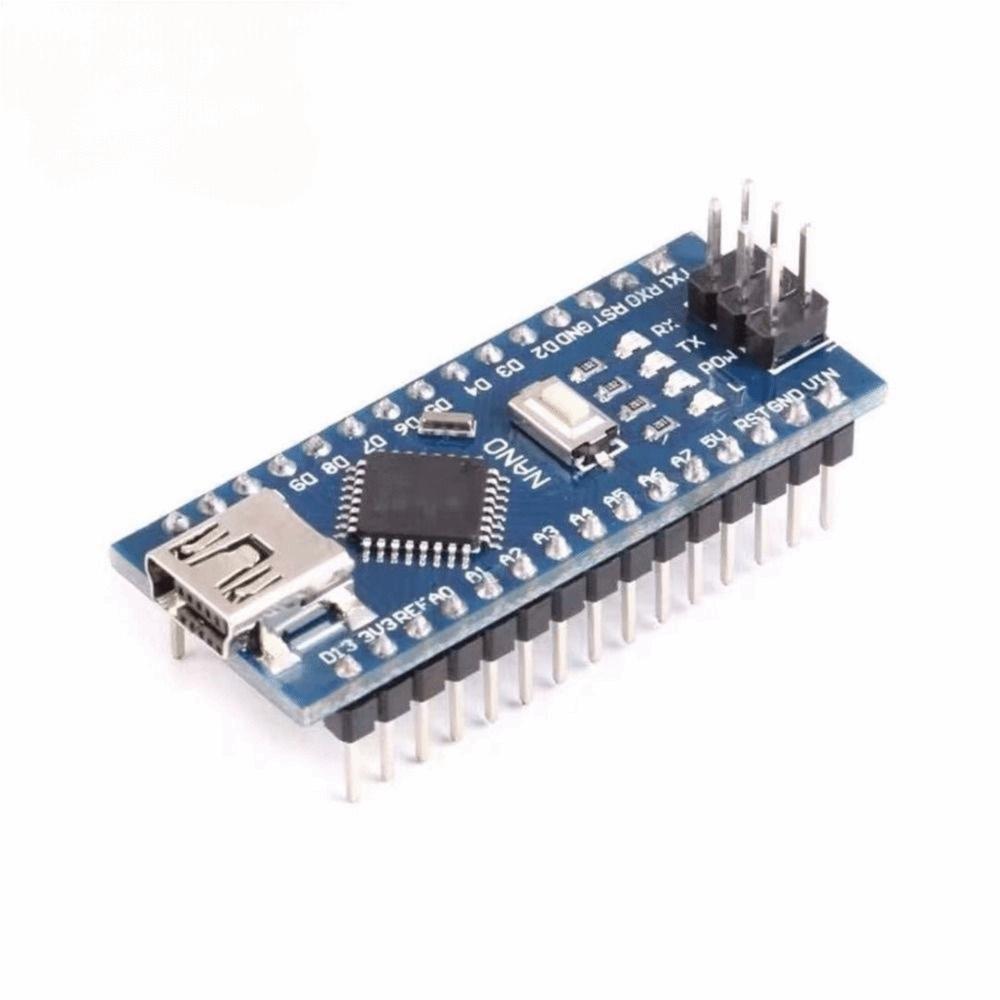

Type-C USB Nano 3.0 Controller CH340 ATMEGA328P Compatible With Bootloader Arduino Projects

Label:Yes Material:Fiberglass Board Package Includes:1 Pc CH340 USB Driver Type:CH340 USB Driver Color:As the picture shown Size:43*18mm(1.69*0.71in)

Description: Nano is an ultra-small Simple 1/0 platform based on open source code. Compared with the previous USB version of Diecimila, Nano has a great advantage in size. It can be used to develop electronic devices that need to run independently and have interactive effects. It can also be used to develop interactive works that are connected to the computer and cooperate with Flash, Processing, Max/Msp, PD, wvwV and other software. This module modifies Ft232RL to CH340G, which can be used in Windows 8, Windows8.1, Windows 10 systems. For Windows 7 and above systems, as long as the network is connected, the system can automatically search for drivers without the need for users to download drivers. On the premise that the performance of NANO remains unchanged and the main control chip ATMEGA328P-AU remains unchanged, we replaced the USB chip to improve the download speed and increase the stability in win7/win8. 1. 12 digital input/output ports D2-D132, 8 analog input ports AO-A7 3. 1 pair of TTL level serial port transceiver ports RX/TX 4. 6 PWM ports, D3, D5, D6, D9, D10, D115, using Atmel Atmega328p-AU microcontroller 6. Support USB download and power supply 7. Support external 3.3V-12V DC power supply 8. Support lithium battery and 9V battery power supply 9. Support ISP download Instructions: 1. Download IDE2 of aduino, download USB chip driver 3. Plug in the NANO development board, the driver will be installed automatically 4. Select the board NANO in the die 5. Select the COM port, this can be queried in my computer, just the port in your uno development board 6. It is best to choose first, the routine program that comes with it, and burn it into it.
