Internal Combustion Engine Model Startable Water Cooled Vertical Single Cylinder Four Stroke Overhead Valve Engine Model

Wele to AllinBox！ AllinBox gathers countless interesting things related to life. Whether you are looking for household decorations to embellish your room, portable gear for outdoor trips, trendy accessories or playful small ornaments, you can always find satisfying choices here. Every item carries a different lifestyle aesthetic, open this box, and start a casual exploration of beautiful life.High-concerned chemical : None Warning : NO Gender : Unisex Model Number : Engine Model Type : Engine Model Material : Metal

goni

Remend Age : 14+y

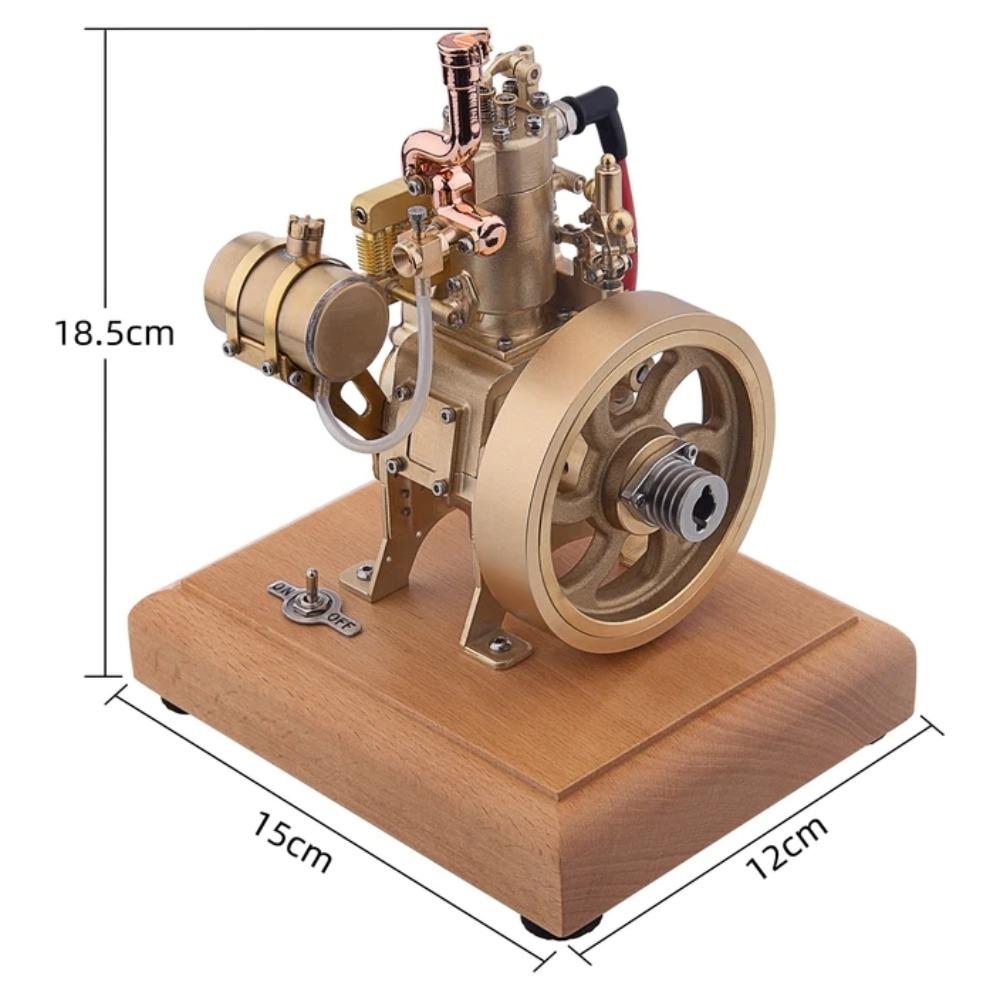

Internal Combustion Engine Model Startable Water Cooled Vertical Single Cylinder Four Stroke Overhead Valve Engine ModelSpecifications: .Material: Brass + Stainless Steel + Wood .Color: As Shown .Article Number: H73 .Engine Dimensions: 11 x 9 x 15.5cm .Engine Weight: 1500g .Wood Base Size: 15 x 12 x 3cm .Displacement: 2.6cc .Bore: 1.3cm .Stroke: 2cm .Ignition Power Supply Voltage: AA Batteries(Not Included) .Start Method: External Force(Electric Drill) or Hand Pulling

Package List: 1 x H73 Holt Engine Model Features: This is a water-cooled vertical single-cylinder engine with a speed limit mechanism and a radiator, crafted from brass and stainless steel with a wooden base for easy placement and handling.

Engine Start Methods: 1. Check engine circuitry from the wooden base, connect the fuel tank fuel tube, and install 3 AA batteries (4.5V). 2. Fill 95# gasoline into the tank. Rotate the flywheel clockwise on the right side of the engine (the surface of the power switch) for several times to make the mixed fuel enter the cylinder. Make sure that there is no air in the fuel tube.

3. Turn on the power switch, then quickly turn the flywheel clockwise to start the engine on the right side (power switch surface).

Precautions: 1. The engine will not start if the ignition device and the cylinder pression is normal, in that case the carburetor oil needle adjustment is needed. 2.After tightening the main oil needle on the carburetor, loosen the 1/4 ring and start the flywheel to make the mixing ratio of gasoline and air normal. 3.The power switch should be turned off when the machine stops running.
