12V 15V Output Power Supply Modules Low Noise Voltage Converter Module TPS5430 Module DIY Projects

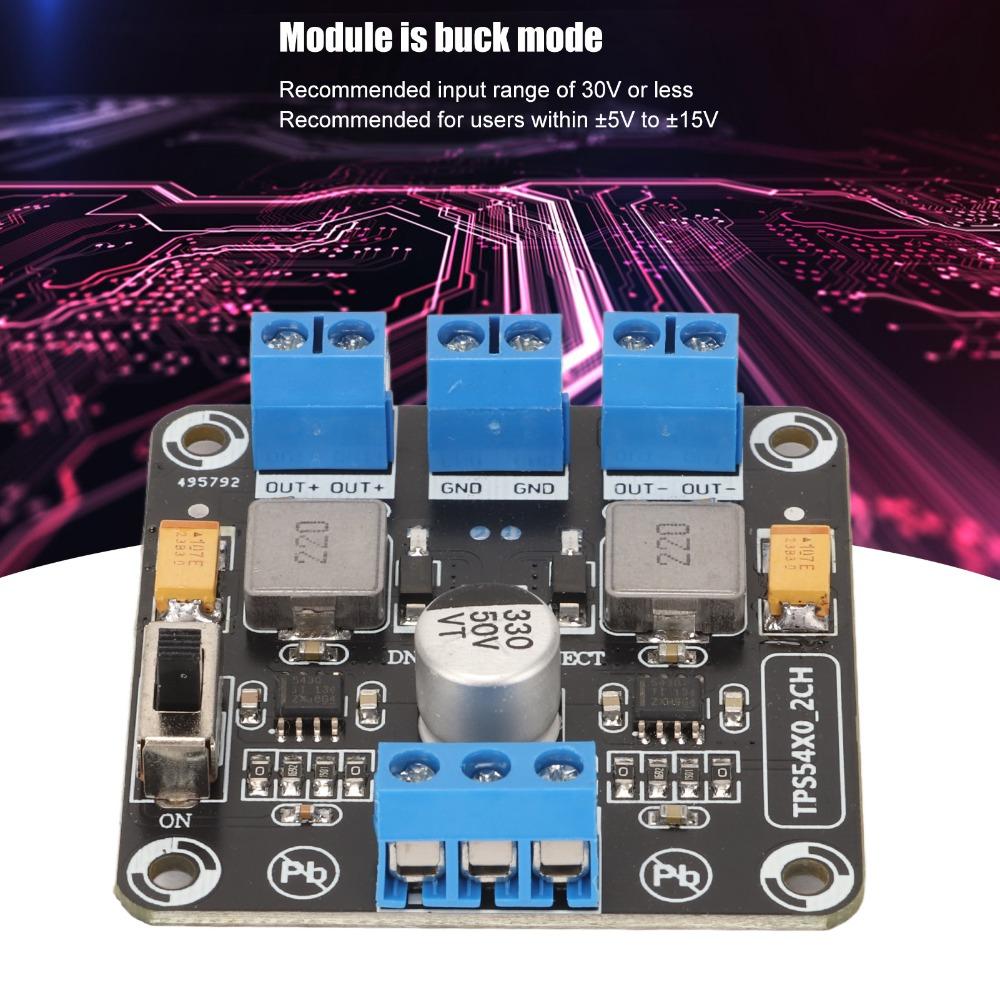

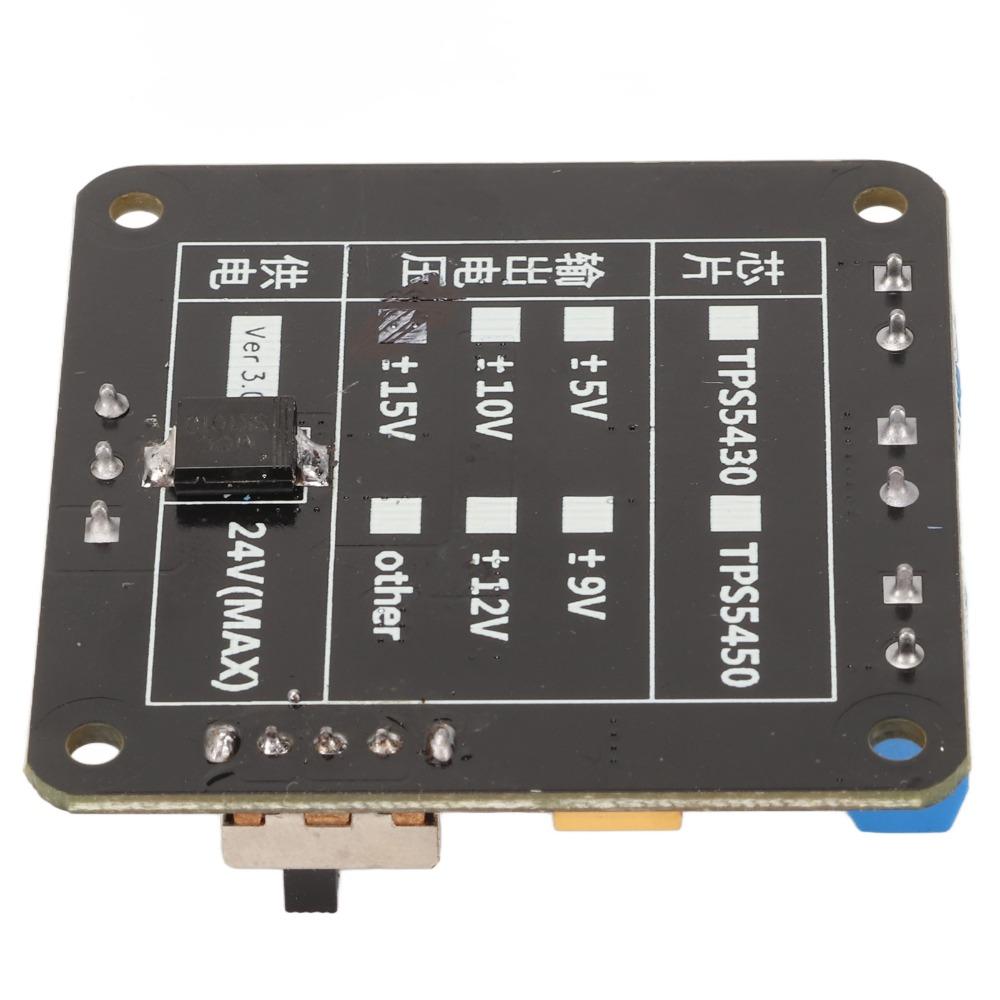

Label:Yes - Output Voltage: Recommended operating range is ±5V to ±15V. Common output voltages include ±5V, ±9V, ±12V, and ±15V. - Application Range: Positive and negative output modules are widely used in industrial automation control, LED lighting, industrial control equipment, communication devices, power equipment, and measuring instruments. - Input Voltage: These dual power supply modules are bucks-type, so a certain voltage difference between input and output must be maintained. In actual testing, the module shuts off output directly when input voltage falls below 5.5V. It is recommended to use within a 30V input range. - Heat Dissipation: The module is supplied without auxiliary cooling. Under convection without extra heatsinking, TPS5430 is recommended for long-term operations at P≤10W, and TPS5450 at P≤15W. - Practical & Reliable: Dual-output power module features reverse polarity protection, low noise,Equipped with input/output power indicators and mounting holes.

Specification: Item Type: Positive Negative Dual Output Module Material: PCB Size:5.2*5cm(2.05*1.97in) Color:As shown in the figure Module Model: Multi Circuit Power Supply Module Type: Switching Power Supply Input Voltage: 5V to 40V Output Voltage: Multiple 3.3V, 5V, 12V, ADJ Output Current: 3A (maximum) Module Single Circuit Current Up to 3A, The Total Current Does Not Exceed 5A Conversion Efficiency: 85% Output Power: 9.9W 3.3V,15W 5V,36W 12V,36W ADJ Static Power Consumption: 26mA Switching Frequency: 150KHz Module Enable: None Module Protection: Reverse Connection Protection Module Features: Low Noise, with Input and Output Power; Indicator; with Positioning Holes Module Application: Industrial Automation Control, LED Lighting, Industrial Control Equipment, Communication Equipment, Power Equipment, Instrumentation

Note:  1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.

Package List: 1 x Positive Negative Dual Output Module
