A/C Refill Kit R1234YF With Sealant

CAR AIR CONDITIONING FILLING KIT R1234YF REFRIGERANT SEALANT

Why is it worth choosing FixClima products?

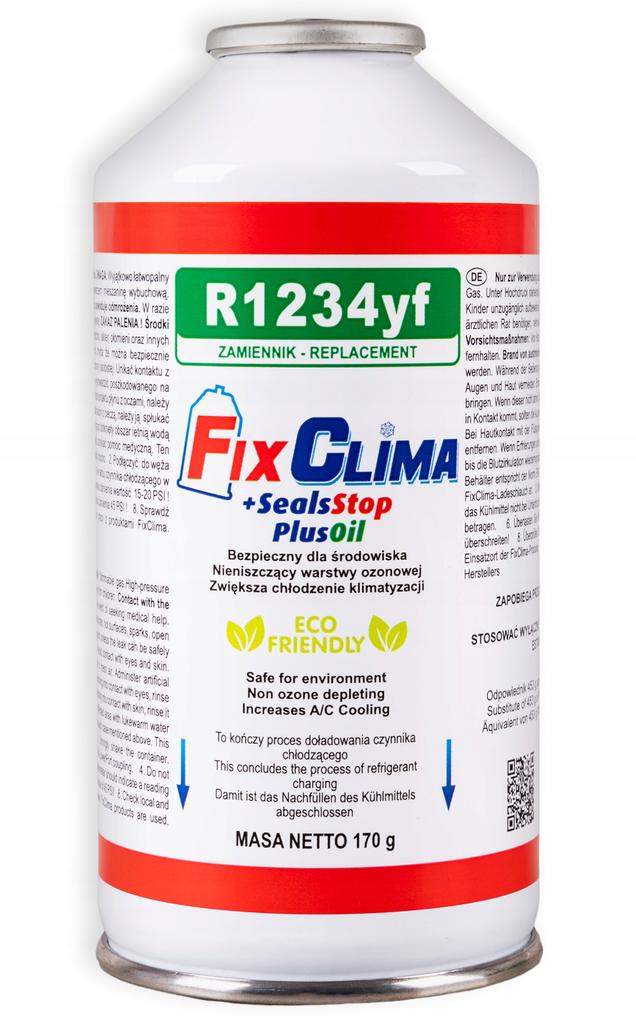

The set includes: - Gas sealant oil for filling the air conditioning in the car r1234yf (170g net - can) - Hose with pressure gauge - Adapter r1234yf

Why is it worth it?

FixClima SealsStop PlusOil is an innovative product that has three essential applications in the operation of the air conditioning system: - sealing the system - lubricating components - gas filling

This is an excellent alternative to expensive and time-consuming repairs performed by professional services.

An essential product that solves internal problems with small refrigerant leaks that occur in air conditioning system circuits.

Locates the loss of refrigerant and seals it permanently without contact with humidity and oxygen

Repairs leaks

ADVANTAGES OF THE FIXCLIMA PREPARATION:

It is distinguished by: - high quality (it will not damage any part of the air conditioning system) - efficiency (a 170 g can is the equivalent of 453 g of gas R1234yf - ease and speed of refilling (it takes just a few minutes and a hose with a pressure gauge) included in the kit, no additional tools needed) - oil is in the product (no oil addition required) - significantly improves the functioning of any air conditioning system

It is completely safe for the air conditioning system: - does not negatively affect compressor or other components - does not have corrosive properties - does not form acids in combination with moisture

Ensures safety filling: a pine aroma is added to the mixture during the bottling process. If the person performing the process smells it during the air conditioning filling, it will indicate a possible leak or a defect in the vehicle's air conditioning system.

FixClima refrigerant is an ecological preparation containing a natural hydrocarbon gas. It is completely safe for the environment and does not contribute to the formation of pollution, the ozone hole, or global warming.

Natural, fully organic properties make it a safe product: they eliminate any risk and danger of use. The lack of toxicity complies with the UN Montreal Protocol.

Gas for refilling car air conditioning:

The FixClima air conditioning kit is fully compatible with all oils found in air conditioning systems - ESTER and PAG (synthetic and mineral).

It consists of: - The perfect replacement for R1234YF gases

while being completely safe for every air conditioning system.

FixClima contains a synthetic lubricant that enhances the efficiency and safety of the compressor, improving its lubricity, which better dissipates heat generated during compressor operation, which reduces the risk of compressor failure. Before purchasing, please read the following information: Does this preparation fit my car?

This preparation is intended for cars from 2016, in which the air conditioning system is factory-filled with

R1234yf refrigerant - How much preparation do you need? One can contains 170 grams of FixClima refrigerant, which is equivalent to 453 grams of the previous refrigerant

R1234yf - If your car's system should contain up to 500g of refrigerant - 1 can is enough. If your car's system should contain over 500g of refrigerant - 2 cans are needed. - The thread in the FixClima can is M12 / 1.2 - INSTRUCTIONS FOR USING THE KIT:

In the hose in the needle valve, retract the needle as much as possible (by turning the knob counterclockwise).

Screw the valve onto the can. - Start the car's engine and air conditioning (closed-loop mode, maximum power, lowest temperature). - Connect the hose with the pressure gauge to the vehicle's low-pressure valve and position the can with the valve down. - Measure the system pressure (see the section on the pressure gauge). - Turn the knob clockwise to pierce the can with the needle and begin filling. - Stop charging when the pressure gauge needle is in the green area, i.e. between 25 and 55 PSI. - Disconnect the FixClima hose from the car's system and screw the hose nut onto the hose low pressure in the vehicle. - Leave the car with the engine running and the air conditioning settings as in point 3 for another several minutes. - After about two weeks, repeat point 5, i.e. check the pressure in the system. - -

Markings on the pressure gauge:

GREEN - range 25-55 PSI: proper, preferred pressure in the system. System filled correctly (see chart below).

RED color - above 55 PSI: system pressure too high. It should be reduced to the proper level.

PRESSURE AND AMBIENT TEMPERATURE:

The correct pressure in the air conditioning system indicated by the

pressure gauge

will vary depending on the ambient temperature: TEMPERATURE - PRESSURE: 18C - 25-35 PSI

21C - 35-40 PSI - 24C - 35-45 PSI - 27C - 40-50 PSI - 29C - 45-55 PSI - 32C - 45-55 PSI - 35C - 50-55 PSI - 38C - 50-55 PSI - 41C - 55 PSI - 43C - 55 PSI - The system can also be charged below 18C, but in such a situation - the pressure gauge

will indicate a pressure below 25 PSI. GASSEALANTOIL FOR FILLING THE AIR CONDITIONING IN A CAR R1234yf - (170g net - can) Hose with pressure gauge Adapter - Specifications and most important features: - Ease of use:

Quick and easy, in 5 minutes you can fill the air conditioning, without additional tools - Safety: The products are safe for air conditioning systems and do not harm the environment - Refrigerant R1234Yf: Ideal for cars from 2016 - Multi-variant offer: Wide selection of configurations and kits - Standalone application: Fill the air conditioning without visiting the workshop and save time and money - Question 3: What is the thread on the can? - Color White - Range 0-25 Psi: too Low pressure in the system. Refrigerant needs to be topped up. -

Refrigerant Type: R1234yf
