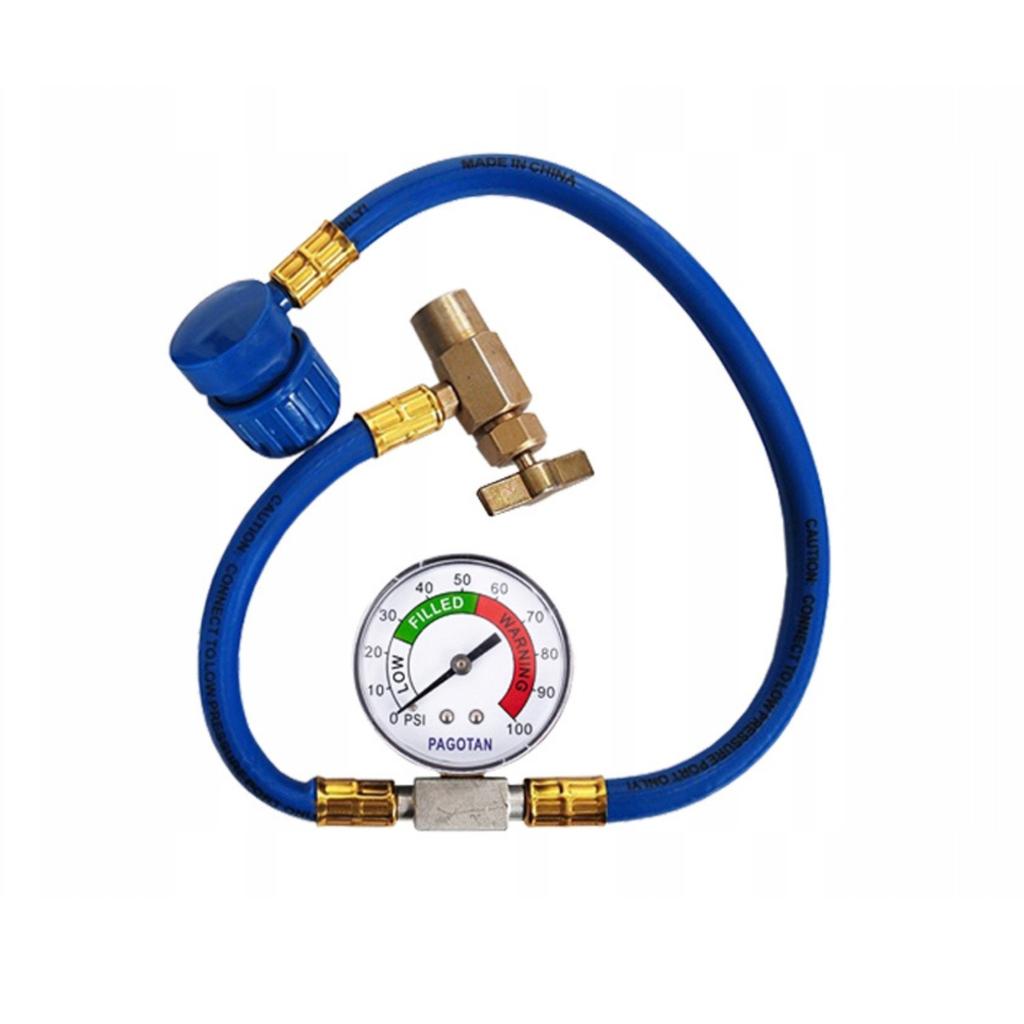

R134-A Refill Hose With Manometer

HOSE WITH PRESSURE GAUGE FOR FILLING R134-A

HOSE WITH PRESSURE GAUGE FOR FILLING AIR CONDITIONING GAS REFRIGERANT

The kit includes: - HOSE WITH PRESSURE GAUGE FOR FILLING REFRIGERANT

Key features

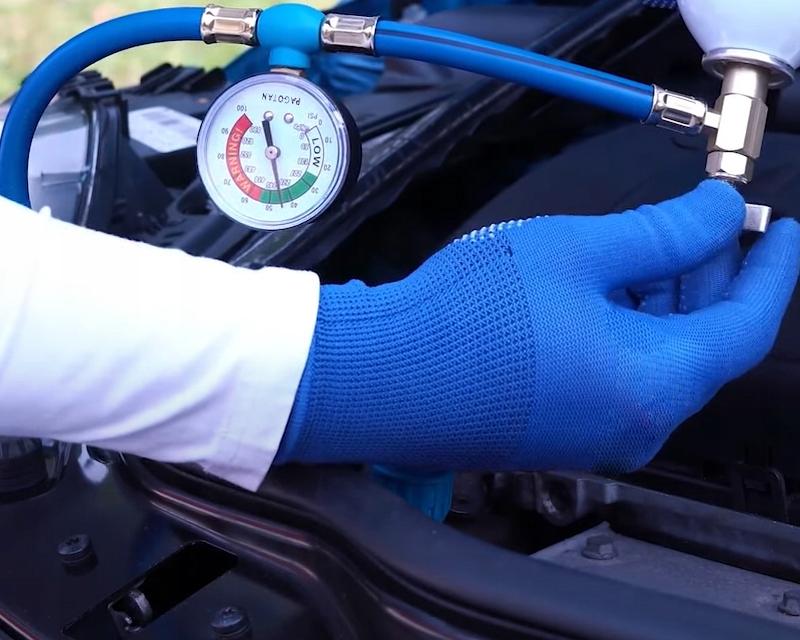

The hose with pressure gauge is necessary to top up the air conditioning system. After connecting to the low pressure valve, you will obtain a pressure reading on the manometer. It is reusable, so it does not pollute the environment.

Markings on the pressure gauge:

GREEN color - range 25-55 PSI: correct, preferred pressure in the system. System filled correctly (see the chart below).

PRESSURE AND AMBIENT TEMPERATURE:

The correct air conditioning system pressure indicated by the pressure gauge will vary depending on the ambient temperature:

TEMPERATURE - PRESSURE: - 18C - 25-35 PSI - 21C - 35-40 PSI - 24C - 35-45 PSI - 27C - 40-50 PSI - 29C - 45-55 PSI - 32C - 45-55 PSI - 35C - 50-55 PSI - 38C - 50-55 PSI - 41C - 55 PSI - 43C - 55 PSI

The system can also be charged below 18C, but in such a situation the pressure gauge will indicate a pressure below 25 PSI.

Specifications and key features: - White Color - Range 0-25 Psi: too low pressure in the system. It should be topped up with refrigerant. - Red Color - Above 55 Psi: too high pressure in the system. It should be reduced to the proper level.
