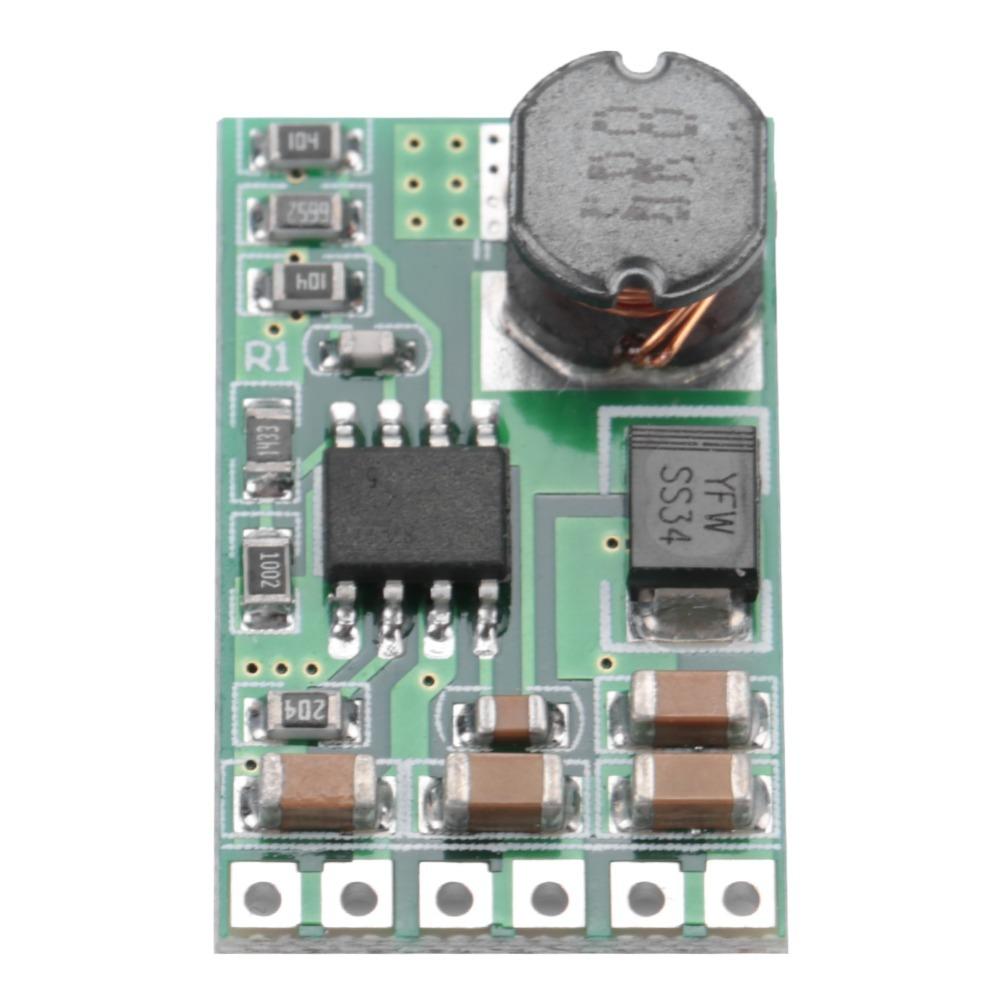

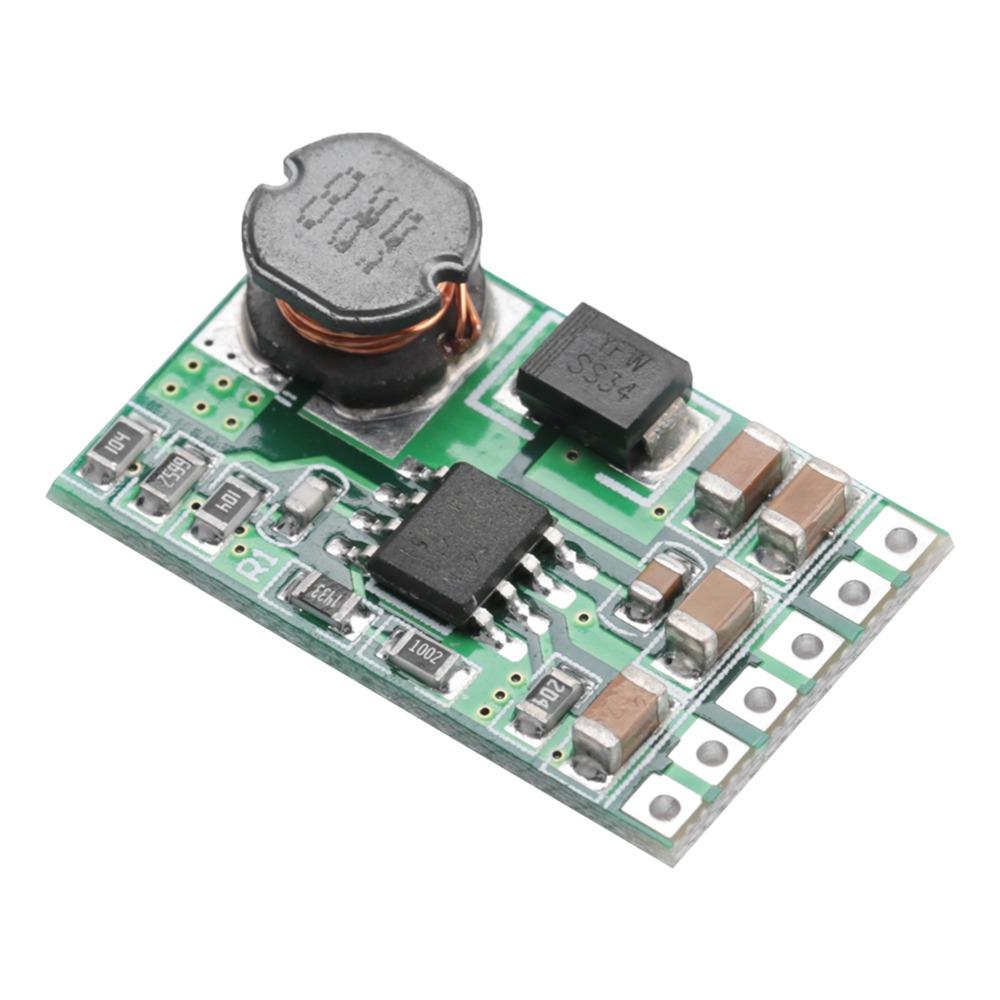

3.7V/5V/9V/12V DC-DC Converter Module 3.5A Power Supply Modul Step Down Converter Solar Projects

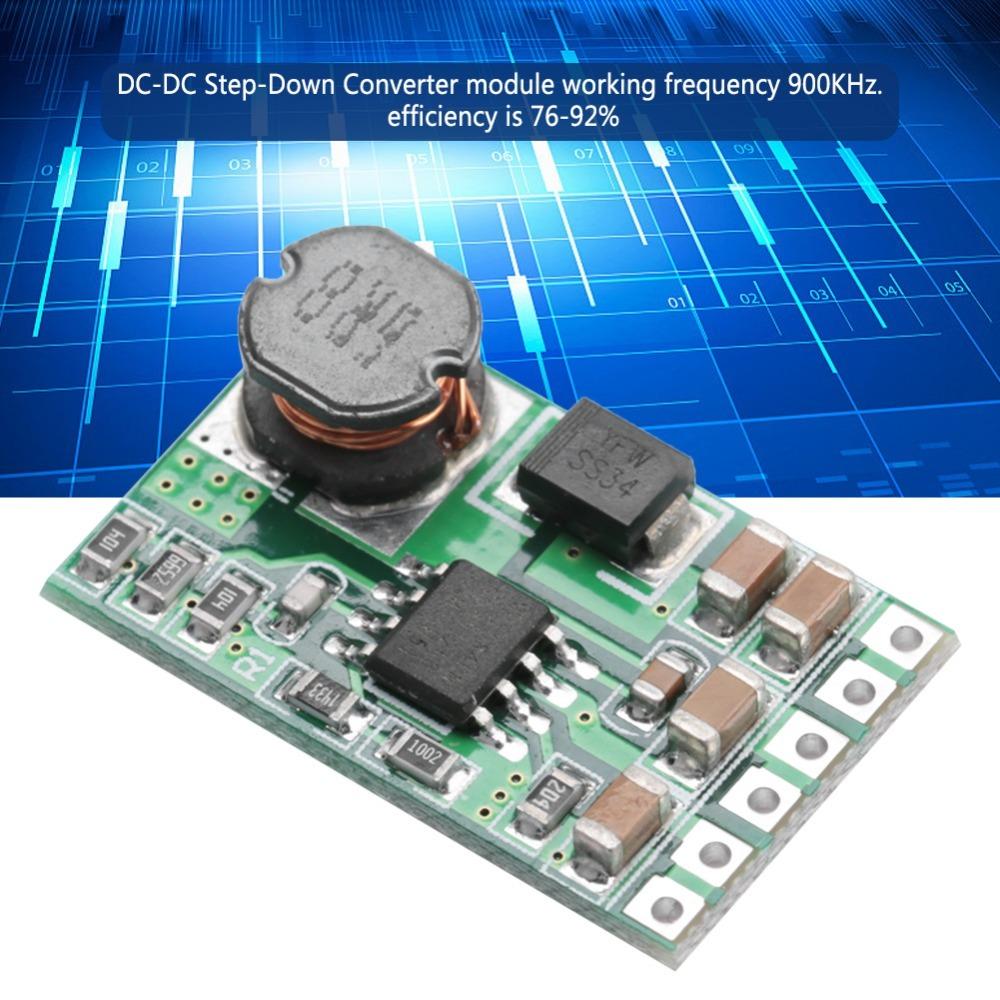

Label:Yes -Adopted of electronic components, and precision process, ensure for the durability -This is a Step-Down Voltage Converter Module -DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% . -Multiple voltage 3.7V/5V/9V/12V options are available to meet different needs -Over-temperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

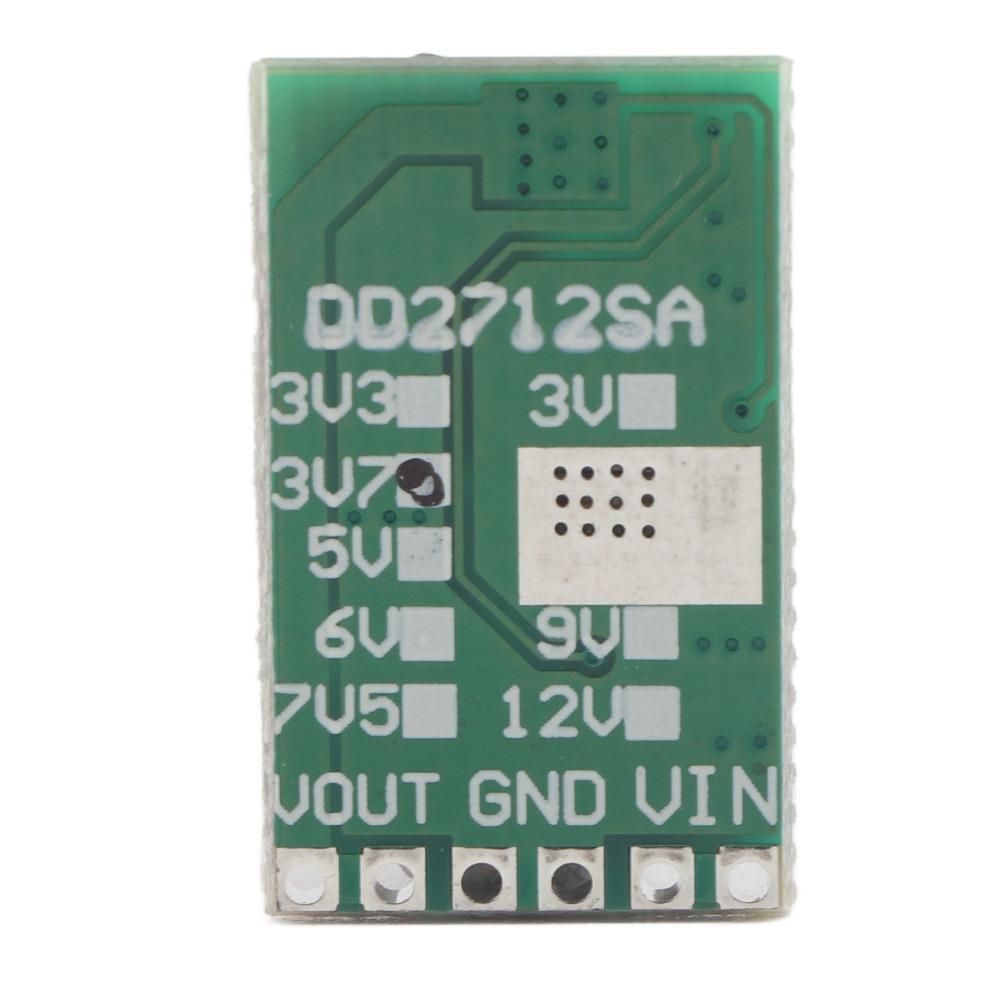

Specification: Type:Step-down power supply module Voltage: 3.7v, 5v,9v,12v(Optional) Operating Temperature : -20°C to +85°C Size: 25*15*6.3mm/0.98*0.59*0.25in Color:As shown in the figure

Description: 3.7V : Input voltage 4.5~27V,output 3.7V Maximum output current 2.5A,Short time maximum output current 3.5A 5V : Input voltage 6.5~27V,output 5V Maximum output current 2.5A,Short time maximum output current 3.5A 9V : Input voltage 11~27V,output 9V Maximum output current 2.3A,Short time maximum output current 3A 12V : Input voltage 13~27V,output 12V Maximum output current 2A,Short time maximum output current 3A DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% . Quiescent current: about 250uA Over-temperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Note:  1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.

Package list: 1 x Step-down power supply module
