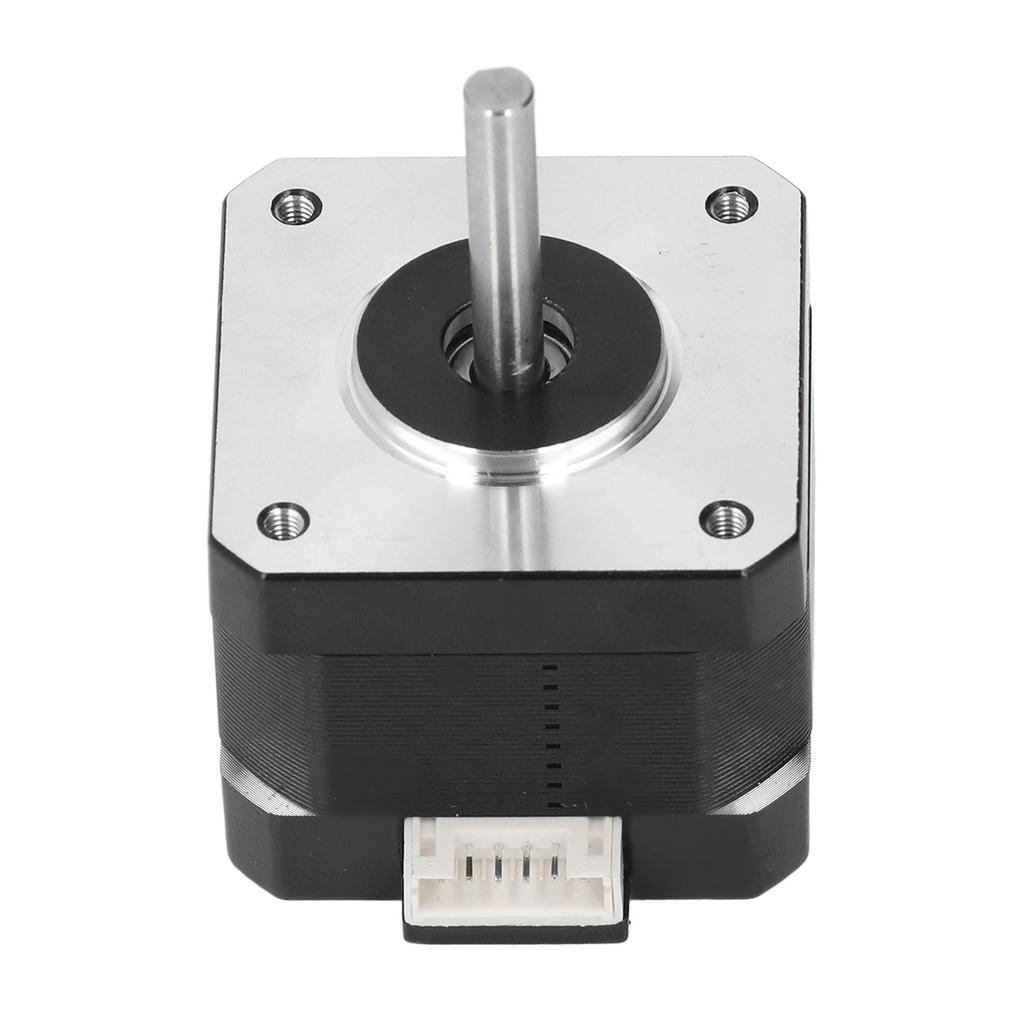

42 Stepper Motor 2 Phase High Temperature Resistant Carbon Steel Low Noise High Torsion 3D Printer Stepping Motor with Cable

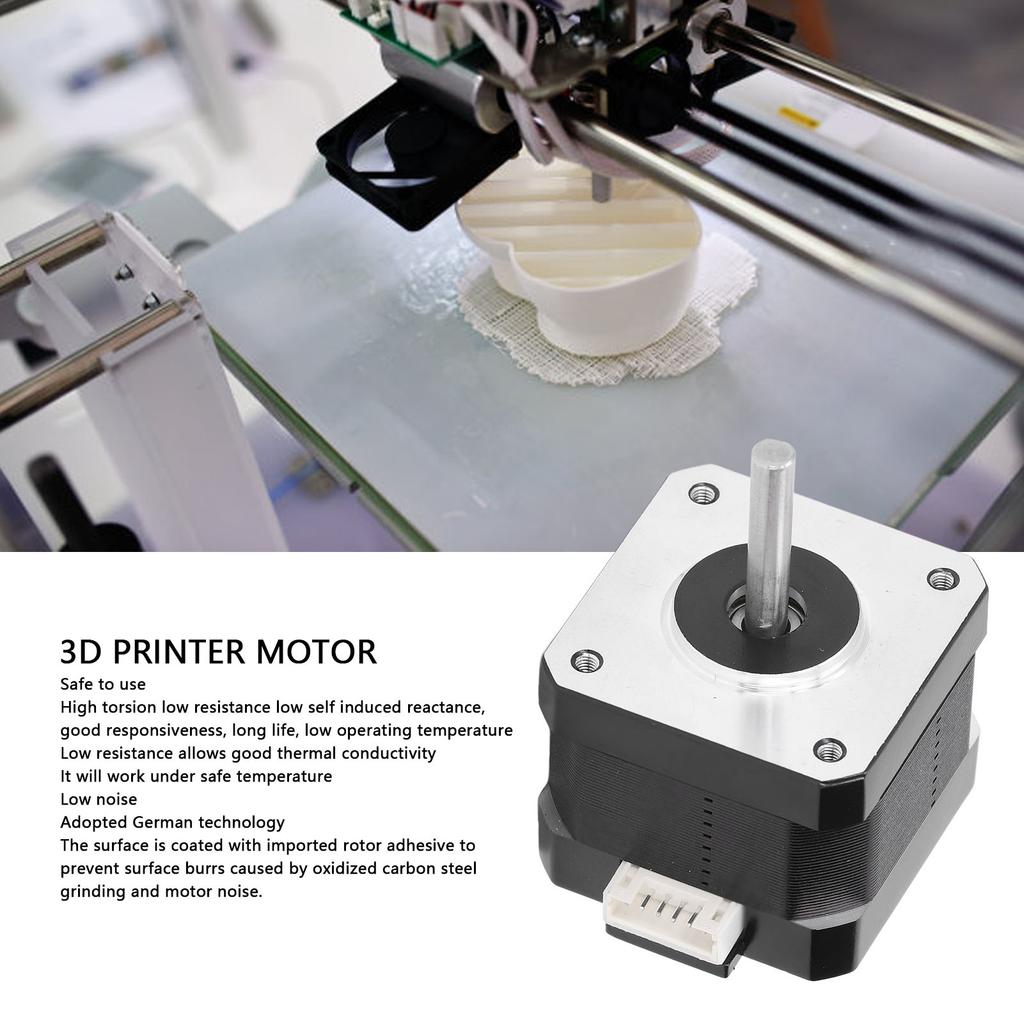

Feature: 1. Safe to Use: High torsion and low resistance for low self induced reactance, good responsiveness, long life and low operating temperature. Low resistance allows for good thermal conductivity. It will work under safe temperature. 2. Low Noise: It adopts German technology. And the surface is coated with imported rotor glue to prevent the carbon steel from oxidizing and grinding to produce surface burrs and cause motor noise. 3. Wide Application: Small stepping motor suitable for 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, placing machine, non standard equipment, automation equipment and many other fields. 4. Stable And Reliable: With its advanced magnetic circuit and low noise, it provides stable and reliable operation, ensuring accurate positioning and efficient motion control. 5. Metal Material: 3D printer stepper motor is made of carbon steel material, which is wear resistant and sturdy, will not be easily damaged and can be used for a long time.

Specification: Item Type: Stepper Motor Material: Carbon Steel Number of Phases: 2 Phases Step Angle: 1.8° Rated Voltage: 3.0V DC Rated Current: 1.7A DC Holding Torsion: 0.28N.M Min Starting Speed: 800 RPM Running Speed: 1000RPM Phase Resistance: 2.0Ω±10 Phase Inductance: 2.8mH±10% Rotor Inertia: 57 G.cm² Insulation Resistance: 100mΩ Min Insulation Class: B Grade Size: Approx. 42x34mm / 1.7x1.3in

Package List: 1 x Stepper Motor 1 x Wire

Note: All data are measured manually, and there are certain errors in the measurement results.
