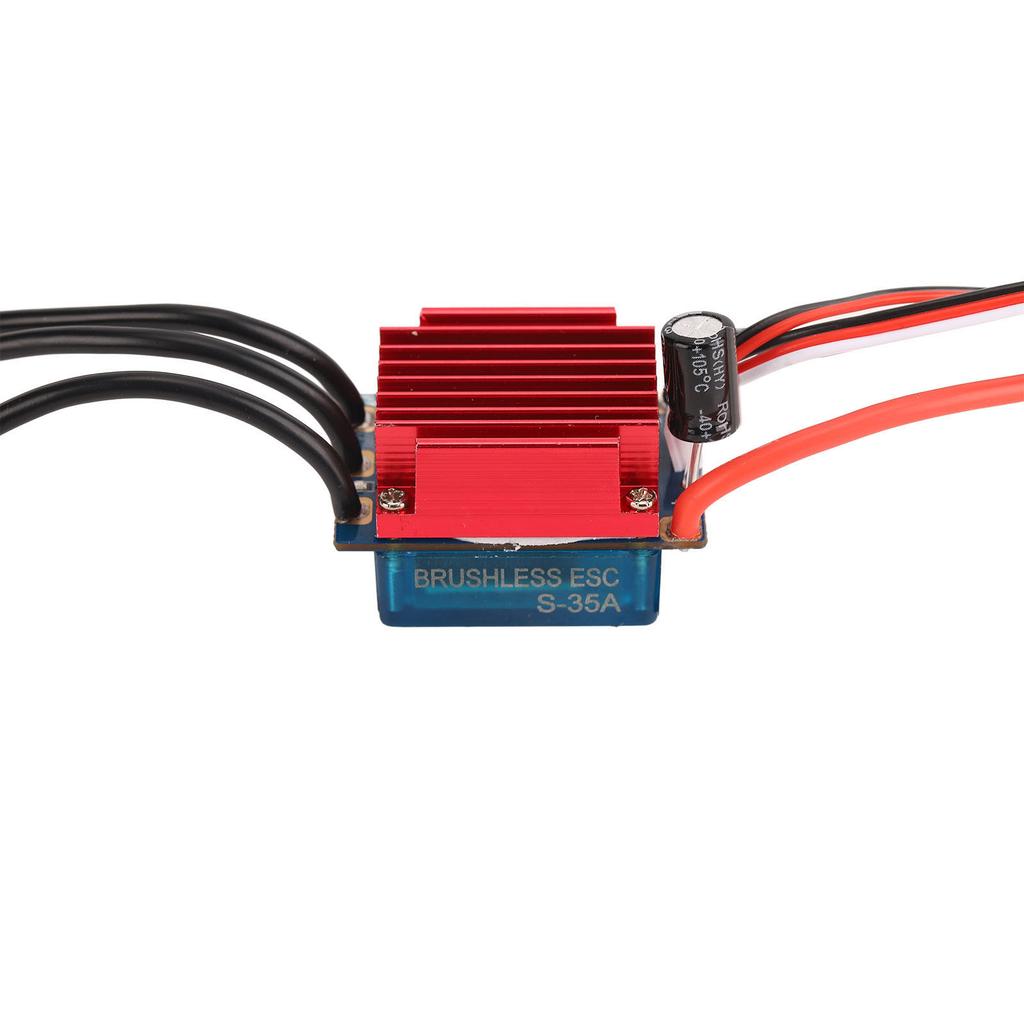

S2845 3700KV Brushless Motor 35A ESC Set Waterproof Electric Speed Controller for Traxxas for HSP 1/12 RC Car

Feature: 1. Motor Features: The brushless motor adopts 4 extremely high torsion rotor design, which has strong torsion and stable output power. 2. CNC Machining: CNC machining 6061 T6 aluminum front and rear covers, high purity high temperature resistant copper coils, effectively provide high efficiency. 3. High Toughness: High toughness stainless steel output shaft and high precise premium bearings make the motor super durable. 4. Premium Components: High performance, premium components make the components waterproof and dustproof, durable, strong resistive current capability, and good heat dissipation. 5. ESC Features: The most premium components ensure efficient operation, and the internal timing can be easily changed, making the ESC suitable for a variety of motors. 6. Multiple Protection Functions: Low voltage cut off protection, overheating protection, throttle signal loss protection, multiple protections. 7. Programmable Items: The brushless ESC comes with a wealth of programmable items, suitable for various RC tires and tracks.

Specification: Item Type: 2845 Brushless Motor Set Material: Aluminum Alloy, Plastic Gross Weight: 172g / 6.1oz Motor Parameters: Shell Material: Aluminum Alloy Color: Red Motor Size: Approx.47 x 28mm / 1.9 x 1.1in KV Value: 3700KV Power: 800W Maximum Speed: 50000 Rotor Pole Number: 4 Axial Length: Approx.15mm / 0.6in Axle Diameter: Approx.3.175mm / 0.13in Connector: Approx.3.5mm / 0.14in gold ESC Parameters: Continuous Current: 35A Peak Current: 120A (10 seconds) Battery(not included): 2-3 cells Lipo 4-9 cells NiMH Electrical Adjustment Size: Approx.41 x 27.5 x 25.5mm / 1.6 x 1.08 x 1.0in(excluding cable) Motor Connector: Approx.3.5mm / 0.14in Applicable: for Traxxas, for HSP and other brands 1/12 RC car

How to Use: 1. There is no strict line sequence requirement for the connection between the motor and the ESC. The A B C of the motor can be connected with the three wires of the ESC at will. If the direction is reversed, the two motor wires can be exchanged at will. Check: 2. Before turning on the power supply of the remote control car, be sure to double check the correctness of the power system connection and the reliability of the installation.

Package List: 1 x Motor 1 x ESC 1 x Manual
