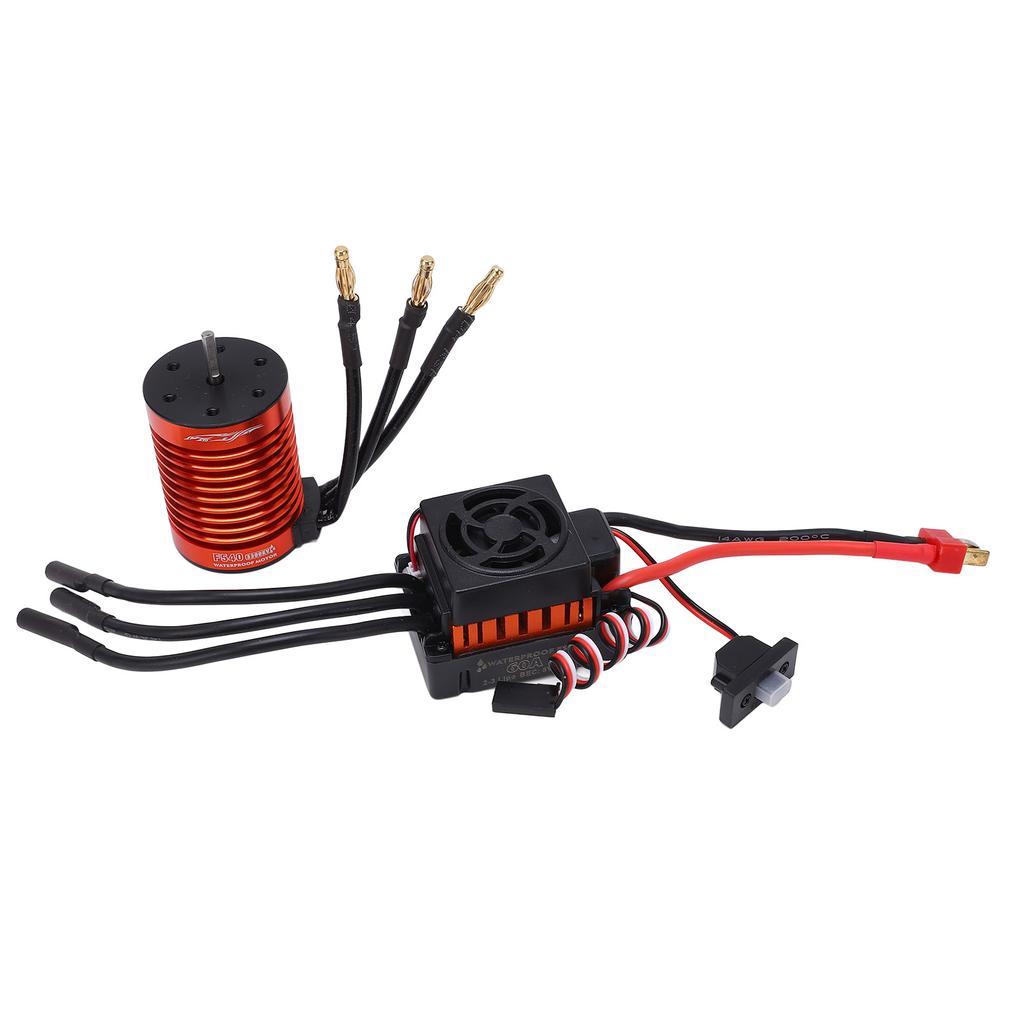

Brushless Motor ESC 4 Pole 12 Slot 3300KV Motor and 60A ESC for 1/10 Brushless RC Car

Feature: 1. [High Torsion] 4 pole 12 slot high torsion motor, CNC machined 6061 T6 billet aluminum cooler tank, secondary oxidation treatment, high end and fine appearance. Multiple protection functions, battery low voltage cut off protection, overheating signal loss protection, motor stall protection. 2. [Easy To Operate] High speed ABEC5 super durable sealed bearings, low friction, low noise, high accuracy, durable and long service life. Universal installation, 3.175mm shaft, suitable for all 1/10 brushless cars, M3 screws for a variety of installation methods. 3. [Sophisticated Design] Waterproof design, maximum power conversion, high purity copper coil, maximum efficiency, removable replaceable rotor. Strong current resistance, excellent heat dissipation, easy to program, compatible with pocket programming cards. 4. [High Balance Rotor] High balance explosion proof rotor, high smoothness, high accuracy and high speed, the dynamic balance is controlled within 10mg, and it can be disassembled and replaced later. 5. [Excellent Performance] RC brushless motor ESC combo ultra thin stator lamination (0.35mm), excellent performance, high magnetic permeability, high silicon content, good insulation heat resistance.

Specification: Item Type: Brushless Motor ESC Material: Aluminum Alloy, Copper, Plastic Color: Orange and Black Motor Model: F540 KV (RPM/Volt): 3300KV Watt: 800W Maximum Voltage: Maximum Amp: 45A Number Of Rotor Poles: 4pcs IO: 1.9A Maximum Speed: 50000 Diameter: Approx. 36mm / 1.42in Length: Approx. 50mm / 1.97in Shaft Length: Approx. 15mm / 0.59in Shaft Diameter: Approx. 3.175mm / 0.125in Motor Plug: 4mm Banana Plug 60A ESC: Continuous Current: 60A Explosion Current: 360A Battery: 2-3 seconds Li-ion battery, 4-9 seconds NiMH NiCd battery Bec Output: 5.0V/2A Power Plug: T Plug Connector ESC Size: Approx. 51x36x36mm / 2.01x1.42x1.42in (without cable) Fits All 1/10 Brushless RC Car

How to Use: 1. There is no strict line sequence requirement for the connection between the motor and the ESC. The #A #B #C of the motor can be connected with the three wires of the ESC at will. If the direction is reversed, the two motor wires can be exchanged at will.2. Inspection: Before turning on the power supply of the remote control car, be sure to double check the correctness of the power system connection and the reliability of the installation.Instructions for Use:1. Connect the BEC cable to the receiver.2. Connect the motor wires with the ESC.3. Turn on the transmitter.4. Connect the battery pack to the ESC and turn on E.5. When the connection of the motor to the battery is complete, the motor emits a "beep beep beep beep".6. The electric motor will re beep when the throttle lever is in neutral7. ESC works.

Package List: 1 x F540 brushless motor 1 x 60A ESC 2 x Manual

Note: 1. Due to manual measurement, please allow 1‑3mm / 0.04‑0.12in error, thank you! 2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
