RC 30KG Servo 30KG Aluminium Alloy Metal Gears Quick Response Waterproof RC Steering Engine with 25T Metal Servo Arm

Feature: 1. Metal Gears: This RC 30KG servo adopts metal gears in high accuracy with hard anodizing (Stainless steel gear). 2. Anti Interference: This RC servo adopts highly accurate potentiometer and high resolution digital chip, which provides strong anti interference. 3. Quick Response: This 30KG steering servo provides high-speed response, high efficiency and low power consumption. 4. Waterproof Servo: This 30KG steering servo adopts waterproof servo system, which can maintain good waterproof density in damp environment. 5. Aluminium Alloy: This RC 30KG servo is made from premium aluminium alloy material, which ensures long service life.

Specification: Item Type: RC 30KG Servo Material: Aluminium Alloy Color: Blue Size of Steering Gear: Approx. 40 x 20.5 x 40.5mm / 1.57 x 0.81 x 1.59in (Manual Measurement, Slight Error May Exist) Steering Angle: 180°/360° Operating Voltage: 4.8V to 7.4V Operating Temperature Range: -25℃ to 70℃ No Load Speed: 0.24sec/60° to 0.17sec/60° Operating Current: 140mA to 200mA Pulse Width Range: 500 to 2500usec Meso Position: 1500usec Peak Stall Torsion: 29.5kg.cm to 32kg.cm Dead Zone Width: 5usec Teeth: 25T Application: 1/10 RC Car, Remote Control Helicopter, Etc

How to Use: 1. Install the steering gear to the steering gear seat first, without installing the steering gear arm or steering gear protection. Just fix the servos. Then connect the servo to the receiver, usually the three lines of the CH1 or ST socket are divided into the bottom line, VCC, and signal/PWM.2. After the servo is fixed, turn on the remote control, turn on the ESC after setting, and then the servo will stop at a fixed position3. Without turning off the remote control and the steering gear, install the steering gear protection or the steering gear arm to the output gear of the steering gear.

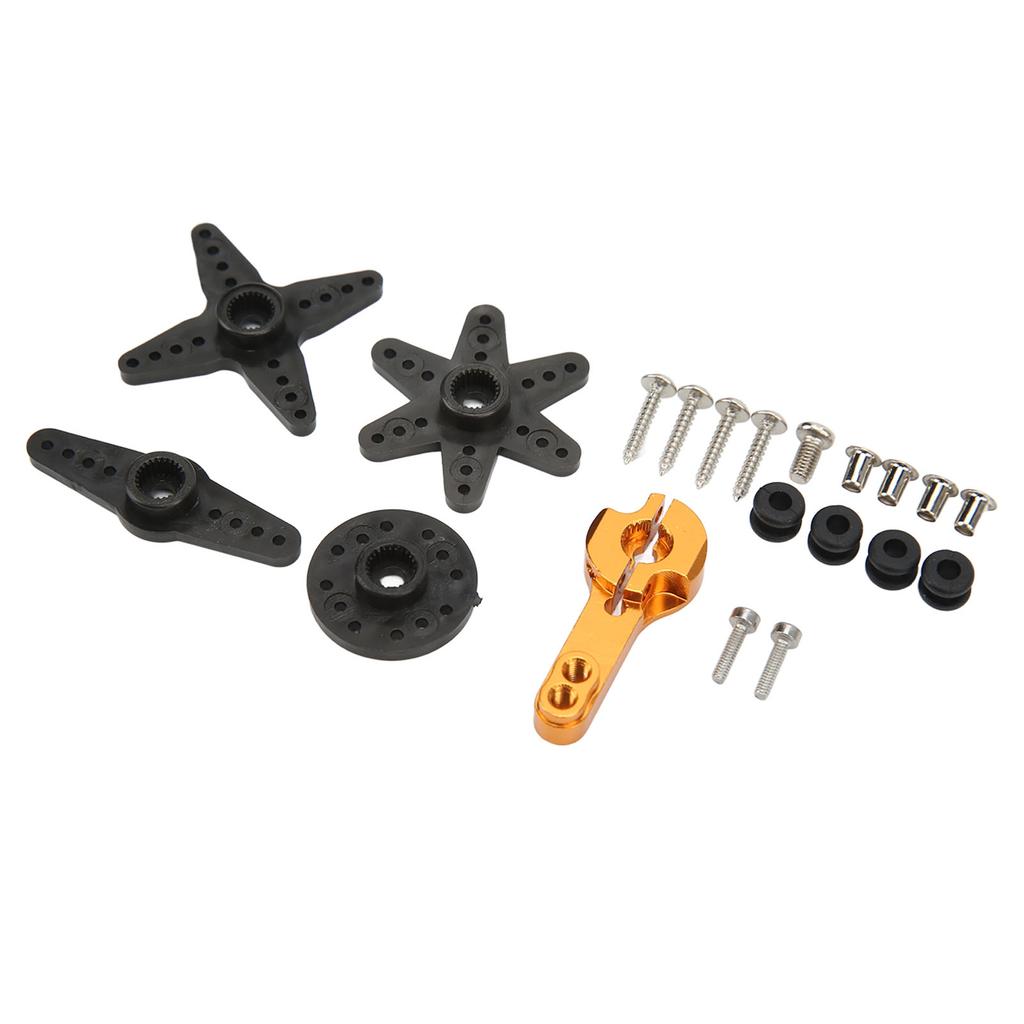

Package List: 1 xRC 30KG Servo 4 x Plastic Servo Arm 1 x Metal Servo Arm 7 x Screw 4 x Nonslip Sleeve 4 x Rubber Cushion
