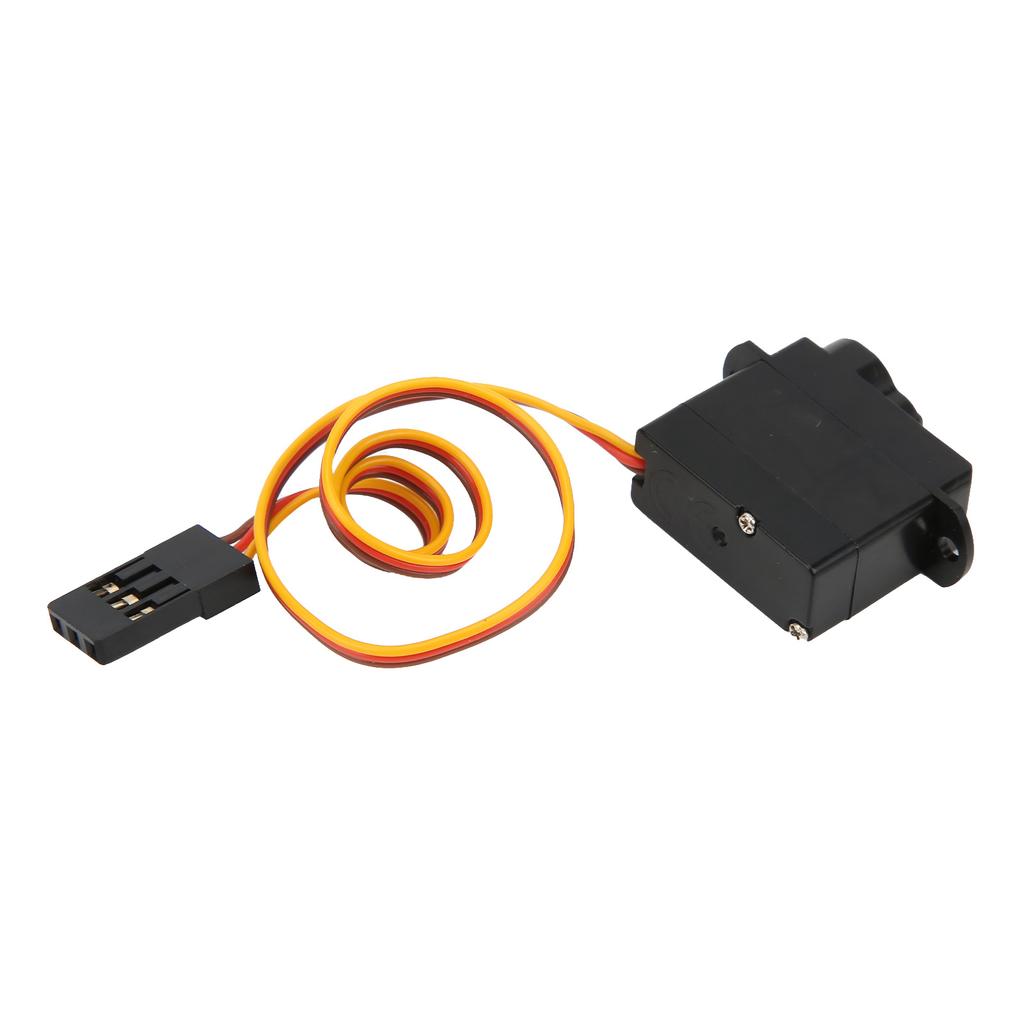

RC Digital Servo Set 3.7G Plastic Gear Servo for 1/24 RC Car Airplane FixedWing Helicopters

Feature: 1. Adopting high‑quality materials, it is durable, anti‑corrosion, to ensure long‑term use. 2. The plastic gear can withstand higher loads to ensure the normal operation of the servo. 3. High efficiency, low noise, low power consumption during operation, and easy installation and disassembly. 4. Comes with plastic gear, it has high precision and under digital control, more convenient to use. 5. It contains different servo arms to meet your needs and bring you convenience.

Specification: Item Type: 3.7G Digital Servo with Servo Arm Set Model: S0003P Material: ABS + Plastic Product Color: Black Product Size: Approx. 20.2x20.2x8.53mm / 0.8x0.8x0.3in Product Weight: Approx. 12g / 0.5oz Torque: ≥0.48kgf·cm Rated Torque: ≥0.35kgf / cm Voltage: 2.8-4.2V DC Speed: ≤0.1sec/60° at 4.2V Operability Angle: 180°±10°(500-2500μs） Mechanical Limit Angle: 360° Motor Type: Coreless Motor Compatibility: Suitable for 1/24 RC Car Fixed-wing, Helicopter, Aircraft

How to Use: 1. Install the servo to the servo base first, without installing the servo arm or servo protection. Only fix the servo. Then connect the servo to the receiver, usually the CH1 or for ST jack, and the three wires are the bottom wire, VCC and signal/PWN.2. After the servo is fixed, turn on the remote control, and turn on the ESC after setting it, and then the servo will stop at a fixed position.3. Without turning off the remote control and the servo, install the servo protection or servo arm to the servo output gear.

Package List: 1 x 3.7G Plastic Servo 4 x Servo Arm 3 x Screw

Note: 1. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard. 3. There will be differences in the installation of different grams of servos, please refer to the actual installation. 4. The accessories of different grams of servos will be different, please refer to the real object in the package.
