Feature:
1. Support Digital Audio Format Decoding: Support Digital AC‑3, DTS, PCM and other digital audio format decoding, multiple sound fields and two listening modes playback effects.
2. Excellent Sound Effects: Cooperate with different power amplifiers and speakers to obtain different sound effects, and easily connect a variety of entertainment equipment with digital optical fiber or coaxial or 3.5mm analog output.
3. Stereo Audio Output: 5.1 Digital audio decoder uses 24 bit audio DSP, 96 KHz digital receiver and 192 KHz/24‑bit ADC and DAC. Convert DTS/AC3 source digital audio to analog 5.1 audio or stereo audio output.
4. Wide Application: This audio decoder is widely used to decode the audio output of PC, notebook,HD players, decoders, and other audio and video players. HD audio can be provided for homes, schools, concert halls, etc.
5. 5.1 Channel Analog Audio Signal: The HD source digital audio signal is decoded into a 5.1 channel analog audio signal, and the stereo (R/L) analog signal is converted into a 5.1 channel analog audio signal.
6. Multi Channel Output: Two SPDIF optical fiber inputs, 1 coaxial input, 1 STEREO input, digital audio output, a more comprehensive multi channel switcher to the most convenient to carry around.
7. Convenient: RCA output interface, easily coupled to the power amplifier, one button multi channel switching, convenient and quick, and simultaneous stereo and 5.1 channel switching.
Specification:

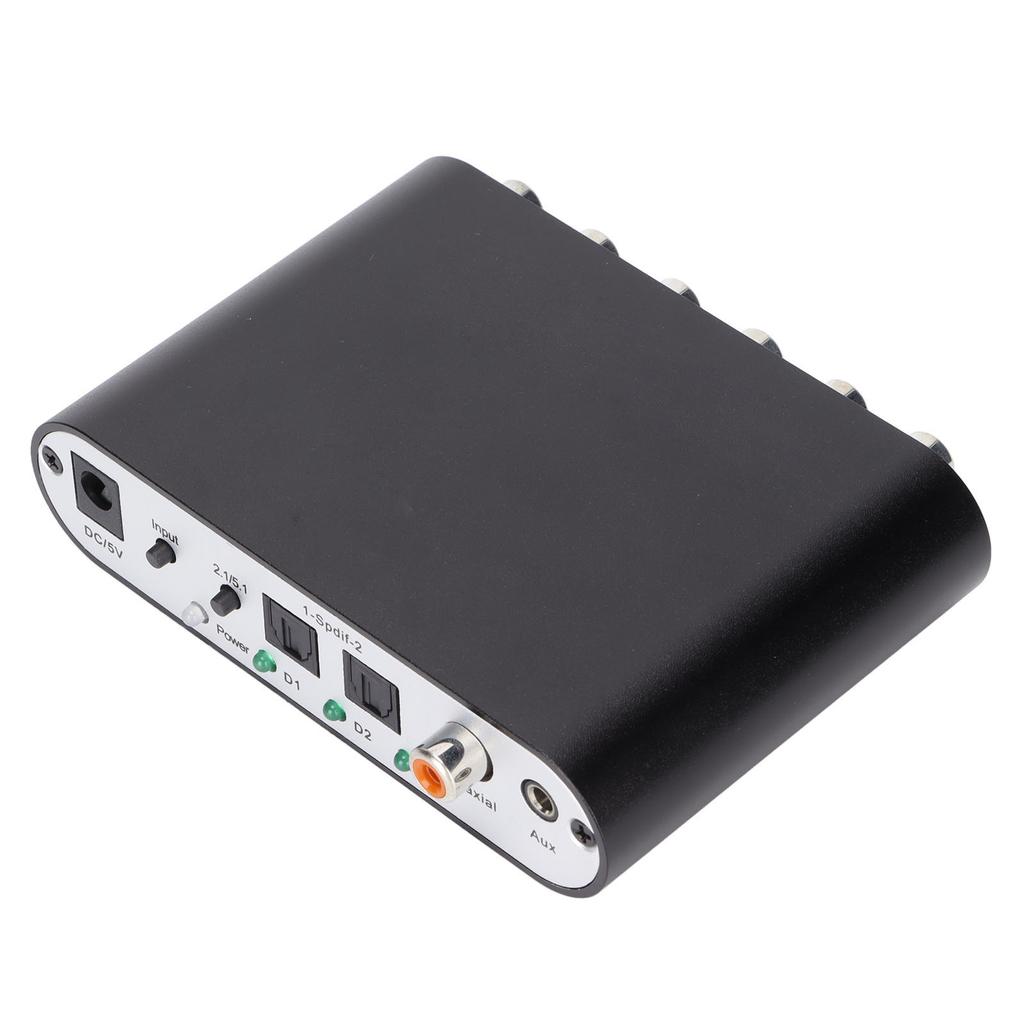

Item Type: Digital Audio Decoder
Colour: Black
Material: Metal
Function: Digital Audio Decoding
Application: Support Digital AC-3, DTS, PCM And Other Digital Audio Format Decoding
Signal Ratio: 120dB
Separation: 80dB (1kHz)
Channel Is Unbalanced: 0dB
Sample Rate: 32 ~ 192 KHz
Bit Rate: 16 ~ 24 Bit
Response Frequency: 20Hz ~ 20kHz +/- 0.7dB
Total Harmonic Distortion (THD): 20нz ~ 20kHz 0.25-0.065%
Total Harmonic Distortion + Noise (THD) + N): 1kHz 0.15%.
Analog Output Level: 2.2V
Analog Input Level: 1V (3DB)
Interface: 2 x Optical Axis Interface, 1 x Coaxial Interface, 1 x Headphone Input Interface, 1 x RCA Interface
Maximum Working Current: 400mA
How to Use:
Plug and play.
Package List:
1 x Decoder

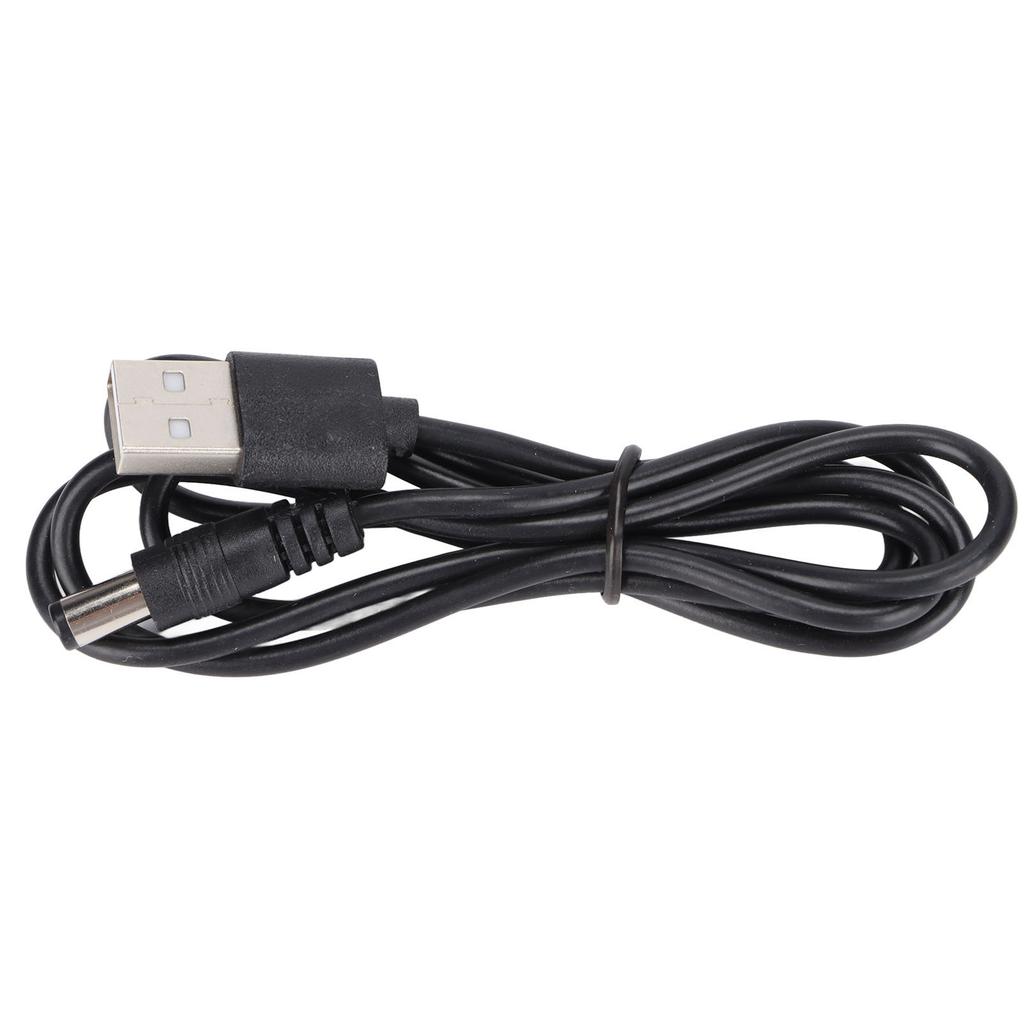

1 x Power Cord
1 x Manual
