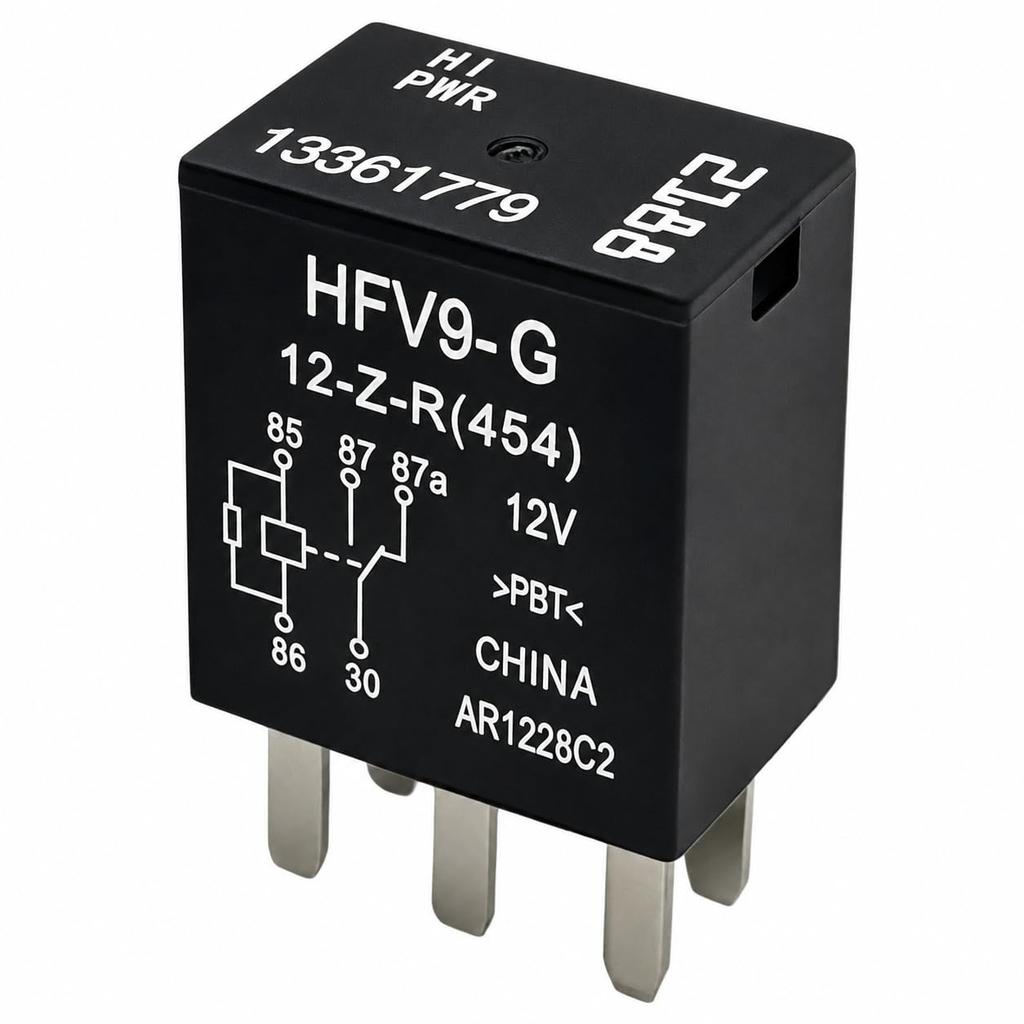

2-Pack HFV9-G 12-Z-R 13361779 Micro 280 5-Pin SPDT Automotive Relay, 12V 35A, Sealed, with Resistor - OE Ref 23886398; Match by Pin Layout

Specs & OE references — HFV9-G 12-Z-R

Micro-280 plug-in relay with 2.8mm terminals

12V coil (~124Ω @20°C)

SPDT (1 Form C)

35A max (NO, resistive load)

operating temp −40°C to 125°C

sealed housing

built-in parallel suppression resistor (R). OE refs commonly listed: 13361779 / 23886398 (verify molded number & footprint). Install location & operation — Plugs into Micro-280 relay sockets in fuse/relay boxes (engine bay or interior junction block). Standard 5-pin pinout: 30 (COM), 87 (NO), 87a (NC), 85/86 (coil). Resistor version: 85/86 are non-polar. Common uses (varies by vehicle/slot): headlight, fuel pump, horn, A/C compressor clutch, start/stop. Fitment rule (how to confirm) — For accurate fit, match (1) OE number on the old relay (e.g., 13361779 / 23886398), (2) Micro-280 footprint with 2.8mm terminals, and (3) the 30-87-87a-85-86 socket layout. Do not choose by vehicle model name alone

trim/market wiring differs. Durability & compliance — Extended-temperature under-hood relay design (up to 125°C) with sealed/dust-protected construction. RoHS & ELV compliant per manufacturer documentation. Built for demanding fuse/relay box environments. Failure symptoms this replaces — If the circuit tests good but relay output is inconsistent (e.g., no-start in a fuel pump relay slot, inoperative cooling fan or A/C clutch, horn/headlamp relay clicks with no output), swapping the relay is a common diagnostic step. Replace relays with heat-stressed terminals or a burnt housing. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom’s policies and EU Product Safety and Compliance laws.

Connector Type: Micro-280 Contact Type: Spdt Current Rating: 35 A Mounting Type: RM Operation Mode: Automatic Wattage: 1.2 watts Coil Resistance: 124 ohm Coil Voltage: 12 volts_of_direct_current Contact Current Rating: 35 A Maximum Switching Current: 35 A Maximum Switching Voltage: 13.5 volts_of_direct_current Minimum Switching Voltage: 12 volts_of_direct_current Upper Temperature Rating: 125 °C Brand Name: Kwaich Unit Count: 2 Count Manufacturer: RZ Part Number: 19116057 Specification Met: RoHS
