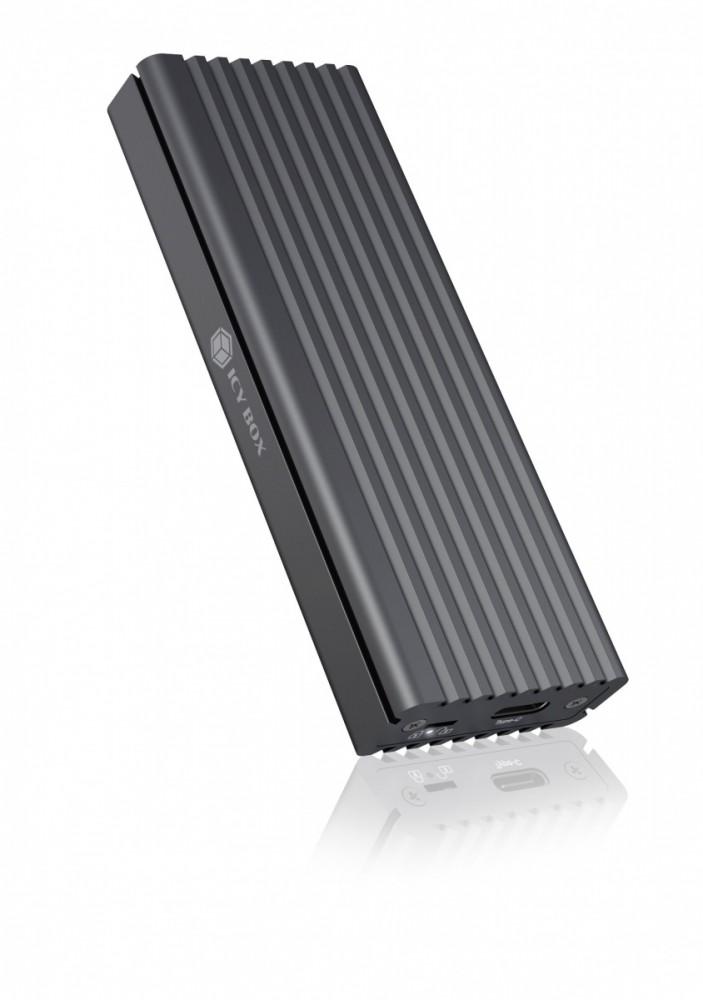

ICY BOX IB-1817MC-C31 NVMe&SATA M.2 SSDICY BOX IB-1817MC-C31 NVMe&SATA M.2 SSDICY BOX IB-1817MC-C31 NVMe&SATA M.2 SSDThe ICY BOX IB-1817MC-C31 is an enclosure designed for a single M.2 SSD and supports both NVMe and SATA drives. It provides an external storage solution for users who want to place an internal M.2 SSD in a portable enclosure and connect it to a computer through a USB interface.

This enclosure is suitable for working with different types of storage tasks, such as data transfer, backup, and using an SSD as a removable drive. It can be used with desktop computers, laptops, and other devices equipped with a compatible USB port. The dual support for NVMe and SATA makes it a practical choice for users handling different M.2 SSD formats.

A key benefit of this model is its USB 3.1 Gen 2 connection, which supports data transfer rates of up to 10 Gbit/s when used with a compatible host device. The enclosure includes both USB Type-C and Type-A connectivity for broader compatibility. It also features a write protection switch, which can help prevent accidental changes to stored files during use.

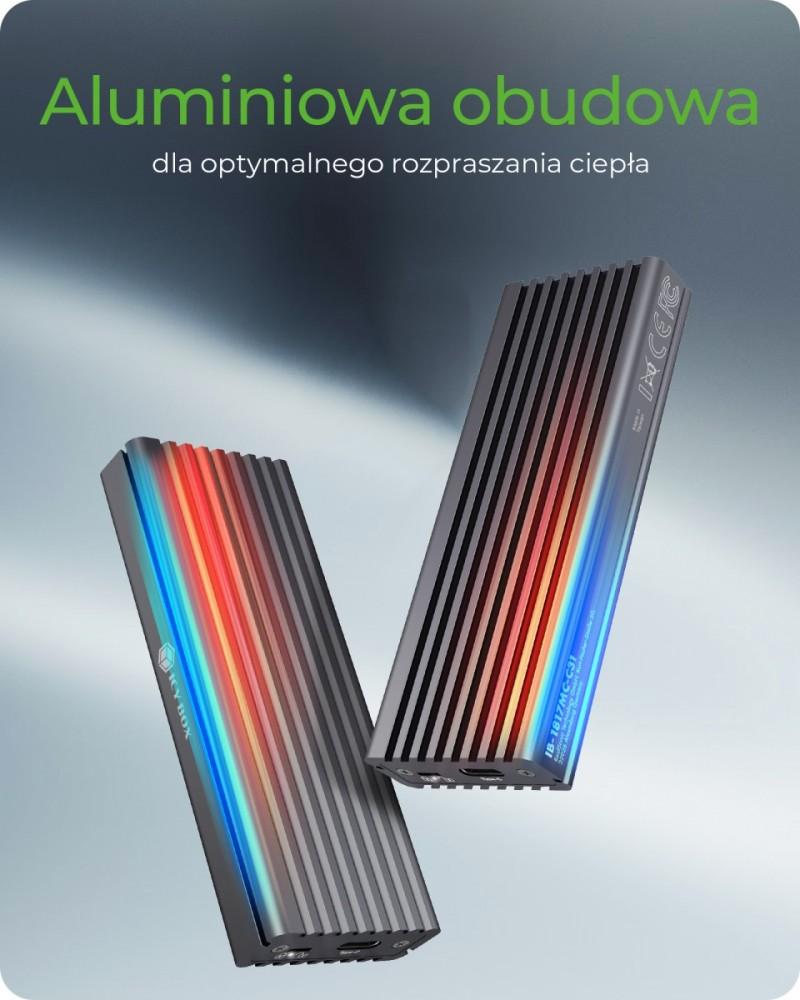

The enclosure is made of high-grade aluminium and uses a cooling fin design. Inside, it includes a patented heatsink and thermal pad to support heat dissipation during operation. These elements are intended to help maintain stable performance while the drive is in use, especially during longer transfer sessions.

The IB-1817MC-C31 accepts M-Key M.2 SSDs in sizes 22x30, 22x42, 22x60, and 22x80 mm. It supports PCIe 3.0 x2 and SATA III drives, making installation straightforward for compatible SSDs. A status LED is also included to indicate activity during operation. The durable metal housing and internal cooling elements make this enclosure suitable for regular everyday use.

Specifications: Model: ICY BOX IB-1817MC-C31 Type: M.2 SSD enclosure Supported drive types: NVMe and SATA Supported interface: PCIe 3.0 x2, SATA III SSD form factors: 22x30 mm, 22x42 mm, 22x60 mm, 22x80 mm SSD key type: M-Key Host interface: USB 3.1 Gen 2 Connector type: USB Type-C and USB Type-A Maximum transfer rate: up to 10 Gbit/s Housing material: Aluminium Cooling: Integrated heatsink and thermal pad Additional feature: Write protection switch Indicator: LED activity lightType: External enclosureForm factor (width): M.2Form factor (width) : M.2 2230Form factor (width) : M.2 2242Form factor (width) : M.2 2260Form factor (width) : M.2 2280HDD interface: SATAHDD interface : SATA III - 6 Gb/sHDD interface : M.2Connectors: 1 x USB (Type C)Stuff: AluminumSupported operating systems: Mac OSSupported operating systems : WindowsColor: GrayDimensions: 104x40x15 mmAccessories included: 1x IB-1817MC-C31 (drive not included), 1x Type-C to Type-C cable (20 cm), 1x Type-C to Type-A cable (20 cm), 1x Silicone thermal pad, 1x Heat sink, 1x Tool for write protection switch, 1x Screw driver, 1x Set of screws, 1x Quick installation guideEAN: 4250078172451Manufacturer: IcyBox22.87IcyBox

Color: gray
