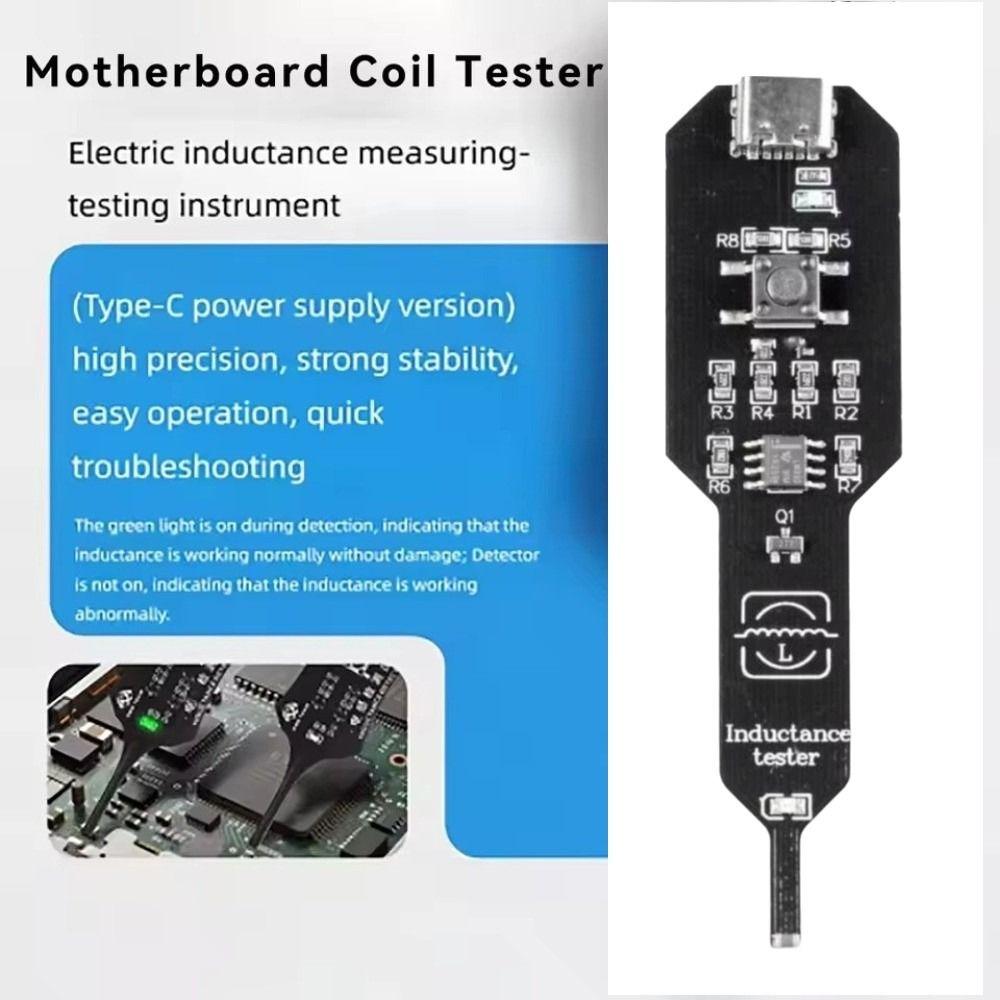

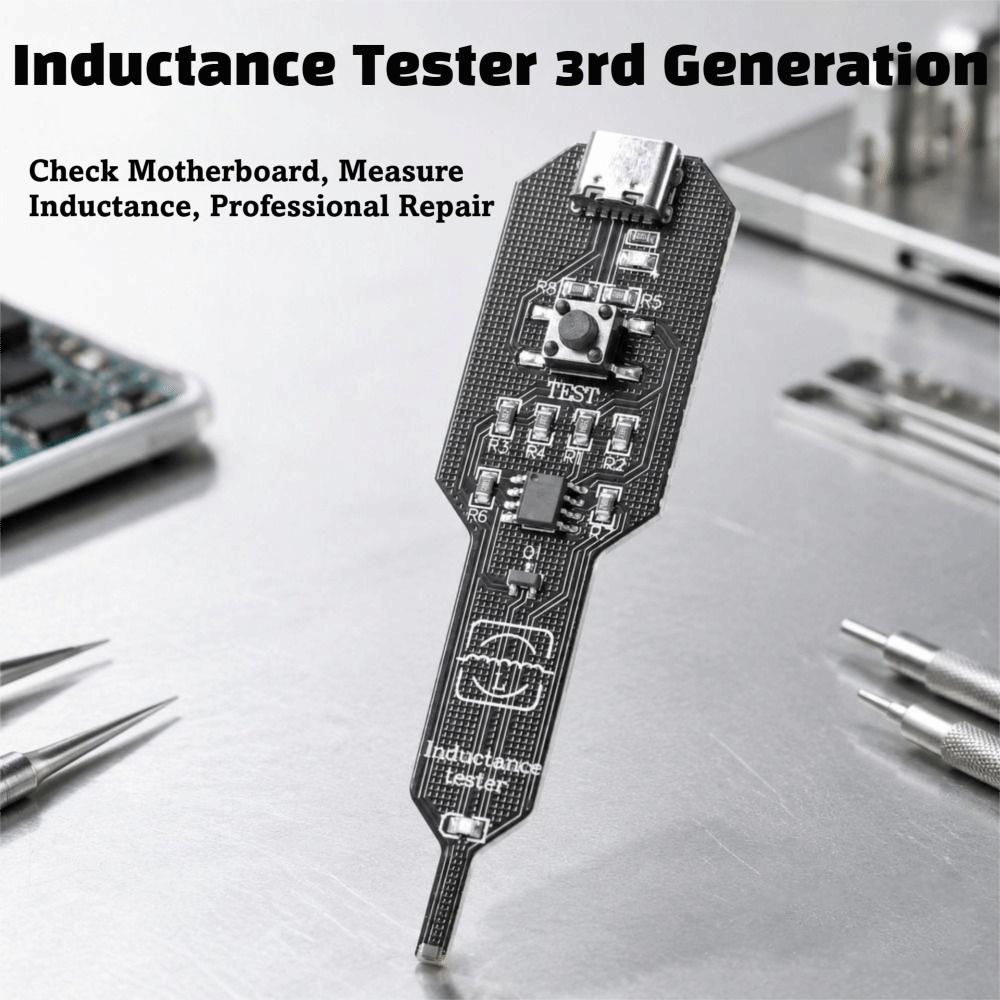

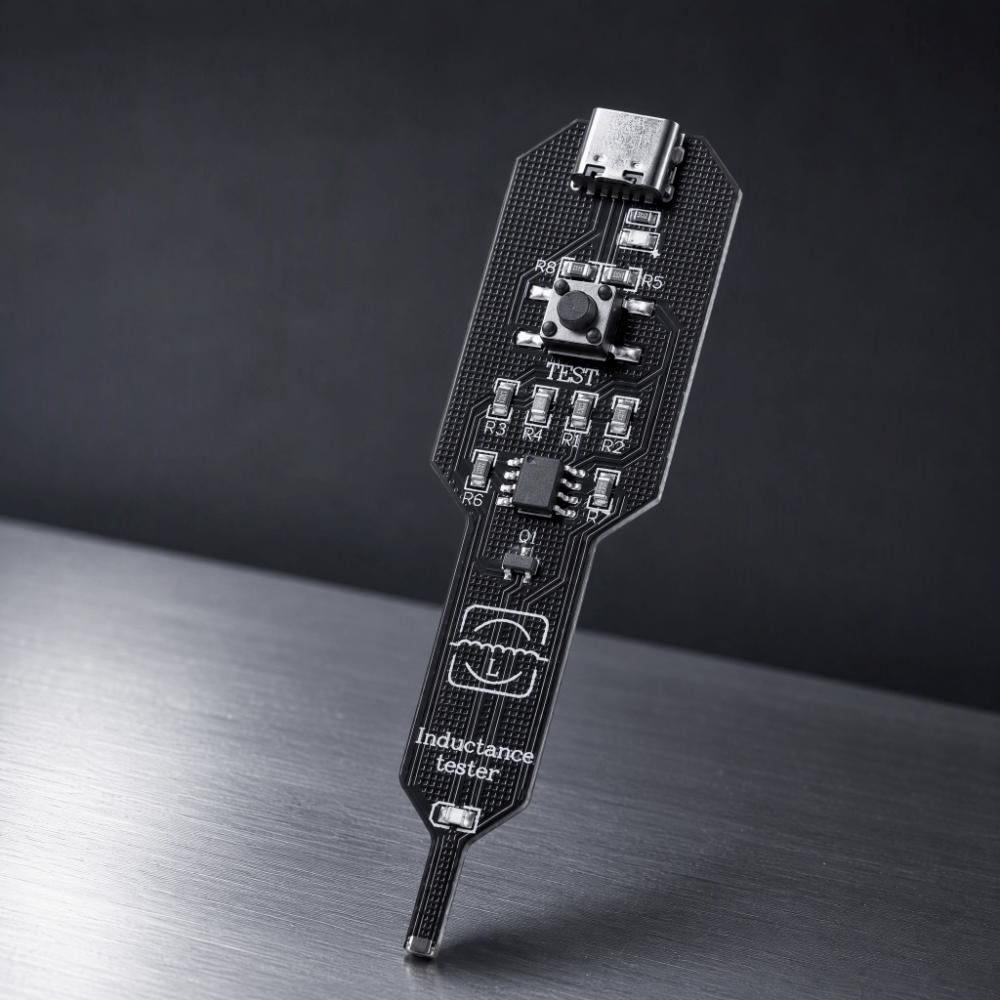

Third Generation Motherboard Coil Tester Electromagnetic Induction Tester Phone Motherboard Repair

Label:Yes Type: Motherboard Coil Tester Power Supplies:Type-C Package includes: 1Pc Motherboard Coil Tester(The product does not include a data cable) Size: 8*2.3cm Color: Black Material: Plastic;Steel

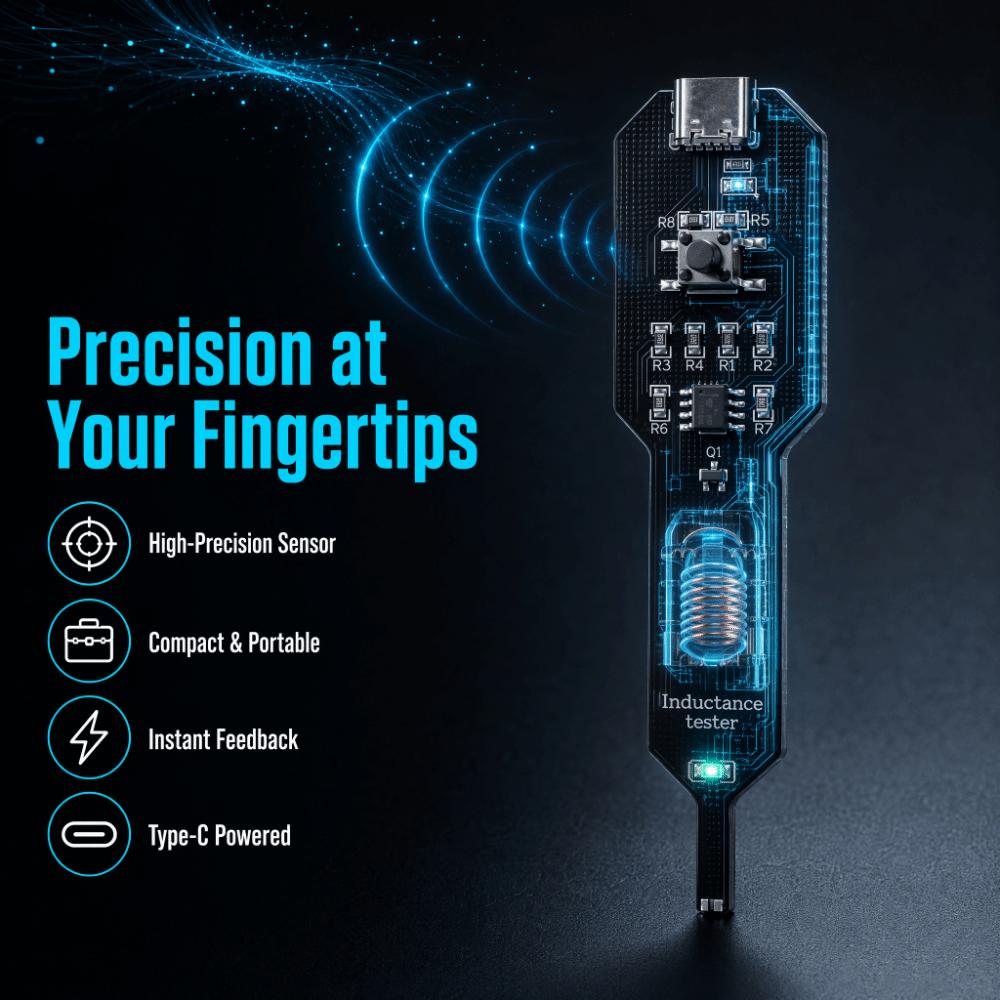

Features: Inductance Tester:Type-C power supply version,high precision, strong stability,easy operation, quick troubleshooting. Compact & Portable: Lightweight, handheld design makes it easy to carry for on-site repairs or workshop use. Quickly lock the fault point:The green light is on during detection, indicating that theinductance is working normally, no damage, detector is noton, indicating that the inductance is working abnormally. Professional-Grade Tool: Built with quality components for consistent performance and long-lasting service life. Designed for phone repair technicians, electronics engineers, and maintenance professionals. How to use:1. Plug In charger lead(Type-C interface);2. Press button, the sensing end is close to the inductance to be detected;3. When the indicator light is on, the inductance works normally.4. When the indicator light is not on, it indicates that the inductanceworks abnormally. The operation method is as follows: First, supply power to the tester. At this point, the circuit board does not respond. The tested circuit board also needs to be powered on before testing can be conducted. When testing the inductor, press the switch and bring the front section of the small board close to the inductor (do not place it directly on the inductor; some inductors are not insulated). The indicator light on the board will light up, indicating that the tested inductor is normal. If the indicator light does not light up when the front section is on the inductor, it indicates that there is a problem with the inductor and it needs to be repaired.

!!!Note: When using this, the tested motherboard must be powered on. If it is not powered on, it is impossible to test whether the inductor is functioning.
