HSS (High Speed Steel) Step Drill Bit Stop Collar Pocket Hole Drill Jig For Woodworking

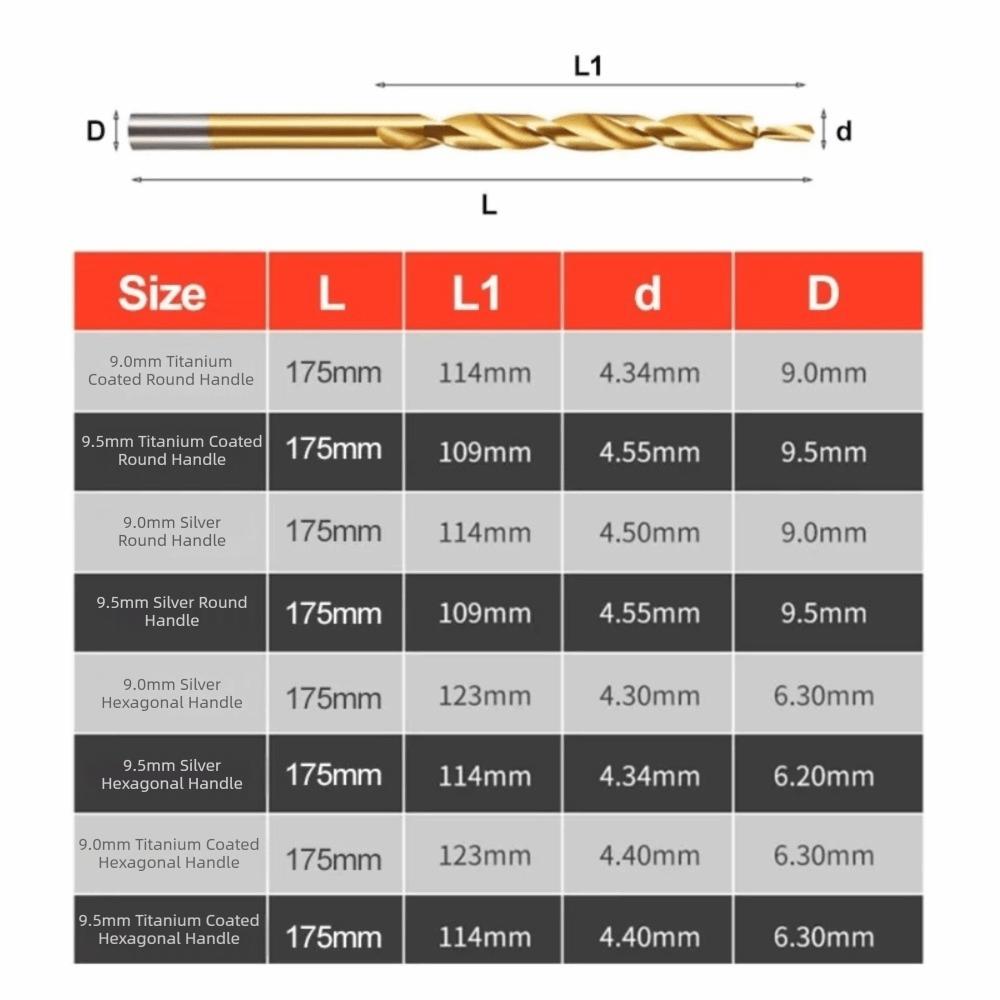

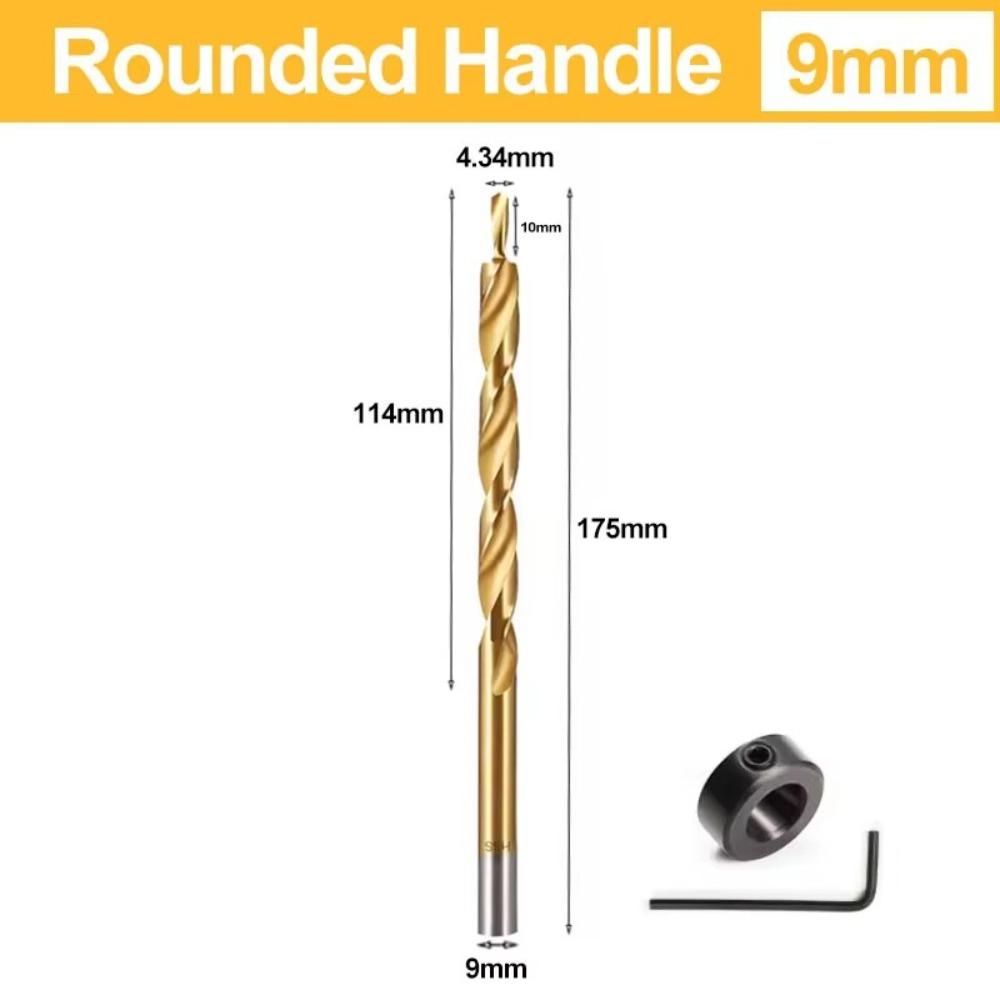

Label:Yes Category: Reaming Drill Material: High Speed Steel(Titanium plating) Shank Size: 9.5mm(0.37in)/9.0mm(0.35in)(optional) Application: Woodworking hole positioning Name: Woodworking Inclined Hole Locator Total Length: 175mm(6.89in) Handle shape: round shank, hexagonal shank

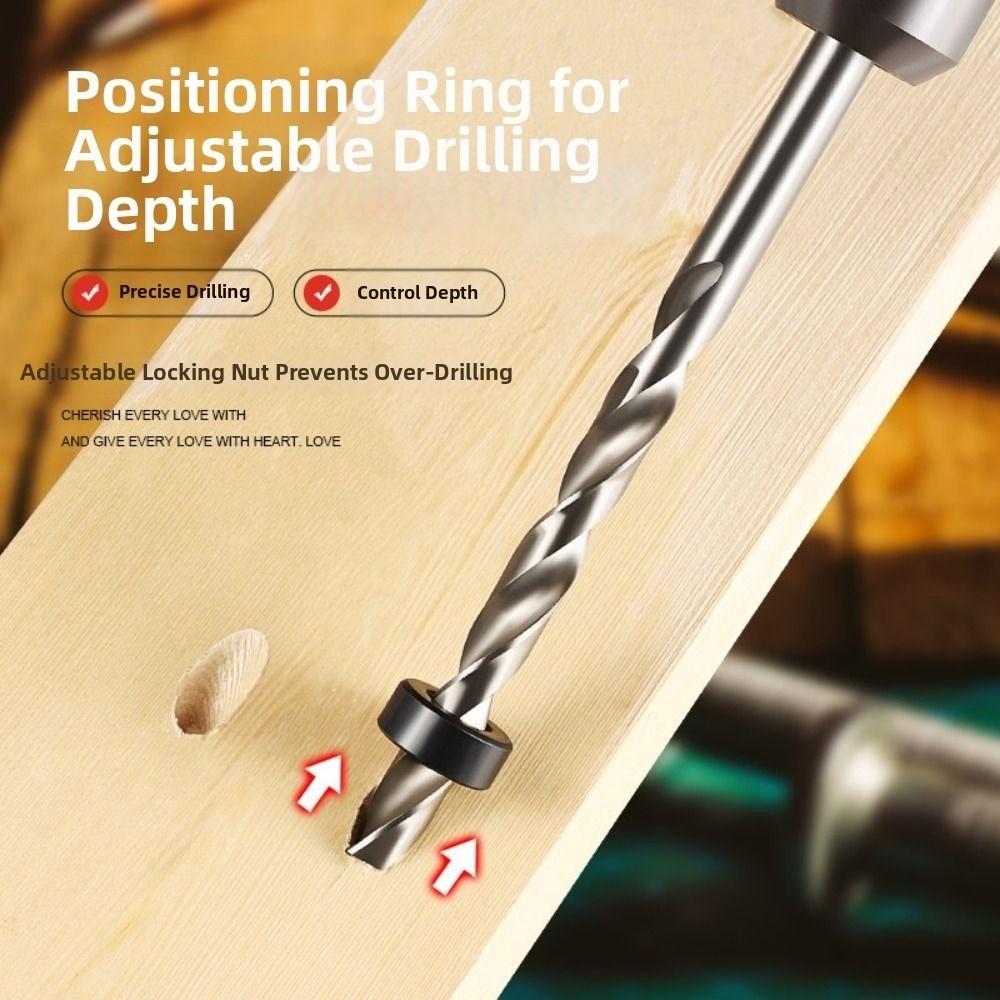

Features: Made of high quality material, durable and practical to use Large chip removal slot, smooth chip removal, low resistance and long service life Sharp side cutter, good centering, accurate drilling, not easy to deflect Hex shank design, suitable for most machines, strong operability Positioning ring design to control the height you want to select

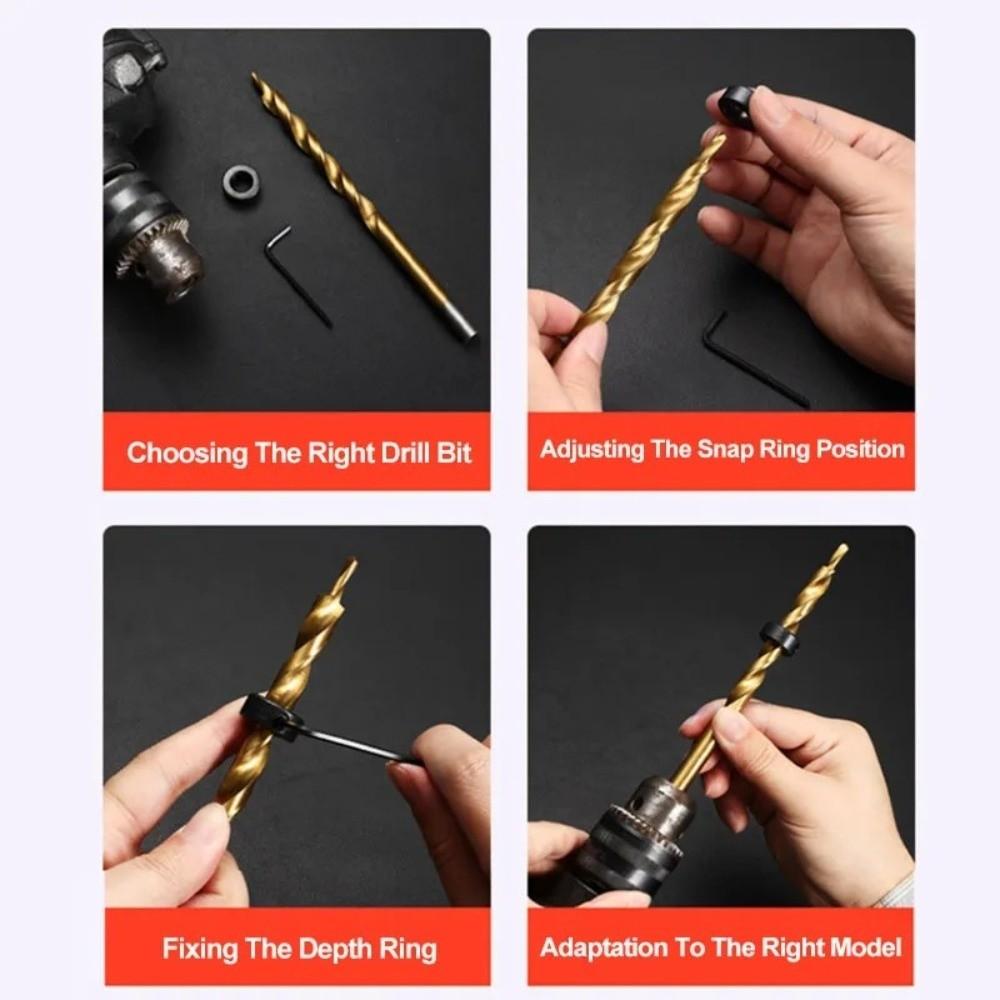

Instructions: 1. adjust the drill height, 2. Clip the board to be hit, 3. Put the drill into the hole and touch the wooden board. 4. Raise the drill bit again 5 mm(0.20 in) (remember not to start the electric drill against the wood), 5. Start the electric drill to reach a speed of more than 500 rpm, and the recommended speed is 1500 rpm 6. start feeding slowly, wait for the front fine drill to go in half or fully, then the feed can be accelerated

Package Contents: 1 * Drill Bit 1 * Stop Ring 1 * Small Hexagon Wrench

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
